Horizontal Cartoning Machine

The automatic horizontal cartoning machines from alpha-pack use the latest technology to reliably erect square cartons. In our machines, your products remain safe and protected in order to be forwarded into the shipping or the distribution deparment later. These automatic cartoning machines enable your product lines to keep running effectively and without any problems. Thanks to its small installation surface and its compact design, our cartoning machines can be integrated into practically every product line.

Technical Details

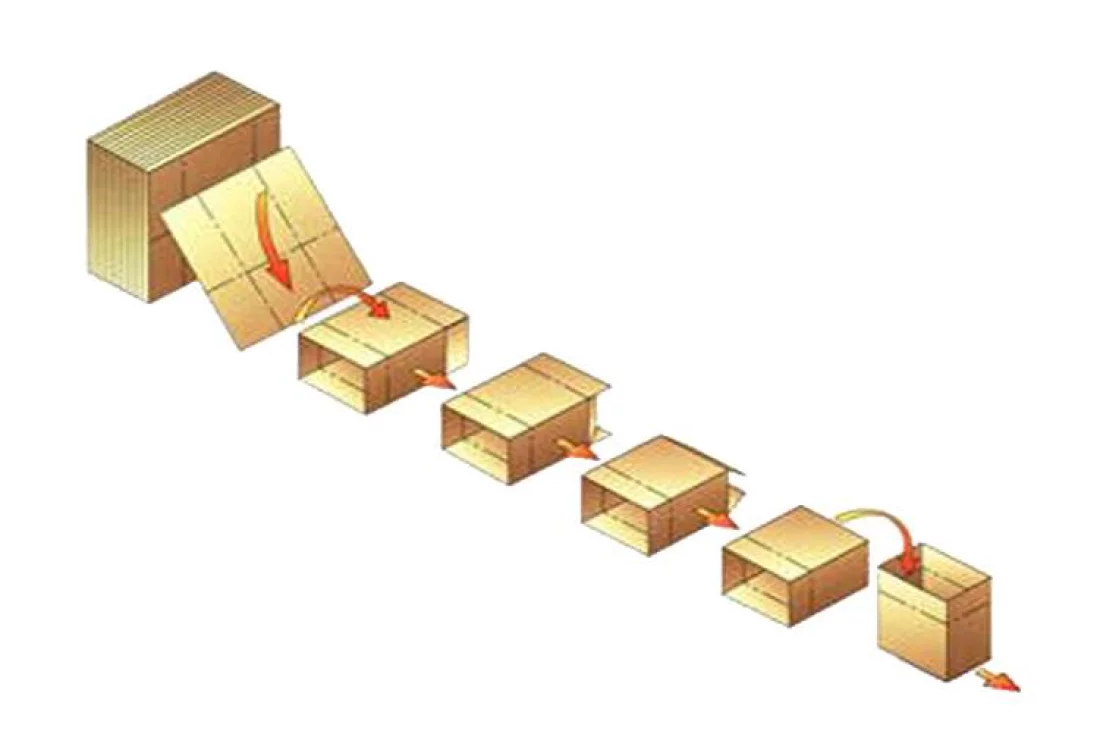

Working steps:

  1. Determine the exact case size in order to adjust the parameter of the case erector.
  2. Carefully place the cases in the input tray of the machine.
  3. The machine absorbs the cases one after another.
  4. The front and bottom side are unfolded, then the right and left side are unfolded.
  5. The bottom of the case is sealed.



👁 👁 👁 👁 👁

Different Models:

  • DEAPC-60PJ
    Model:DEAPC-60PJ
    Carton Dimensions:

    L: 70-200mm
    W: 30-150mm
    H: 50-80mm

    Carton Weight:300-350 g/m2
    Working Speed:40-60 Cartons/Min
    Machine Dimensions:L 3750mm × W 1500 mm × H 1800 mm
    Power Supply:220V / 50Hz
    Air Pressure:0.6-0.8 MPa
    Air Consumption:200-260 L/Min
    Type of carton closure:Hot glue
  • DEAPC-60CH
    Model:DEAPC-60CH
    Carton Dimensions:

    L: 70-250mm
    W: 30-150mm
    H: 20-50mm

    Carton Weight:300-350 g/m2
    Working Speed: 40-60 Cartons/Min
    Machine Dimensions:L 3750mm × W 1500 mm × H 1800 mm
    Power Supply:220V / 50Hz
    Air Pressure:0.6-0.8 MPa
    Air Consumption:200-260 L/Min
    Type of carton closure:Tug-In

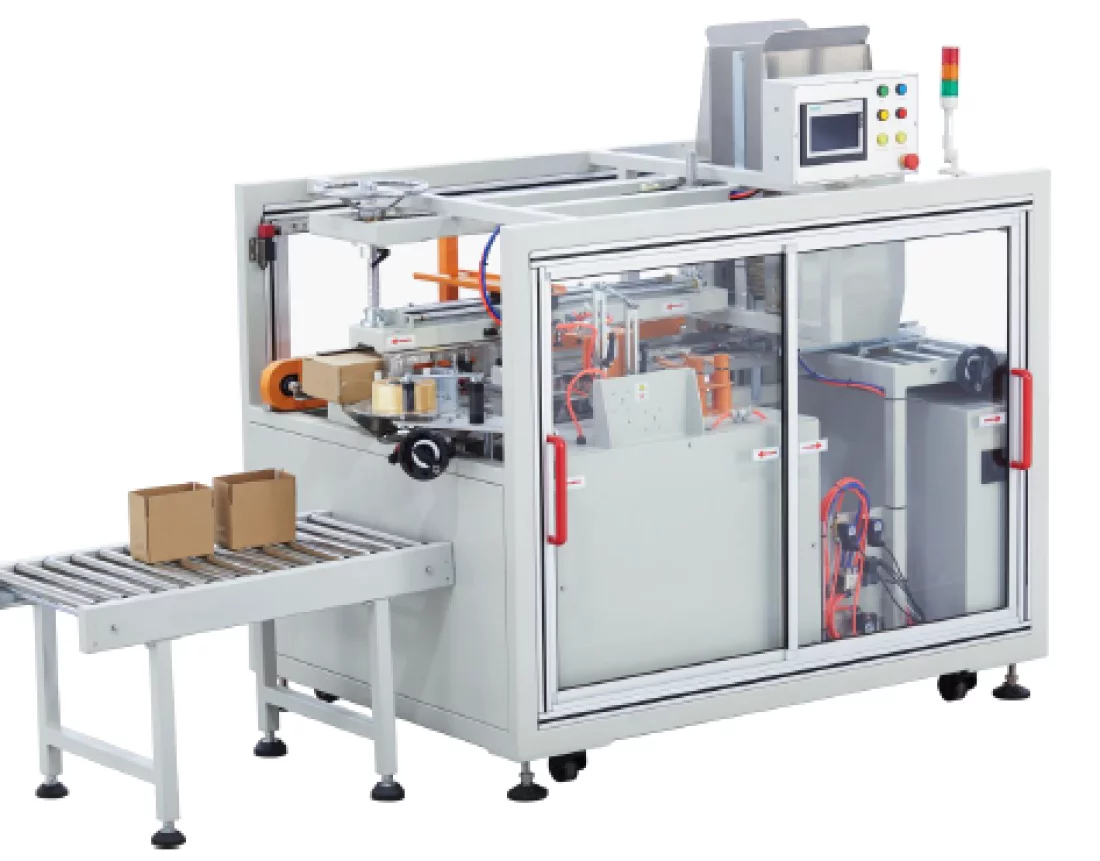

  • DEAPCE-30H20
    Model:DEAPCE-30H20
    Case Dimensions:

    L: 130-280mm
    W: 80-200mm
    H: 80-200mm

    Tape Width:48 mm x 60 mm x 72mm
    Working Speed:20 cases/min
    Machine Dimensions:L 1680 mm × W 1210 mm × H 1750 mm
    Power Supply:220V / 60Hz / 1 Phase
    Air Pressure:6-8kg/cm³, 300 NL/min
    Power:1000 W
    Weight (kg):
    		700

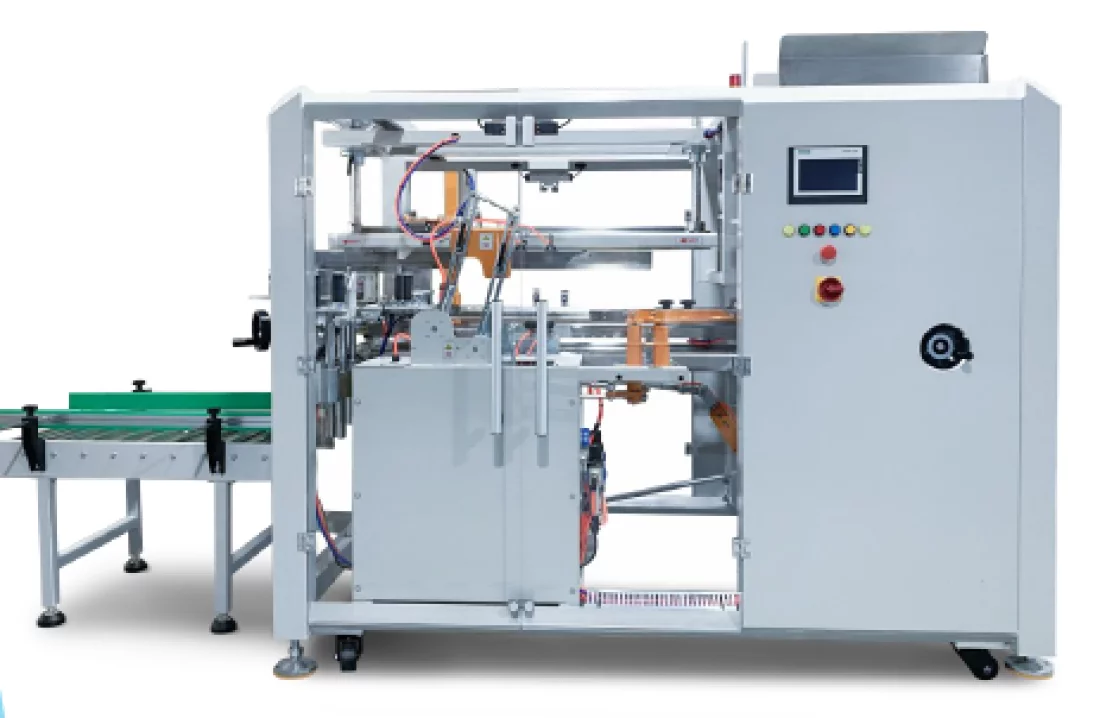

  • DEAPCE-40H30
    Model:DEAPCE-40H30
    Case

    L: 240-510mm
    B: 190-400mm
    H: 120-400mm

    Tape Width:48 mm x 60 mm x 75mm
    Working Speed: 30 cartons/min
    Capacity: 80 pcs (800mm)
    Machine Dimensions:L 2120 mm × W 1410 mm × H 1900 mm
    Power Supply:220V / 50-60Hz / 1 Phase
    Air Pressure:6kg/cm³, 300 NL/min
    Power:1000 W
    Weight (kg):
    		1000

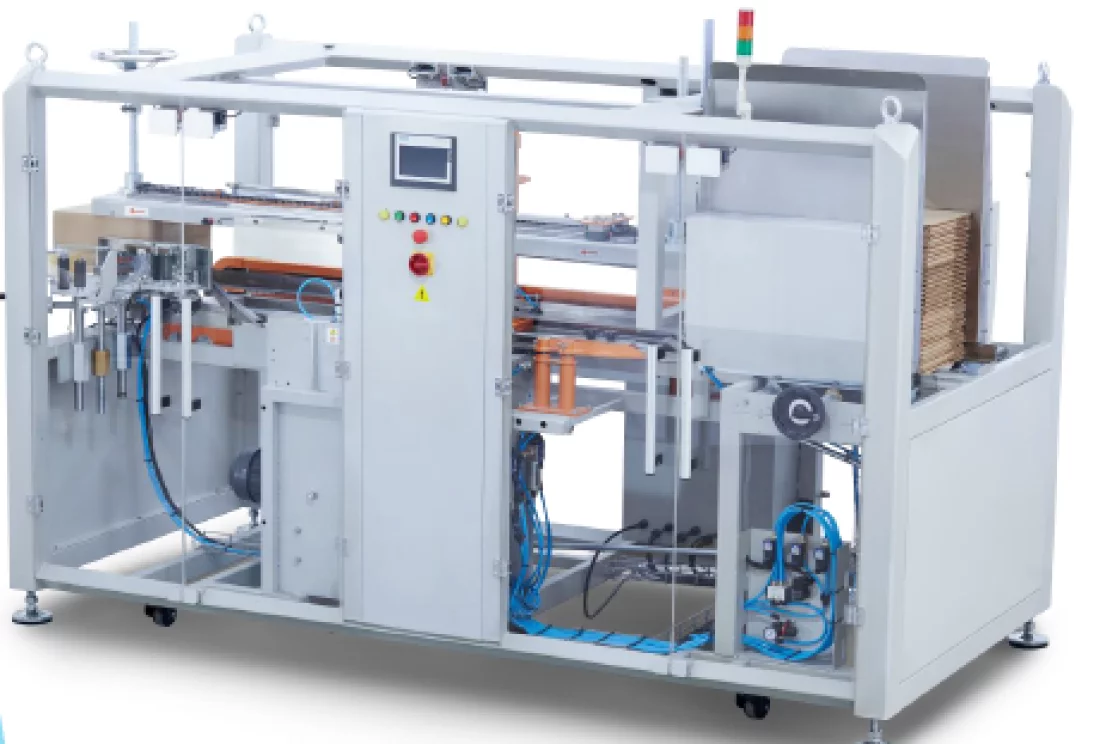

  • DEAPCE-40H50
    Model:DEAPCE-40H50
    Case Dimensions:

    L: 250-450mm
    W: 150-400mm
    H: 150-350mm

    Tape Width:48 mm x 60 mm x 75mm
    Working Speed:50 cases/min
    Capacity:80 pcs (800mm)
    Machine Dimensions:L 3120 mm × W 1410 mm × H 1900 mm
    Power Supply:220V / 50-60Hz / 1 Phase
    Air Pressure:6kg/cm³, 450 NL/min
    Power:1000 W
    Weight (kg):
    		1200

* It is not possible to combine all maximum dimensions.

 ** The output quantities per minute are average values, depending on film type, thickness, product dimensions and machine handling.
