Semi-Automatic Carton Sealers
Eco-Line

Our semi-automatic case sealers from the Eco line are the ideal, fast and economic solution for professional case sealing. Depending on the machine type, the case sealer is driven laterally. The case sealers can be adjusted individually to the respective case sizes. The shipping cases are closed by a machine adhesive tape which quickly and securely bonds the lower and upper flaps. The line guarantees ergonomic work (no constant lifting of heavy cases), clean and straight adhesive seams and a low-noise unwinding of the adhesive tape.

Technical Details


  • maintenance-friendly, low spares costs
  • adjustable tape tension
  • 2 tape dispenser (above / below)
  • quick format changes via handwheel or photoelectric technology
  • including product infeed and outfeed conveyor belt
  • adhesive tapes (50 mm width / optional 75mm)
  • conveyor belt direction (right / left)
  • height-adjustable wheeled supporting feet
  • case erector (KPM-116) available on demand
👁 👁 👁 👁 👁 👁 👁 👁 👁 👁 👁

Different Models:

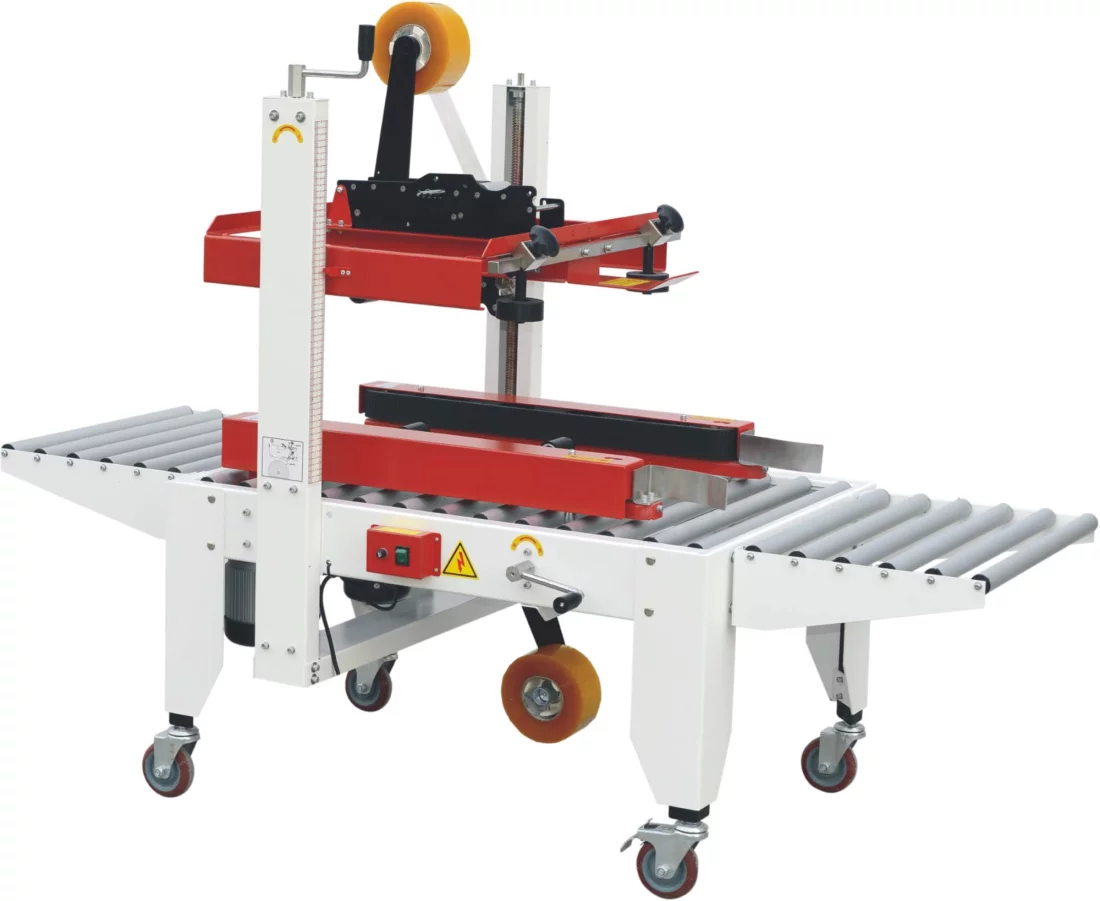

  • KPE-FA500

    Model:KPE-FA500
    Usable tapes:PP / PVC / Hotmelt
    Inner tape reel diameter:76 mm
    Minimum case dimensions (L x W x H):150 x 120 x 130 mm*
    Maximum case dimensions (L x W x H):∞ x 500 x 500 mm*
    Machine size (L x W x H):1000 x 900 x 1270 mm
    Maximum case weight (approx.):40 kg
    Arrangement of the drive belts: lateral
    Case format adaption:manual
    Transport speed:20 m / minute
    Supply voltage:230 V
    Air pressure (dry air):-
    Connected load (maximum):0,40 kW
    Machine weight (approx.):130 kg

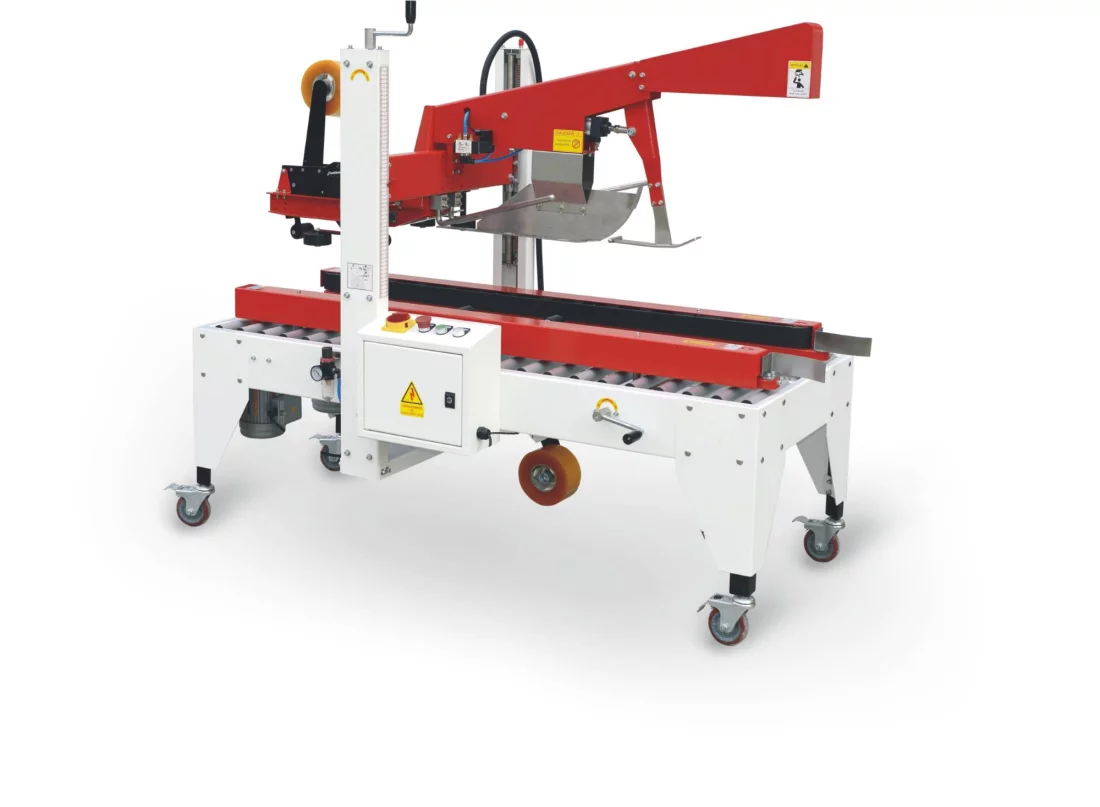

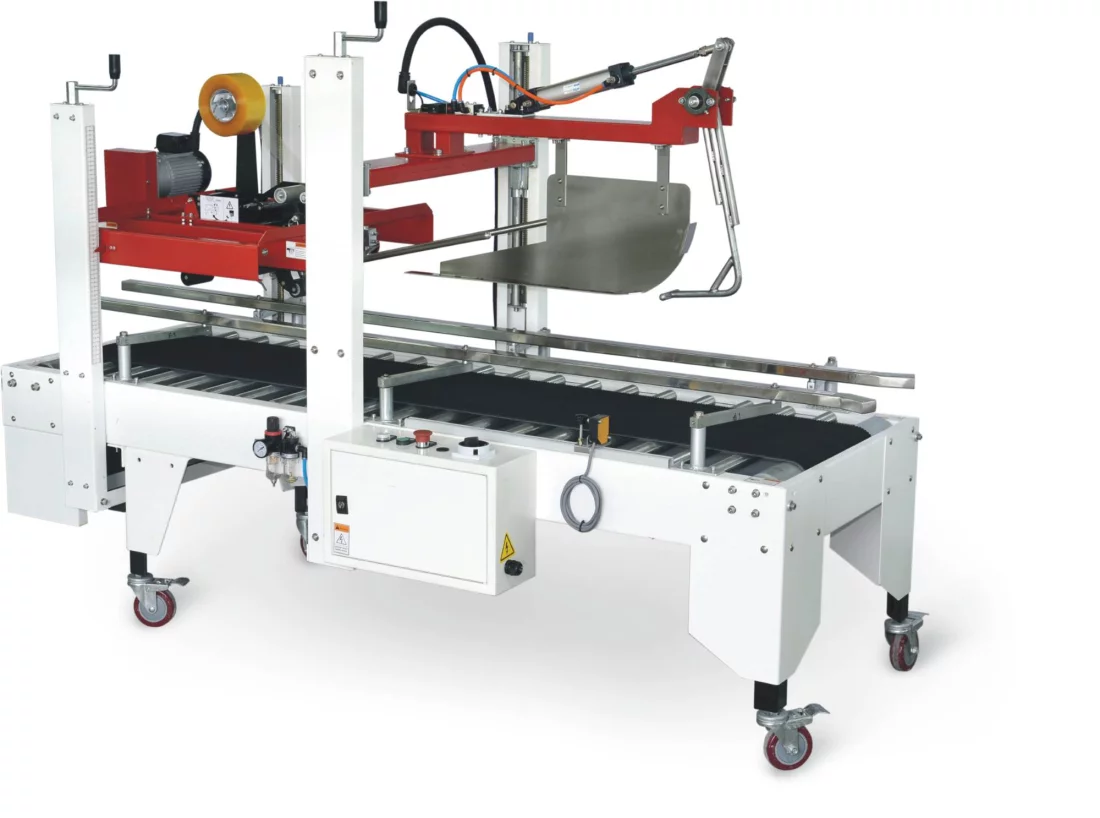

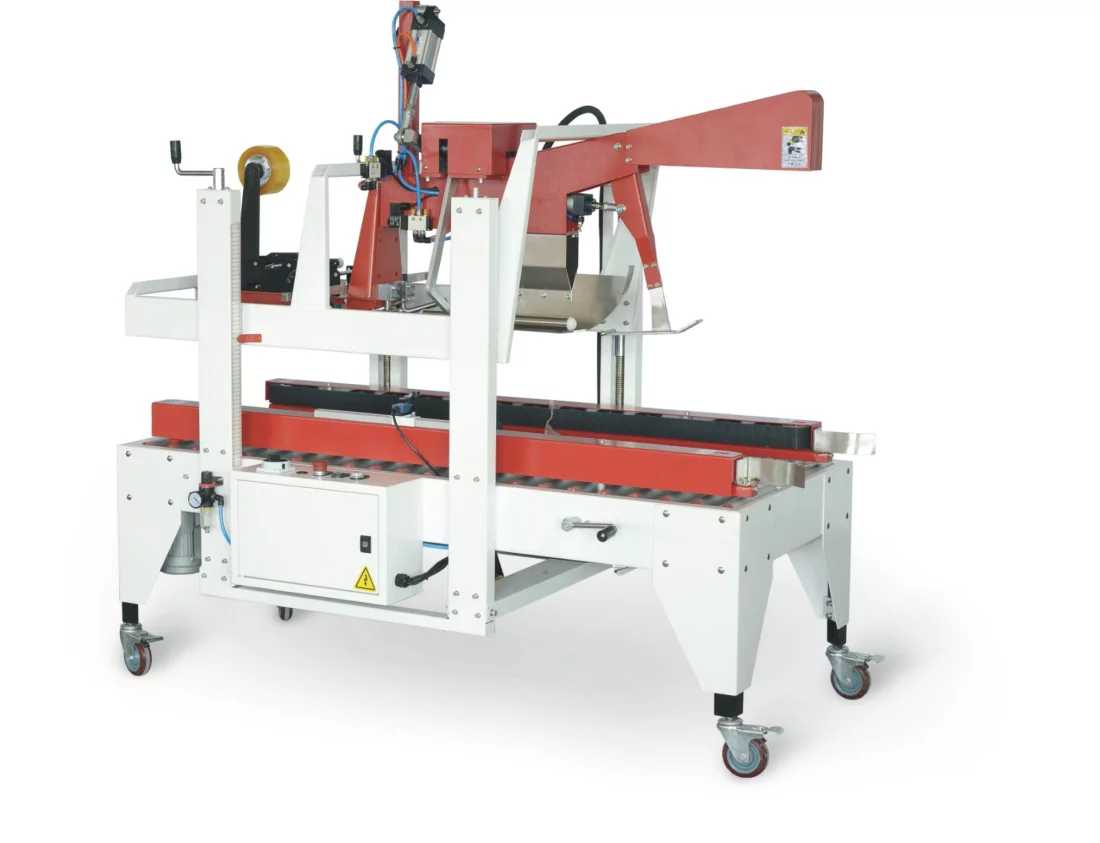

  • KPE-FC500

    Model:KPE-FC500
    Usable tape:PP / PVC / Hotmelt
    Inner tape reel diameter:76 mm
    Minimum case dimensions (L x W x H):200 x 120 x 120 mm*
    Maximum case dimensions (L x W x H):600 x 500 x 500 mm*
    Machine size (L x W x H):1000 x 900 x 1270 mm
    Maximum case weight (approx.):40 kg
    Arrangement of the drive belts: lateral
    Case format adaption:automatic
    Transport speed:20 m / minute
    Supply voltage:230 V
    Air pressure (dry air):6,0 bar
    Connected load (maximum):0,45 kW
    Machine weight (approx.):200 kg

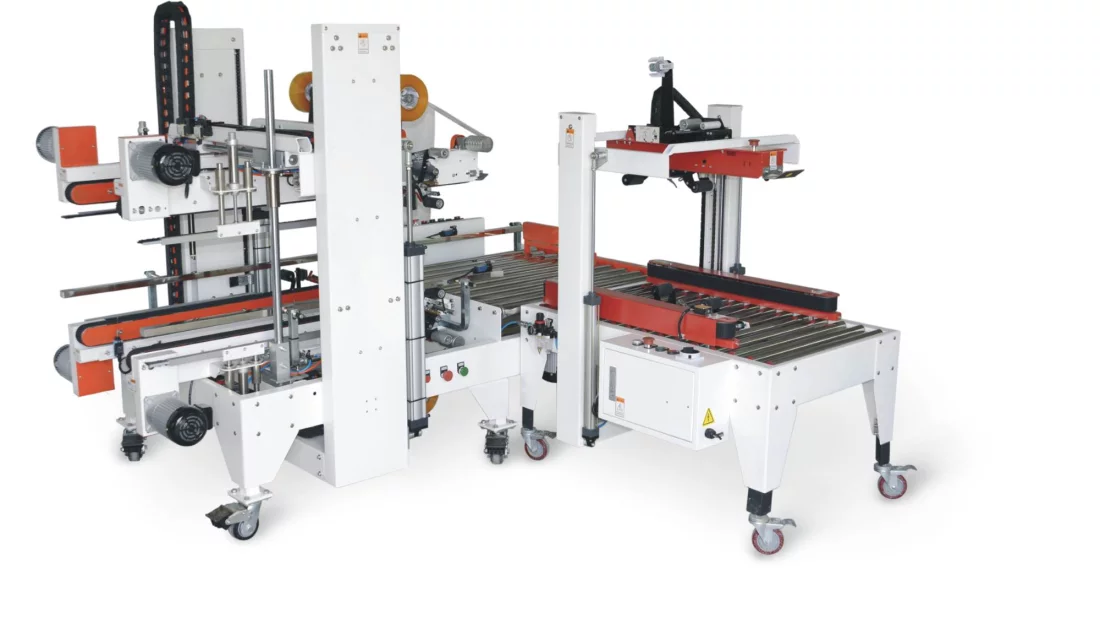

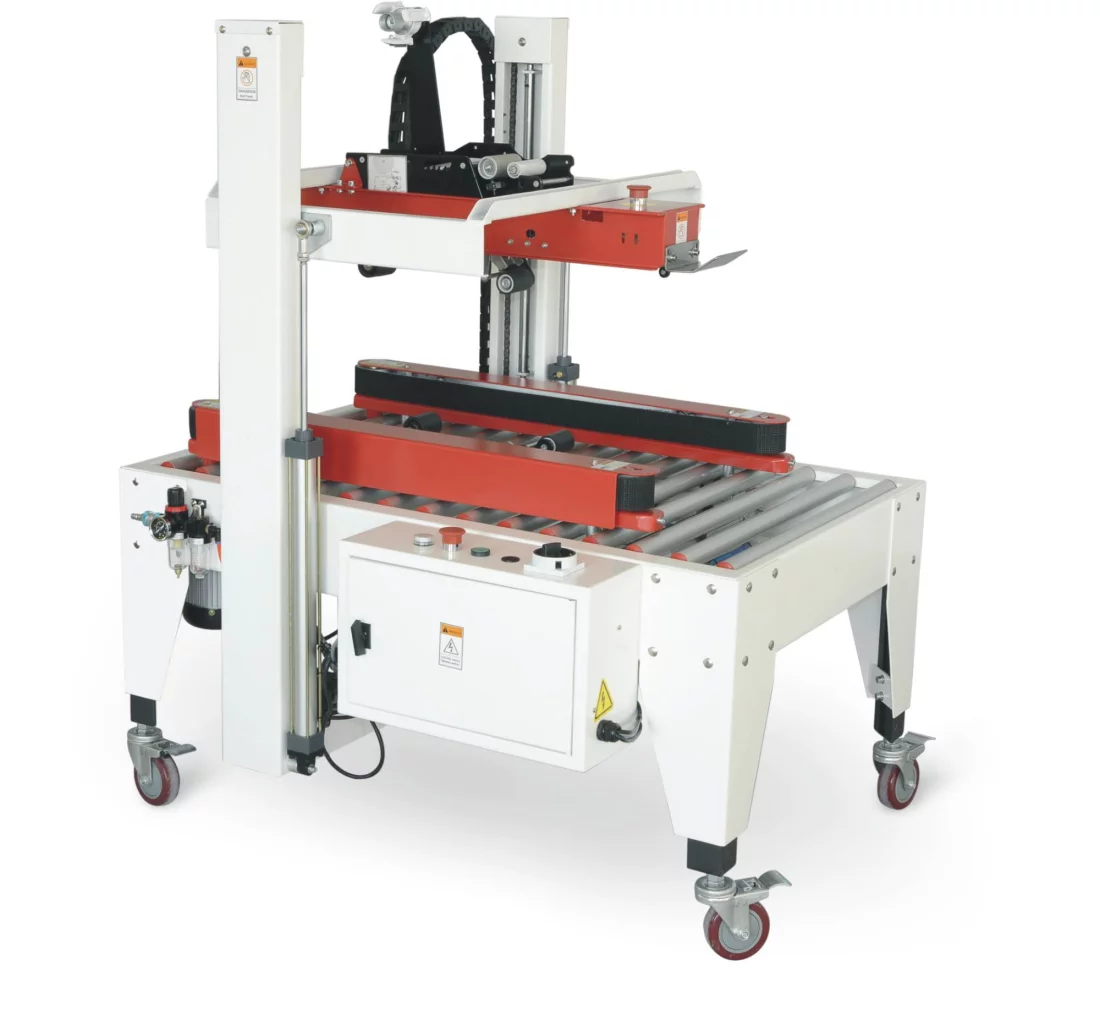

  • KPE-FE500

    Model:KPE-FE500
    Usable tape:PP / PVC / Hotmelt
    Inner tape reel diameter: 76 mm
    Minimum case dimensions (L x W x H):150 x 120 x 130 mm*
    Maximum case dimensions (L x W x H):∞ x 500 x 500 mm*
    Machine size (L x W x H):1000 x 900 x 1270 mm
    Maximum case weight (approx.): 40 kg
    Arrangement of drive belts: lateral
    Case format adaption:automatic
    Transport speed:20 m / minute
    Supply voltage:230 V
    Air pressure (dry air):6,0 bar
    Connected load (maximum):0,45 kW
    Machine weight (approx.):190 kg

* It is not possible to combine all maximum dimensions

** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling

Convince yourself of our Case Sealers and make an appointment today with our showroom or with one of our reference customers at +49 - 2235-79479-0 or at info_at_alphapack.de.
