Vertical Cartoning Machines

The DEAPC series cartoning machines from alpha-pack are suitable for erecting and filling all types of carton boxes. Our cartoning machines can be used in a variety of fields, such as the pharmaceutical industry, the cosmetics sector as well as for sweets and other food products.

👁

General information about our cartoning machines

easy-to-use, advanced HMI (Human Machine Interface) system, with touch screen and PLC programmable control.
automatic opening and filling of carton boxes
compact and high quality machine design
saving of packaging materials thanks to the automatic detection of carton boxes by the photo sensor
overload protection system for the main drive motor
double servo-driven positioning system, high-precision filling control, storable filling modes
integrated carton box storage with feeder: advanced automation and reduced labor intensity
stainless steel, compliant with food industry hygiene standards
very easy and completely residue-free cleaning
the protective cover of the machine ensures optimal working safety

Machine information:

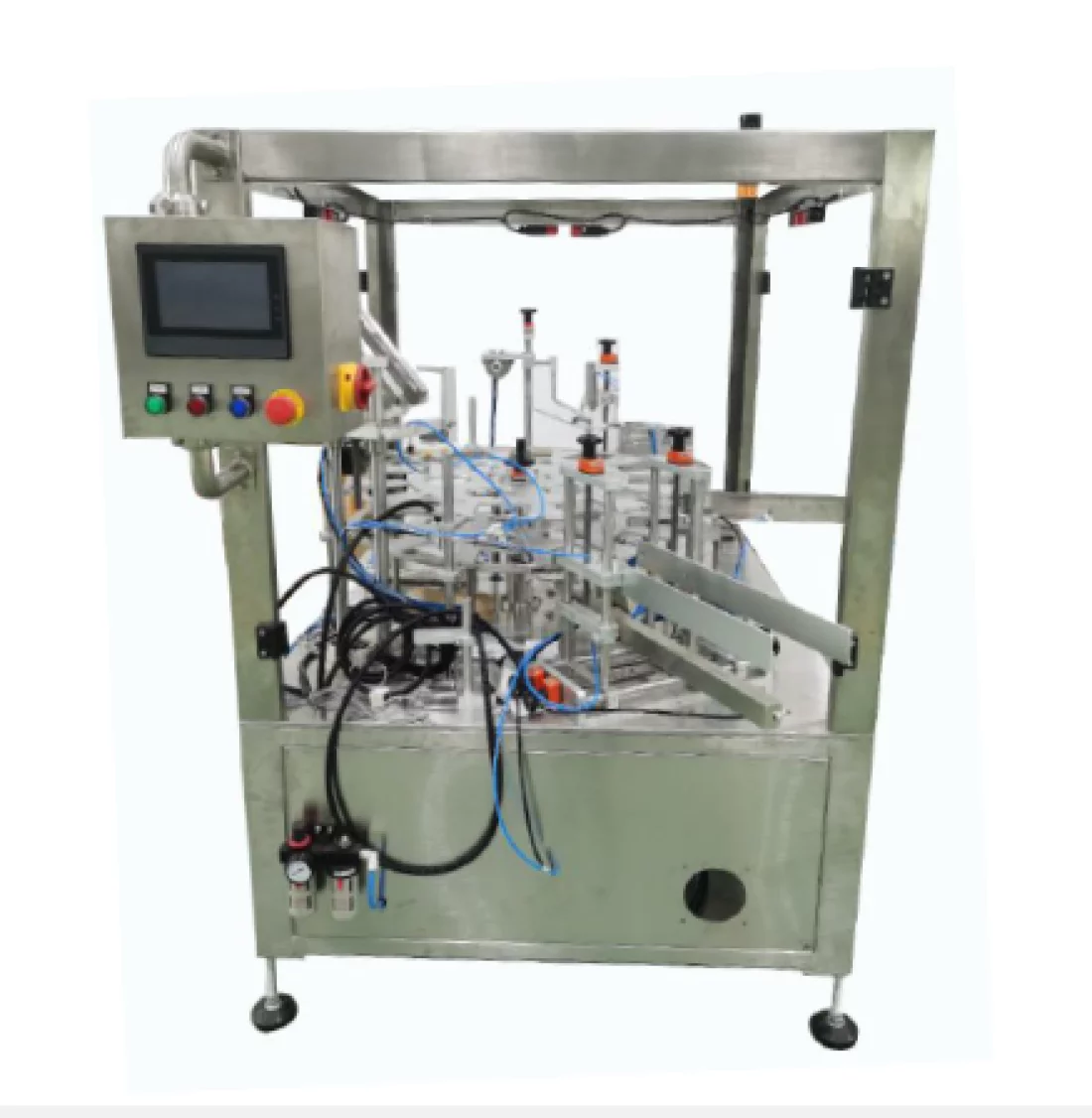

DEAPC-512V

Model:	DEAPC-512V (12 working stations) for small cartons
Power supply:	220V, 50HZ, single phase
Production capacity:	20-60 cartons/min
Max. carton dimensions (LxWxH):	240 x 120 x 120mm
Min. carton dimensions (LxWxH):	60 x 30 x 30 mm

DEAPC-200V

Model:	DEAPC-200V for medium and large cartons
Power supply:	AC380V 50HZ 5.5KW
Production capacity:	20-30 cartons/min
Gas consumption:	300-400 l/min
Applicable carton types:	350-450g/m2 (depending on the carton size)
Max. carton dimensions (LxWxH):	150 x 90 x 240mm
Min. carton dimensions (LxWxH):	70 x 30 x 150 mm

Make an appointment with us today in our showroom or with one of our reference customers at +49 - 2235-79479-0 or info_at_alphapack.de to convince yourself of the quality of our cartoning machines.
