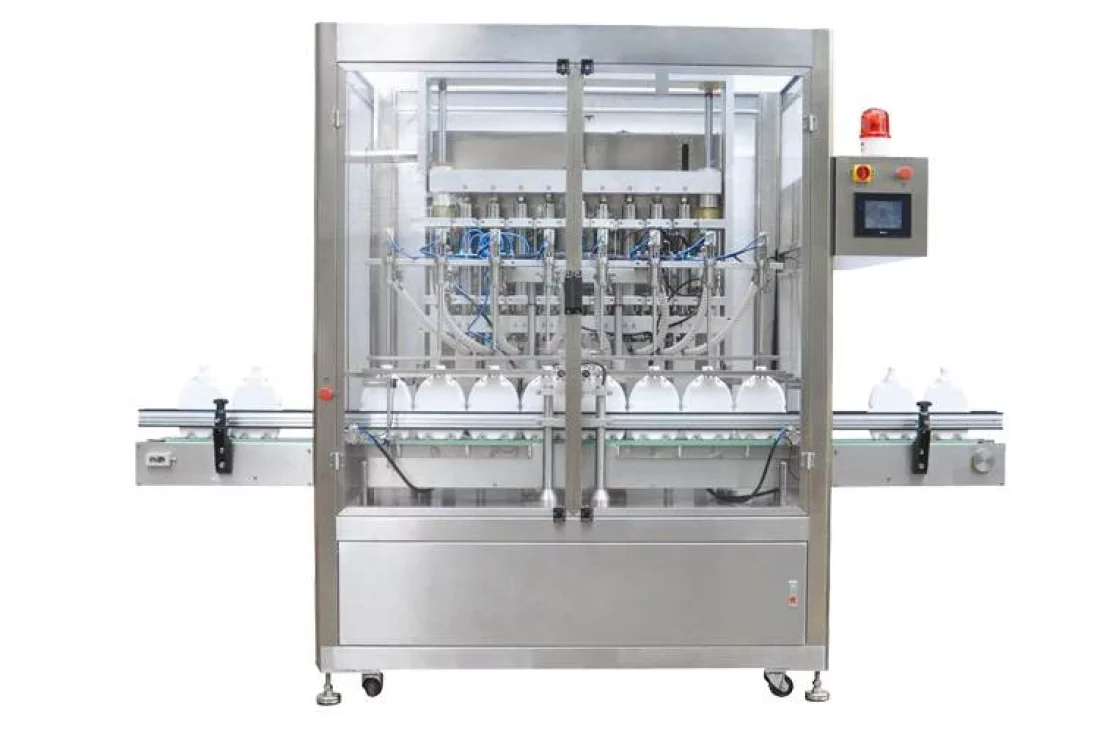

Bottle Filling Machines

The DEAFL-line from alpha-pack is applicable for every kind of glass and plastic bottles, filling them with aqueous up to medium-viscous liquids and pastes. Our bottle filling machines can be used in a variety of sectors such as pharmaceutical industry, cosmetics, beverages as well as other foodstuff.



👁 👁 👁 👁
Requests
Data Sheet

General Information about our filling machines:

  • easily operable and progressive human machine interface system with data storage and alarm in case of malfunction
  • doubly servo operated positioning system, high-precision filling control, storable filling types
  • installations avoiding frothing and dripping
  • stainless steel conform to the sanitary standards of the food industry
  • can be cleaned easily and completely residue-free
  • programmable logic controller combined with a touch screen control system
  • CE compliant

Optional available:

  • conveyor systems for in- and out-put
  • transparent safety cover for dust protection and safe working
  • bottle shape molds or drills for bottle filling

Filling Machines: Product Videos

Different Models:

  • DEAFL-840
    Model:DEAFL-840
    Filling quantity:100 - 5000 ml*
    Amount of filling nozzles:4
    Filling speed (bottles per minute):30**
    Air pressure:6 bar
    Supply voltage:220 V /1 Phase / 50-60 Hz;
  • DEAFL-860
    Model:DEAFL-860
    Filling quantity:100 - 5000 ml*
    Amount of filling nozzles:6
    Filling speed (bottles per minute):45**
    Air pressure:6 bar
    Supply voltage:220 V /1 Phase / 50-60 Hz;
  • DEAFL-880
    Model:DEAFL-880
    Filling quantity:100 - 5000 ml*
    Amount of filling nozzles:8
    Filling speed (bottles per minute):60**
    Air pressure:6 bar
    Supply voltage:220 V /1 Phase / 50-60 Hz;
  • DEAFLS-120
    Model:DEAFLS-120
    Filling quantity:10 - 120 ml*
    Amount of filling nozzles:8 / 12
    Filling speed (bottles per minute):30 - 60 / 60 - 100 (two trails)**
    Air pressure:4 - 6 bar
    Supply voltage:380 V,  50 / 60 Hz
  • DEAFLS-500
    Model:DEAFLS-500
    Filling quantity:50 - 500 ml*
    Amount of filling nozzles:8 / 12
    Filling speed (bottles per minute):30 - 60 / 60 - 100 (two trails)**
    Air pressure:4 - 6 bar
    Supply voltage:380 V,  50 / 60 Hz
  • DEAFLS-1000
    Model:DEAFLS-1000
    Filling quantity:100 - 1000 ml*
    Amount of filling nozzles:8 / 12
    Filling speed (bottles per minute):30 - 50 / 60 - 90 (two trails)**
    Air pressure:4 - 6 bar
    Supply voltage:380 V,  50 / 60 Hz
  • DEAFLS-2500
    Model:DEAFLS-2500
    Filling quantity:250 - 2500 ml*
    Amount of filling nozzles:8 / 12
    Filling speed (bottles per minute):30 - 50 / 60 - 80 (two trails)**
    Air pressure:4 - 6 bar
    Supply voltage:380 V,  50 / 60 Hz
  • DEAFLS-5000
    Model:DEAFLS-5000
    Filling quantity:500 - 5000 ml*
    Amount of filling nozzles:8 / 12
    Filling speed (bottles per minute):30 - 40 / 50 - 80 (two trails)**
    Air pressure:4 - 6 bar
    Supply voltage:380 V,  50 / 60 Hz

* It is not possible to combine all maximum dimensions

** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling

Convince yourself of our Bottle Filling Machines and make an appointment today with our showroom or with one of our reference customers at +49 - 2235-79479-0 or at info_at_alphapack.de.
