Clipping & Twist-tying Machines
Automatic

👁

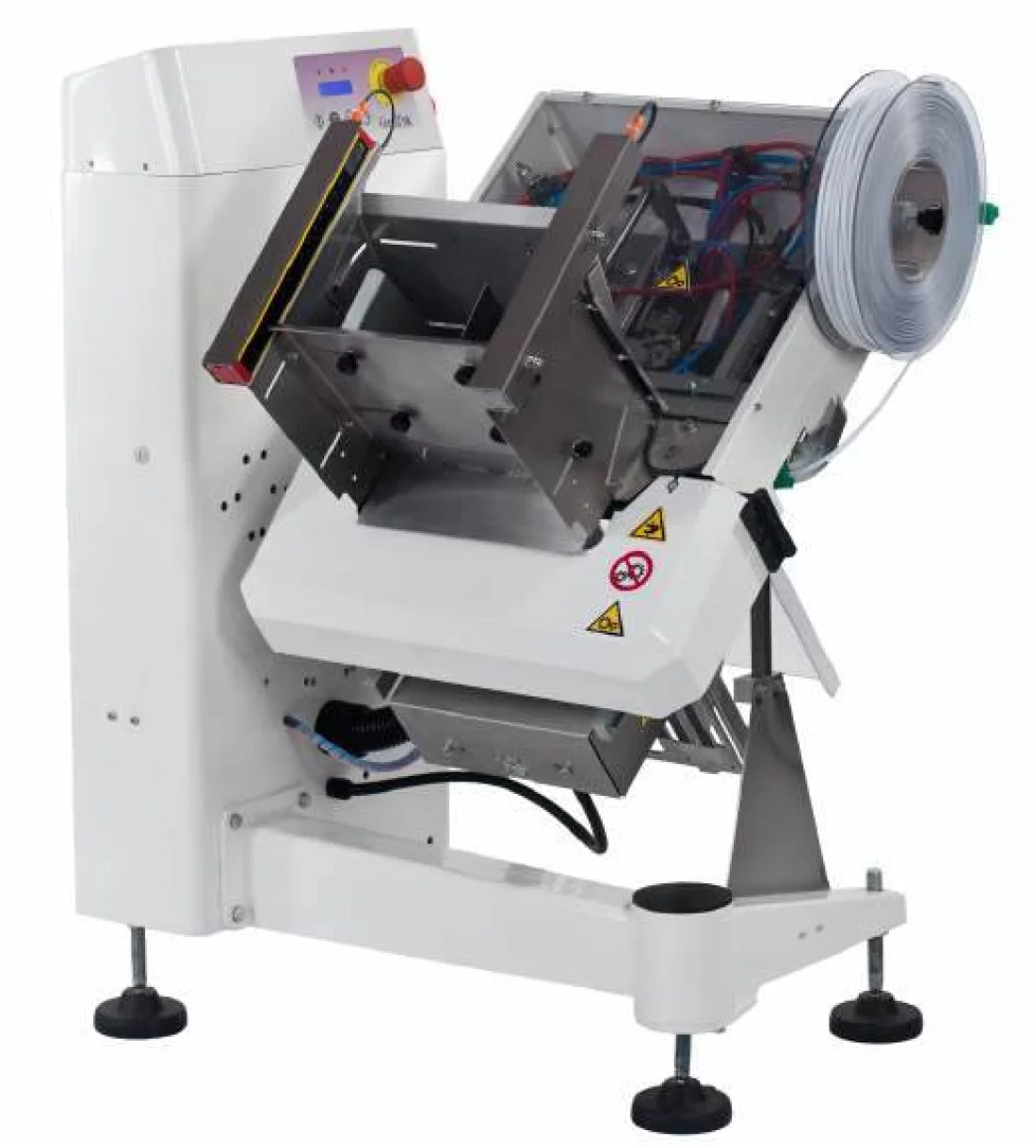

Compact, reliable and efficient: the DEA408IND

Our DEA408IND clipping machine can work alone or be combined with any type of vertical and horizontal flow-pack systems. Its innovative design, advanced mechanics and exceptional performance make it suitable for integration with the various packaging systems.

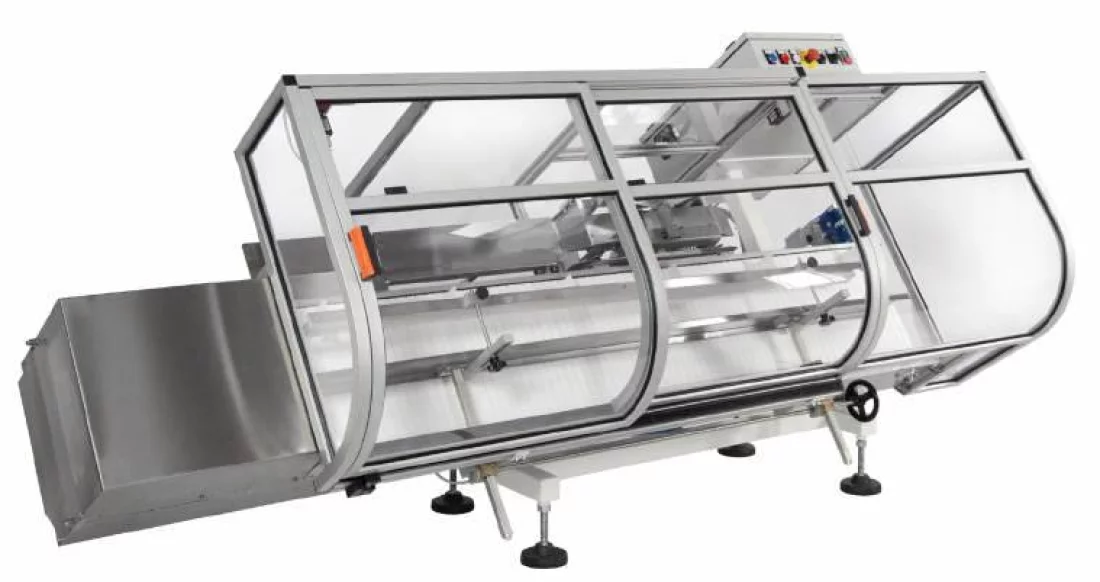

High speed packaging with the DEA480PL!

Our reliable high performance clipping machine DEA480PL is suitable for the use of several shifts per day. Thanks to the mechanical clipping movement and the highly efficient motors, the machine guarantees precision, high speeds and low consumption. The machine can be ideally integrated into vertical and horizontal form fill and seal machine series and it convinces with its excellent price-performance ratio.

👁

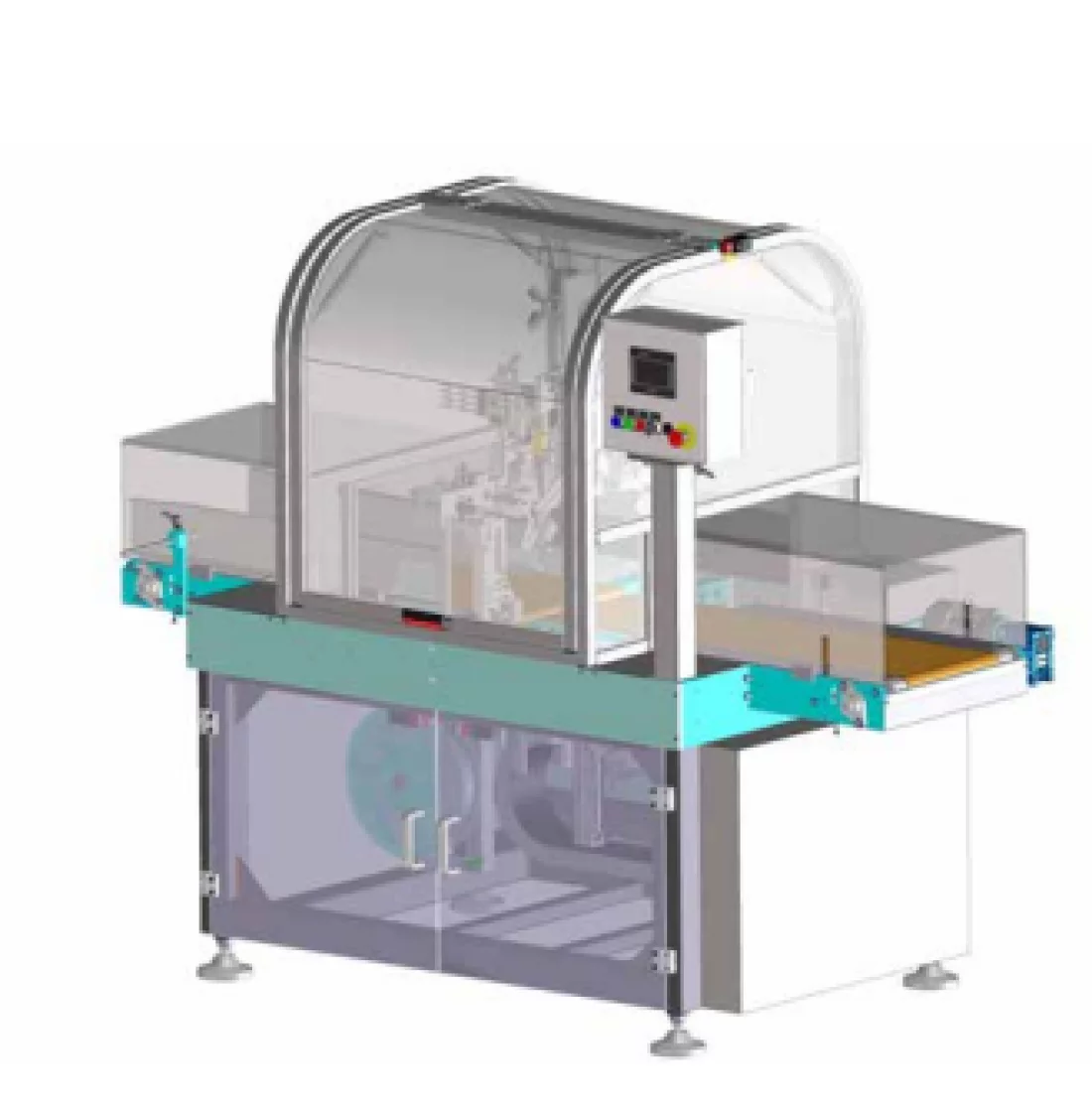

Pack safely with our DEA480PLH

The clipping machines of the DEA480PLH series apply a plastic wire ("twistband") as a freshness retainer on already filled food bags. This process is automatic by means of photosensor control and by continuous feeding of the machine.

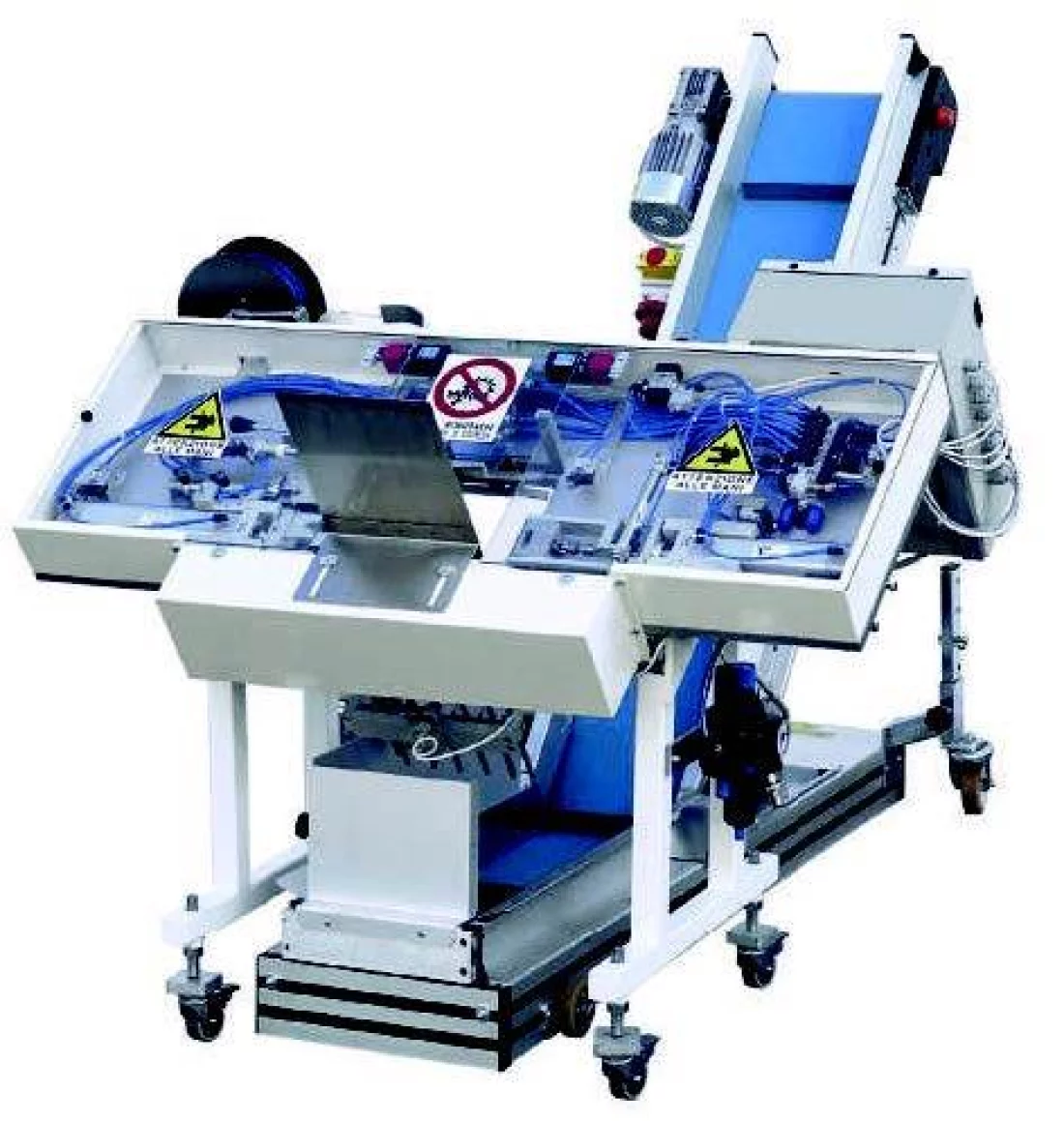

The automatic all-rounder: DETW250IND

The twist-tying machines of the DETW250IND series apply a plastic wire ("twist tape") as a freshness retainer onto already filled food bags. This process is automatic due to the continuous feeding of the machine and by means of photosensor control.

👁

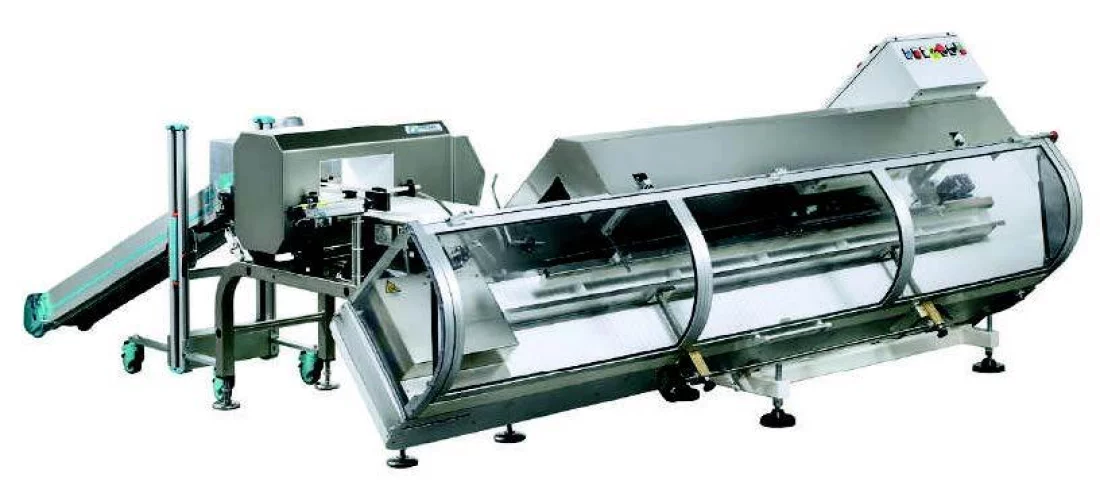

The DEA104TW - our "Lady of Speed"

The DEA104TW series twist-tying machines reach high speeds and can be combined with any vertical and horizontal packaging system. It also features a tilt angle that makes the packaging process even easier!

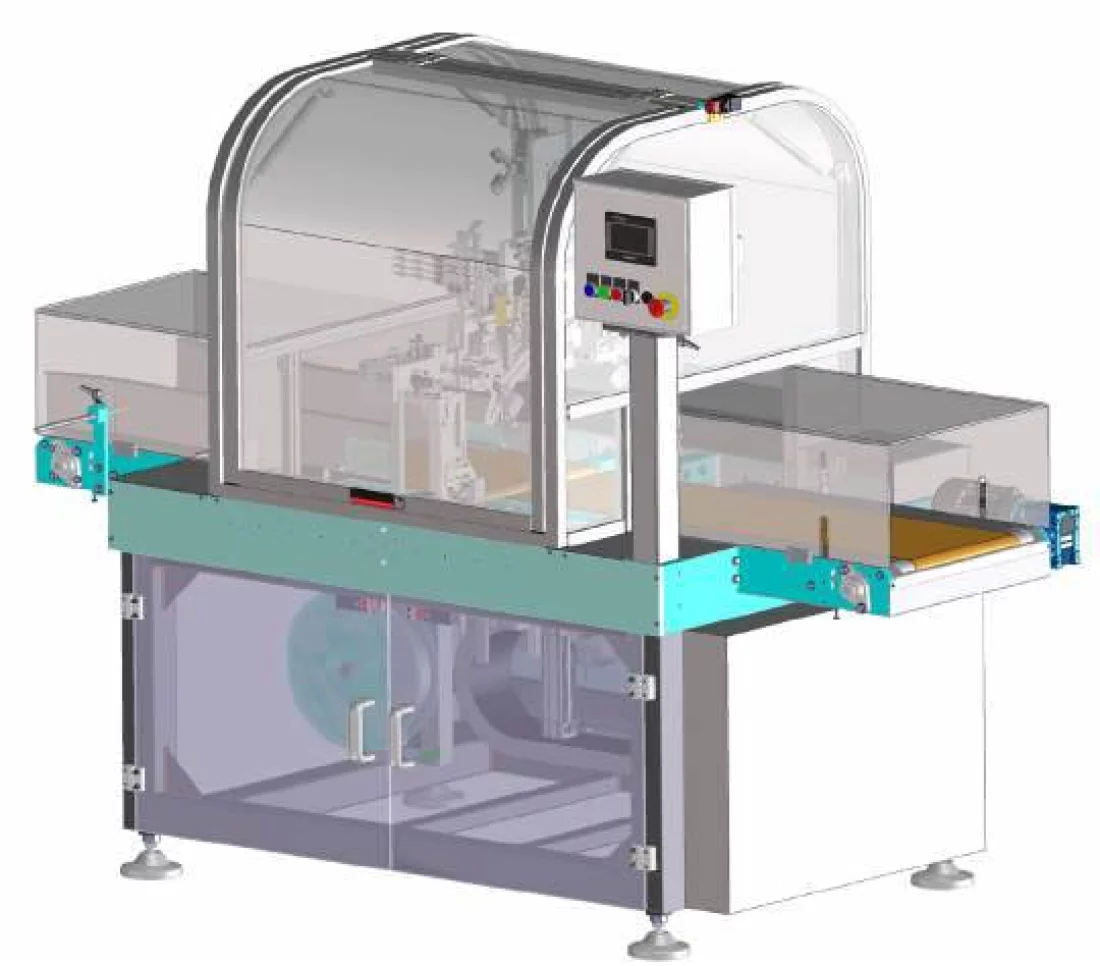

Packaging the smallest of products? No problem for the DEA104TWH!

The DEA104TWH machines are ideal for combination with flowpack machines or other horizontal feeding systems. Thanks to the retractable conveyor belts, the machine can safely pack even the smallest products and the integrated high-performance motor ensures high speeds.

👁

Machine videos:

Machine information:

DEA408IND

Model:	Clipping Machine DEA408IND
Closure Type:	Plastic Clipband
Closure Length (mm):	40/48
Electric Power:	230V 50/60Hz 1PH+N+PE 400V 50/60Hz 3PH+N+PE
Power Consumption:	0,2 kW
Air Pressure:	7 Bar
Air Consumption:	9 LT/cycle
Max. Bag Width (LxWxH):	450x240x110
Max. Bag Height (LxWxH):	450x200x150
Min. Bag Dimensions (LxWxH):	180x80x50
Production Capacity:	30 pcs/min
Packaging Dimensions (mm):	1300x1100x1450
Optional:	Embossing printer, inkjet printer, hot foil printer, HP printer

DEA480PL

Model:	Clipping Machine DEA480PL
Closure Type:	Plastic Clipband / Aluminiumband
Closure Length (mm):	48
Electric Power:	400V 50/60Hz 3PH+N+PE
Power Consumption:	0,5 kW
Air Pressure:	7 Bar
Air Consumption:	6,5 LT/cycle
Inclination Angle:	35°-55°
Max. Bag Width (LxWxH):	500x300x50
Max. Bag Height (LxWxH):	500x200x150
Min. Bag Dimensions (LxWxH):	180x80x50
Production Capacity:	40-45 pcs/min
Packaging Dimensions (mm):	3000x1500x1500
Optional:	Embossing printer, inkjet printer, hot foil printer, HP printer

DEA480PLH

Model:	Clipping Machine DEA480PLH
Closure Type:	Plastic Clipband / Aluminiumband
Closure Length (mm):	48
Electric Power:	400V 50/60Hz 3PH+N+PE
Power Consumption:	1 kW
Air Pressure:	7 Bar
Air Consumption:	10,5 LT/cycle
Max. Bag Width (LxWxH):	∞x430x25
Max. Bag Height (LxWxH):	∞x220x220
Min. Bag Dimensions (LxWxH):	180x80x50
Production Capacity:	30-35 pcs/min
Packaging Dimensions (mm):	2500x1200x1950
Optional:	Embossing printer, inkjet printer, hot foil printer, HP printer

DETW250IND

Model:	Twist-Tying Machine DETW250IND
Closure Type:	Plastic Twistband
Closure Length (mm):	100
Electric Power:	230V 50/60Hz 1PH+N+PE 400V 50/60Hz 3PH+N+PE
Power Consumption:	0,4 kW
Air Pressure:	7 Bar
Air Consumption:	6 LT/cycle
Max. Bag Width (LxWxH):	400x220x150
Max. Bag Height (LxWxH):	400x220x150
Min. Bag Dimensions (LxWxH):	180x80x50
Production Capacity:	25-30 pcs/min
Packaging Dimensions (mm):	2000x800x1300

DEA104TW

Model:	Twist-Tying Machine DEA104TW
Closure Type:	Plastic Twistband
Closure Length (mm):	100
Electric Power:	400V 50/60Hz 3PH+N+PE
Power Consumption:	0,5 kW
Air Pressure:	7 Bar
Air Consumption:	6,5 LT/Zyklus
Inclination Angle:	35°-55°
Max. Bag Width (LxWxH):	500x300x50
Max. Bag Height (LxWxH):	500x200x150
Min. Bag Dimensions (LxWxH):	180x80x50
Production Capacity:	40-45 pcs/min
Packaging Dimensions (mm):	3000x1500x1500
Optional:	Embossing printer, inkjet printer, hot foil printer, HP printer

DEA104TWH

Model:	Twist-Tying Machine DEA104TWH
Closure Type:	Plastic Twistband
Closure Length (mm):	100
Electric Power:	400V 50/60Hz 3PH+N+PE
Power Consumption:	1 kW
Air Pressure:	7 Bar
Air Consumption:	9,5 LT/cycle
Max. Bag Width (LxWxH):	∞x430x25
Max. Bag Height (LxWxH):	∞x220x220
Min. Bag Dimensions (LxWxH):	180x80x50
Production Capacity:	30 pcs/min
Packaging Dimensions (mm):	2500x1200x1950
Optional:	Embossing printer, inkjet printer, hot foil printer, HP printer
