Top & Bottom Labeler

With Nero-line automatic labeling machines by tbs-pack, you can label flat products either from one side or simultaneously on both sides via top and bottom labeling.

Requests

Data Sheet

Technical Details:

equipped with two labeling heads - one for top labeling, the other for bottom labeling (depending on the model)
stainless high-grade steel construction
programmable logic controller combined with a touch screen
highly accurate labeling, ±1 mm tolerance
servo-controlled labeling head; labeling speed is automatically synchronized with product throughput speed

👁

Labeling of small cans

Labeling of nut corner packages

Labeling Machine: Product Video - Labeling of pasta packages

Labeling Machine + DPM-8BT: Product Video - Petfood

Labeling Machine: Product Video - Labeling of bags

Labeling Machine: Product Video - Labeling of picture frames

Different Models:

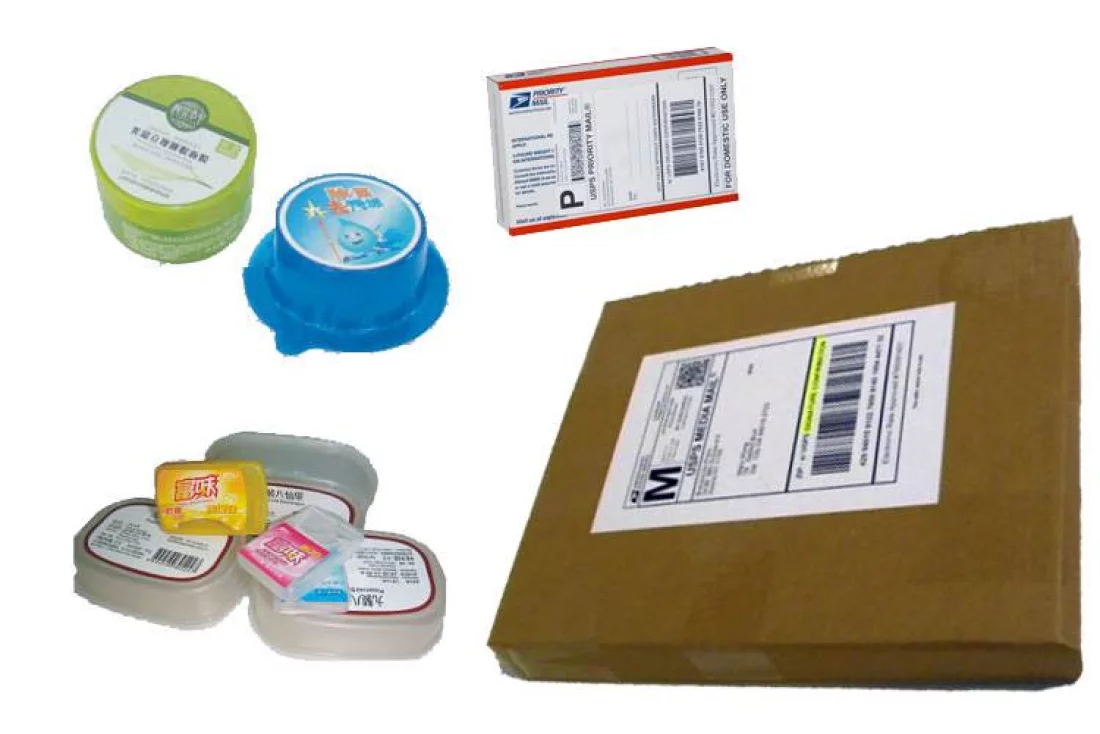

ALB-210

Model:	ALB-210
Labeling:	unilateral
Label height / width:	A: 10 - 110 mm; C: 10 - 170mm*
Label length:	10 - 250 mm*
Product diameter / width:	15 - 160 mm
Labeling speed:	12 - 35 m / min**
Reel: inner / outer diameter:	between 76 mm / 360 mm
Machine dimensions (L x W x H):	1450 mm x 700 mm x 1550 mm

ALB-210A

Model:	ALB-210A
Labeling:	unilateral
Label height / width:	A: 10 - 110 mm; C: 10 - 170mm*
Label length:	10 - 250 mm*
Product diameter / width:	15 - 160 mm
Labeling speed:	12 - 35 m / min**
Reel: inner / outer diameter:	between 76 mm / 360 mm
Machine dimensions (L x W x H):	1450 mm x 700 mm x 1550 mm

ALB-220

Model:	ALB-220
Labeling:	simultaneous bilateral
Label height / width:	A: 10 - 110 mm; C: 10 - 170mm*
Label length:	10 - 250 mm*
Product diameter / width:	15 - 160 mm
Labeling speed:	12 - 35 m / min**
Reel: inner / outer diameter:	between 76 mm / 360 mm
Machine dimensions (L x W x H):	1450 mm x 700 mm x 1550 mm

ALB-620R

Model:	ALB-620R
Labeling:	simultaneous bilateral
Label height / width:	A: 10 - 110 mm; C: 10 - 170mm*
Label length:	10 - 250 mm*
Product diameter / width:	30 - 100 mm
Labeling speed:	12 - 25 m / min**
Reel: inner / outer diameter:	between 76 mm / 360 mm
Machine dimensions (L x W x H):	2570 mm x 1400 mm x 1665 mm

ALB-625

Model:	ALB-625
Labeling:	simultaneous bilateral
Label height / width:	A: 10 - 110 mm; C: 10 - 170mm*
Label length:	10 - 250 mm*
Product diameter / width:	30 - 100 mm
Labeling speed:	12 - 25 m / min**
Reel: inner / outer diameter:	between 76 mm / 360 mm
Machine dimensions (L x W x H):	2570 mm x 1400 mm x 1665 mm

* It is not possible to combine all maximum dimensions

** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling
