Sleeve-Steam-Tunnels

Our stainless Steel Steam Tunnels of the DESPC-1500 and DESPC-2500 line are exceedingly user- and maintenance-friendly, waterproof and easy to clean. They are applicable for the efficient shrinking of full-body shrink tapes on virtually any container type with practically any kind of shrink film material. The low-pressure steam drum evenly distributes the steam in the tunnel through the integrated tubular steel construction. In each section of the tunnel there are steam steel pipes which are adjustable in height as well as in steam output. Both, the tunnel body and the water collecting plate for condensation water are made of 304 stainless steel.

Technical Details:

waterproof
consistent steam distribution due to low-pressure steam drum
height-adjustable steam steel pipes
adjustable steam output
optionally combinable with conveyor belt and sleeve labeling machine

👁

Dampftunnel mit Sleeve-Label-Automat: Etikettierung von Flaschen

Different Models:

DESPC-1500

Model DESPC-1500
Tunnel length: 1500mm
Steam tubes: 6 tubes in 2 sections
Maximum tunnel height: 400 mm
Maximum tunnel width: 120 mm
Supply voltage: 220V, 3 phases
Machine weight: 205 kg
Steam consumption: 21 kg/h
DESPC-2500

Model DESPC-2500
Tunnel length: 2500 mm
Steam tubes: 6 tubes in 3 sections
Maximum tunnel height: 400 mm
Maximum tunnel width: 120 mm
Supply voltage: 220 V, 3 phases
Machine weight: 455 kg
Steam consumption: 27 kg/h

Model	DESPC-1500
Tunnel length:	1500mm
Steam tubes:	6 tubes in 2 sections
Maximum tunnel height:	400 mm
Maximum tunnel width:	120 mm
Supply voltage:	220V, 3 phases
Machine weight:	205 kg
Steam consumption:	21 kg/h

Model	DESPC-2500
Tunnel length:	2500 mm
Steam tubes:	6 tubes in 3 sections
Maximum tunnel height:	400 mm
Maximum tunnel width:	120 mm
Supply voltage:	220 V, 3 phases
Machine weight:	455 kg
Steam consumption:	27 kg/h

Optional Accessories:

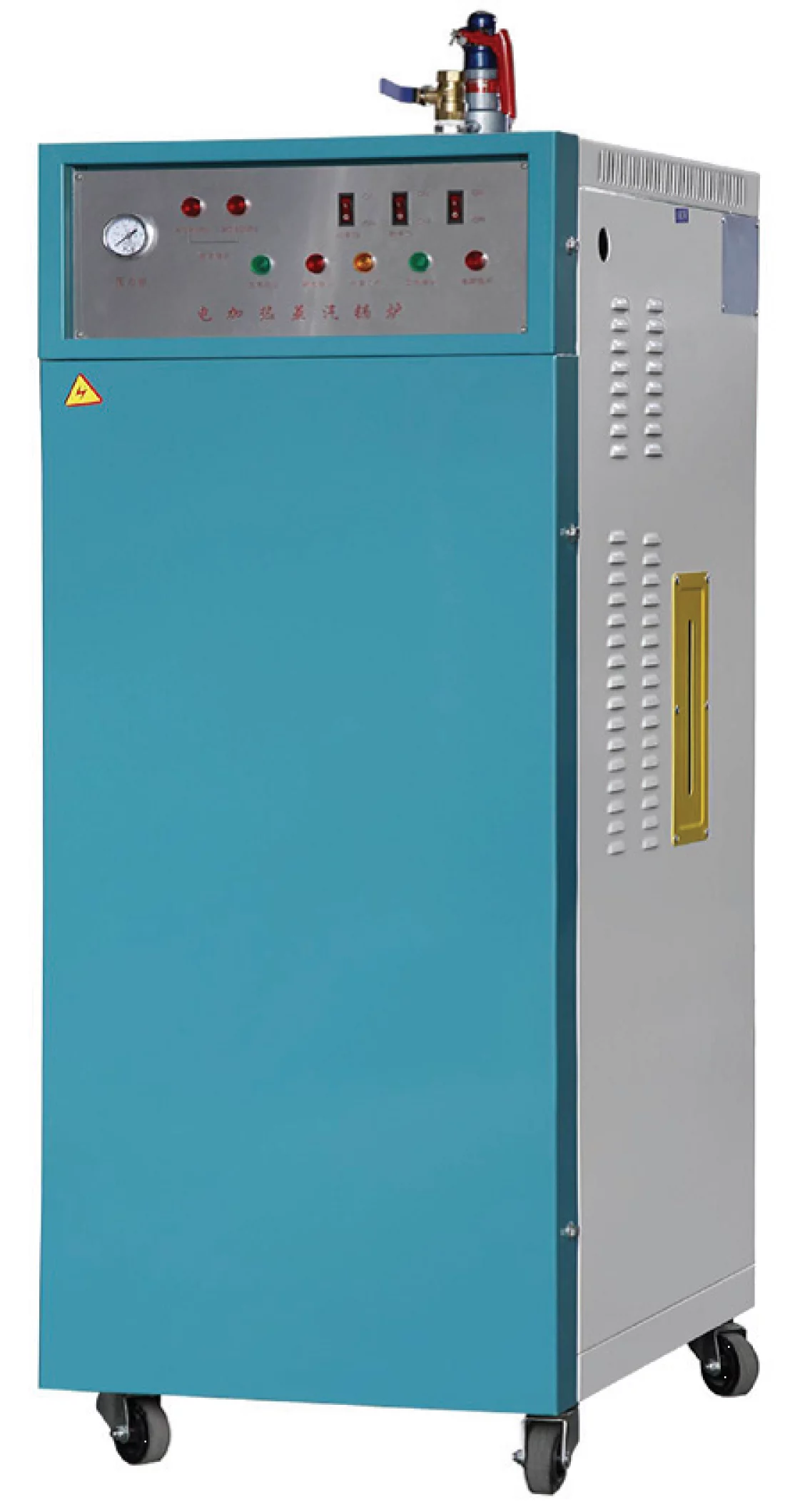

Steam Generator:

Our electric steam generators DESTG-24 and DESTG-36 consist of a high-pressure chamber filled with water and heated by electric underwater heaters. The machine additionally features automatic controls to maintain the set operating temperature and water level.

Safety features: automatic low water shutoff, dual pressure controls. safety valve and visible water level gauge.

👁

Convince yourself of our Sleeve Steam Tunnels and make an appointment today with our showroom or with one of our reference customers at +49 - 2235-79479-0 or at info_at_alphapack.de.
