Case sealing – simple and time-saving

The fully automatic case sealer is the perfect solution for professional case sealing with high throughput. This model is driven from the side, which ensures optimum case guidance. The case sealer automatically adapts to the respective case formats thanks to automatic format adjustment. The cartons are sealed using machine adhesive tape, which quickly and securely bonds the bottom and top flaps of the shipping cartons. This machine series guarantees ergonomic working (no constant lifting of heavy cartons), clean and straight adhesive seams and low-noise unwinding of the adhesive tape.

👁

Advantages of the automatic case sealer

Fully automatic format adjustment: No manual changeover when changing cartons
High productivity: Up to 20 cartons per minute
Side drive belts: Optimal carton guidance for different formats
Double closure: Simultaneous sealing of the upper and lower carton flaps
Robust industrial quality: Low maintenance and durable for continuous use
Flexible integration: Easy integration into existing packaging lines
Ergonomic design: Reduced physical strain on operating personnel

👁

Technical details

Maintenance-friendly design with low spare part costs
Adjustable adhesive tape tension for optimum sealing
2 adhesive tape dispensers (top/bottom)
Automatic format change thanks to precise light barrier technology
Includes product infeed and outfeed roller conveyor for seamless material flow
Processing of self-adhesive tapes with a width of 50 mm (optional 75 mm)
Selectable conveyor belt direction (right/left)
Height-adjustable feet on castors for flexible positioning
Case erector (PM-116) available as an extension option

Automatic case closing for industrial applications

Flexible solutions for small and large cases

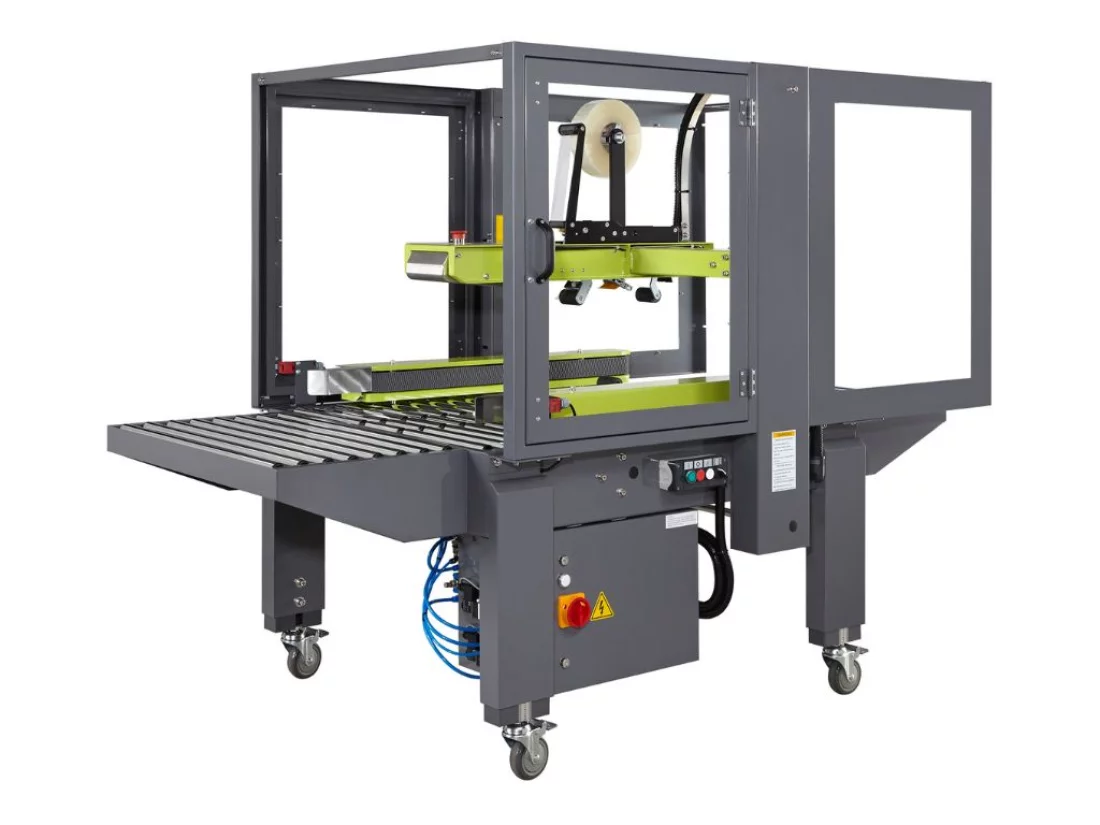

Technical Data KPM-105SDR

Model:	KPM-105SDR
Usable tape:	PP / PVC / Hotmelt
Inner tape reel diameter:	76 mm
Minimum case dimensions (Wx H):	110 x 120 mm*
Maximum case dimensions (W x H):	600 x 600 mm*
Machine size (L x W x H):	1860 x 1030 x 1550 mm
Maximum case weight (approx.):	40 kg
Arrangement of drive belts:	lateral
Case format adaption:	automatic
Transport speed:	23 m / minute
Maximum reel height:	880 mm
Supply voltage:	230 V
Air pressure (dry air):	6,0 bar
Connected load (maximum):	0,40 kW
Machine weight (approx.):	195 kg
Packing capacity:	up to 20 pieces / minute**

Buy automatic case sealers – Enquire now

Are you interested in our fully automatic case sealers or would you like a no-obligation consultation from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable packaging material for automatic case sealers

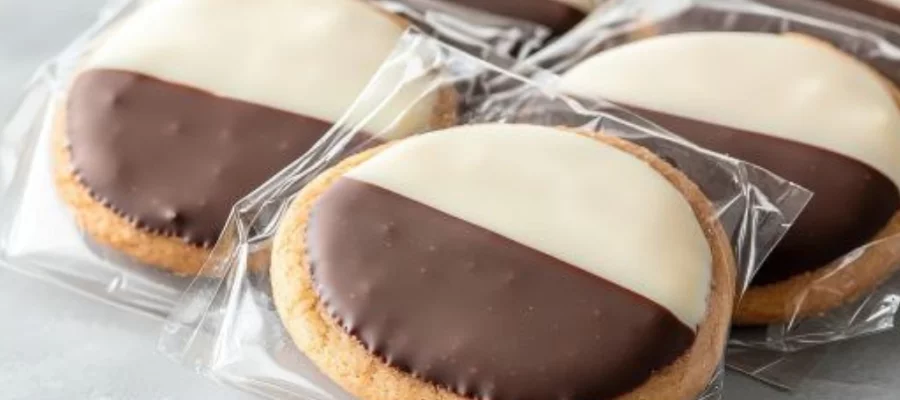

Verpackung von Süßigkeiten mit OPP-Siegelfolie

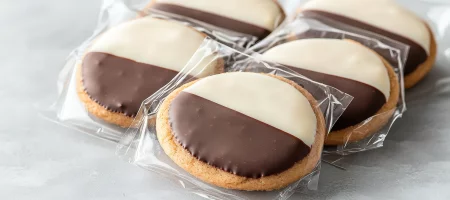

OPP / CPP Sealing Film

Our sealing film is food-safe and environmentally friendly. It is available as OPP film and CPP film and is ideal for hygienic food packaging. Available as flat film, half-tube film, and also as bags.

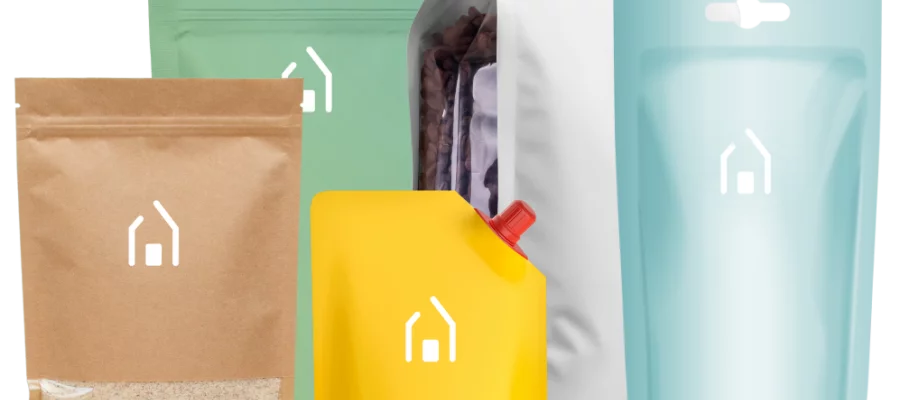

Eine große Auswahl an verschiedenen Standbodenbeuteln

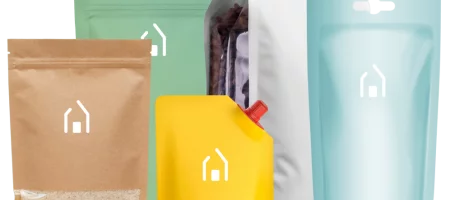

Stand-Up Pouches / Doypack-Bags
