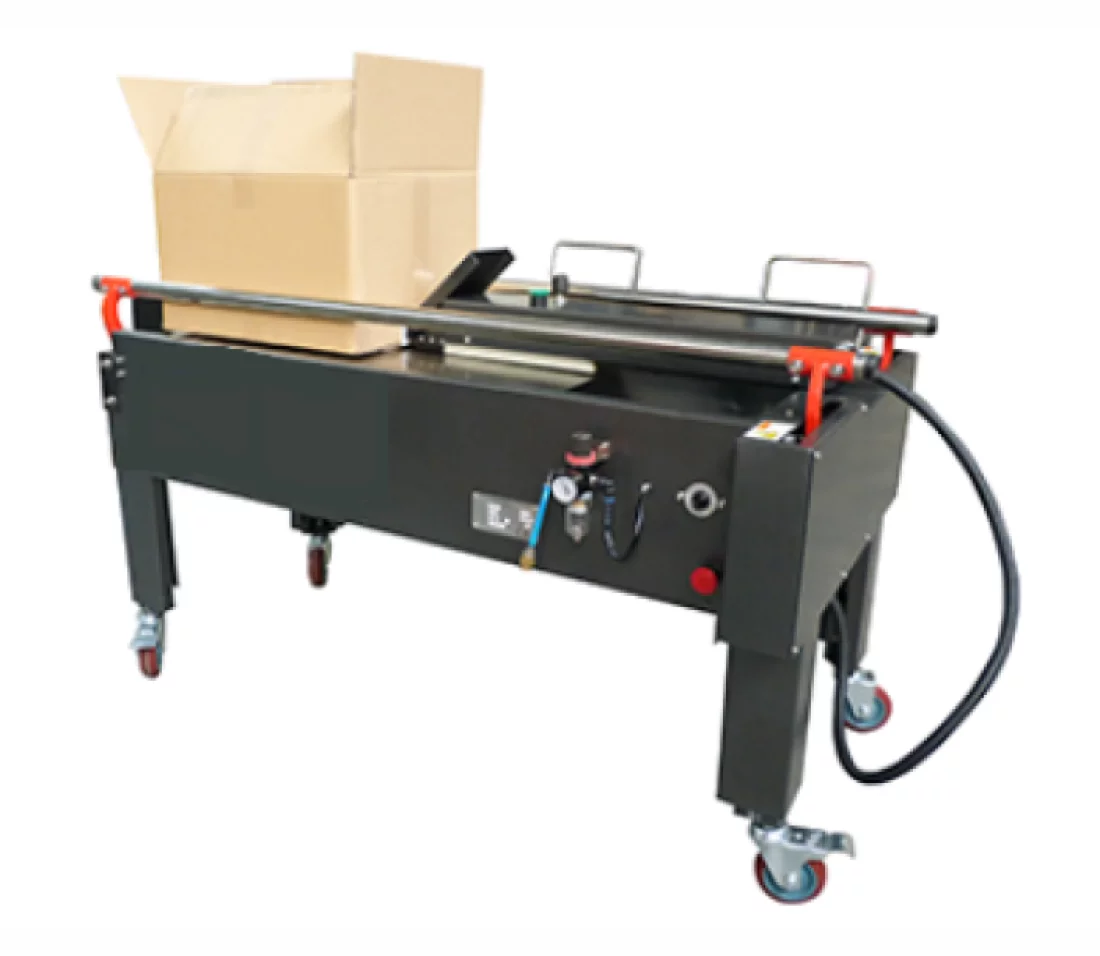

Case Erector (Eco-Line) Semi-Automatic

Cost-effective support for manual packaging processes

The semi-automatic case erector KAR-CF-10T from the Eco-Line is the perfect entry into semi-automated packaging technology. This compact solution combines manual flexibility with pneumatic support, enabling a significant increase in efficiency with manageable investment costs. The integrated filling station securely fixes cardboard boxes of various formats for filling and ensures a smooth workflow – ideal for small and medium-sized companies that want to optimise their packaging processes without having to invest in fully automated systems.

👁

Advantages of the semi-automatic case erector

Cost-effective automation: Affordable entry into semi-automated carton processing
Flexibility: Processing of different carton formats without time-consuming changeovers
Ergonomics: Significant reduction in operator workload thanks to pneumatic support
Increased efficiency: Acceleration of the packaging process compared to purely manual work
Low investment: Low acquisition costs for fast amortisation
Easy integration: Seamless integration into existing workflows
Space-saving: Compact design with low space requirements

Erecting and gluing cases

Semi-automatic closing of cases

Technical Details

Model:	KAR-CF-10T
Machine Dimensions (mm):	ca. 1400 x 950 x 800mm (LxWxH)
Carton Weight:	max. 40 kg
Carton Length:	min. 200mm / max. 600mm
Carton Width:	min. 150mm / max. 480mm
Carton Height:	min. 120mm / max. 500mm
Working Height:	700 - 800mm
Weight:	approx. 110 kg
Max. Connected Load:	0,6 kW
Pressure Air:	6 bar dry air
Electrical Connection:	230 V / 50Hz
Working Temperature:	+5°C / +35°C

Buy case erectors (Eco-line) - Enquire now

Are you interested in our semi-automatic case erectors or would you like to receive a no-obligation consultation from our packaging experts? Contact us at +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable packaging material for case erectors (Eco-line)

Verpackung von Süßigkeiten mit OPP-Siegelfolie

OPP / CPP Sealing Film

Our sealing film is food-safe and environmentally friendly. It is available as OPP film and CPP film and is ideal for hygienic food packaging. Available as flat film, half-tube film, and also as bags.

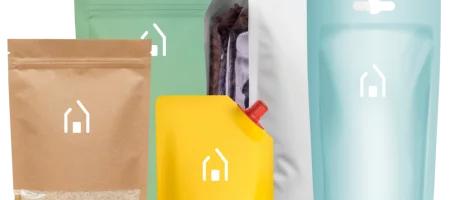

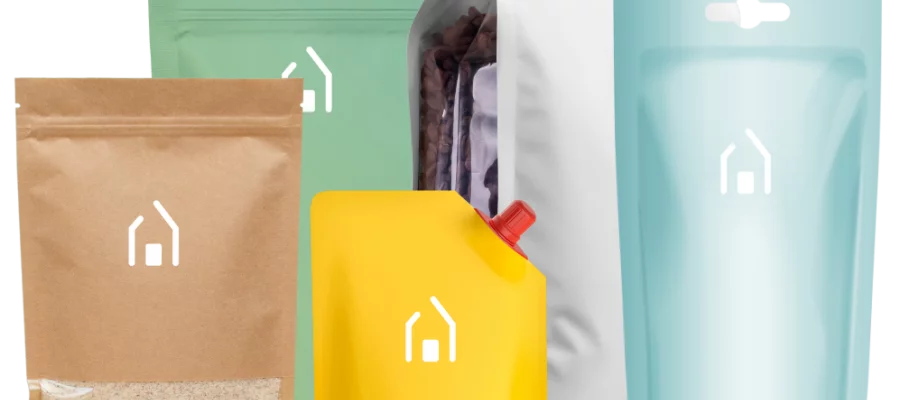

Eine große Auswahl an verschiedenen Standbodenbeuteln

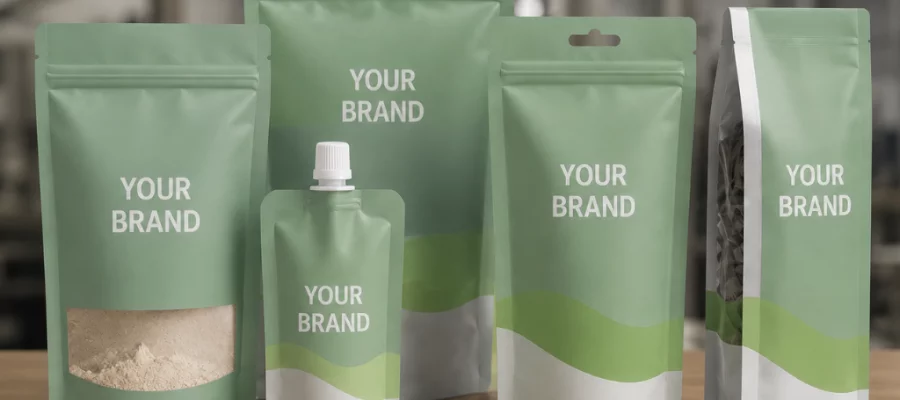

Stand-Up Pouches / Doypack-Bags
