Hygienic, precise, and time-saving—perfect for industry and food processing

Increase the efficiency of your packaging line with our fully automatic bag inserter – the ideal bag-in-box solution for cartons, trays, or KLTs.
Our technology ensures that bags are inserted into your target packaging hygienically, quickly, and with absolute process reliability – perfect for demanding production environments.

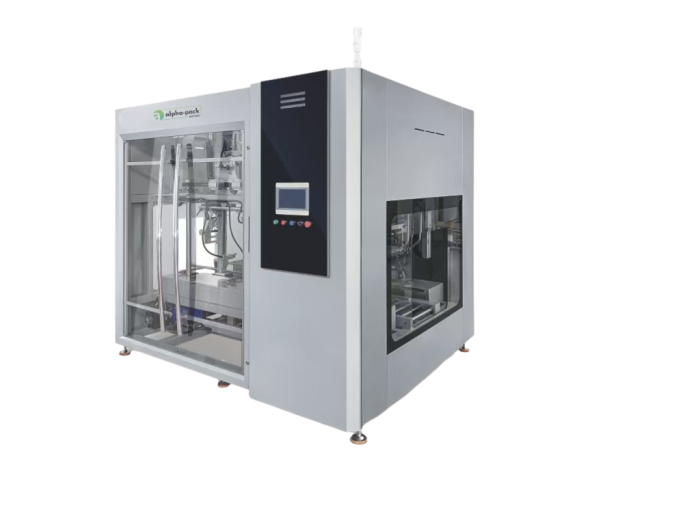

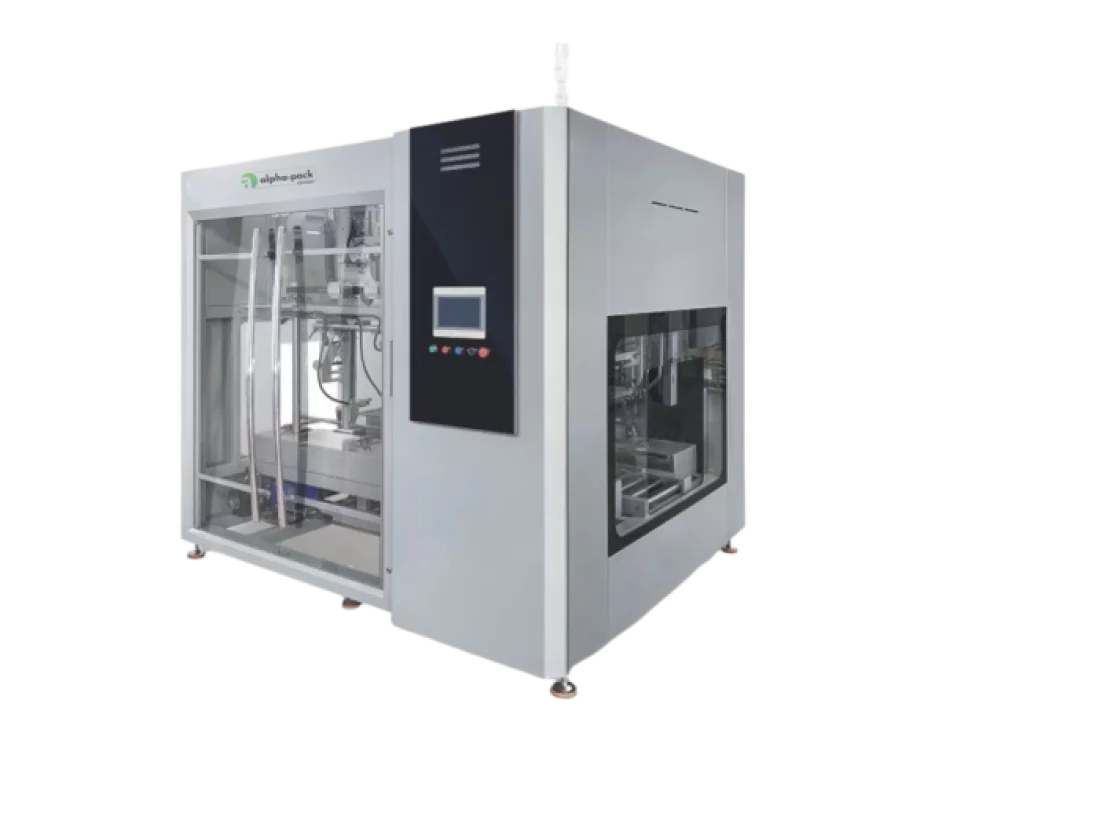

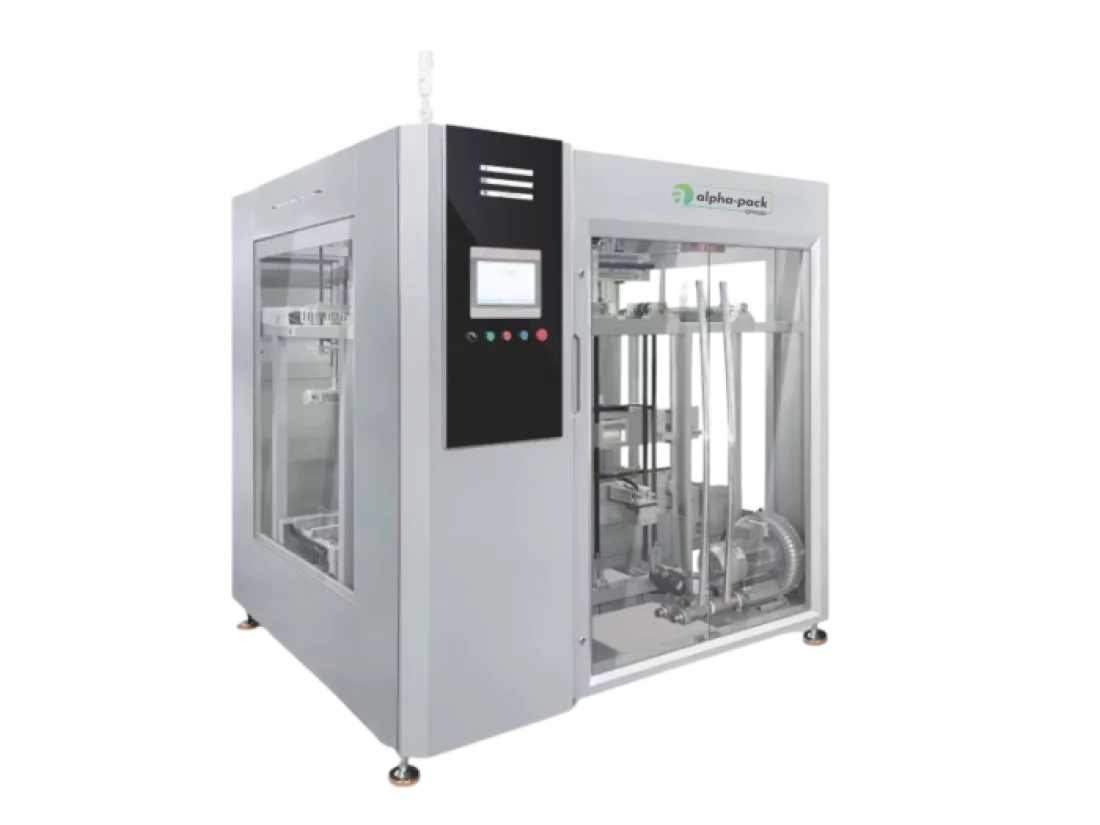

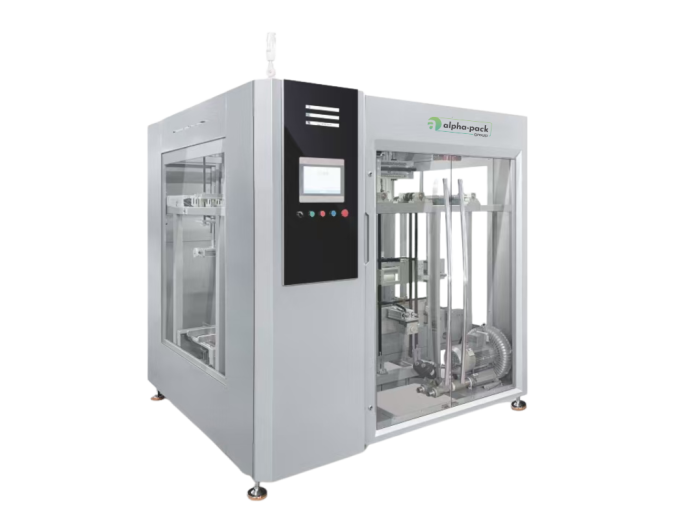

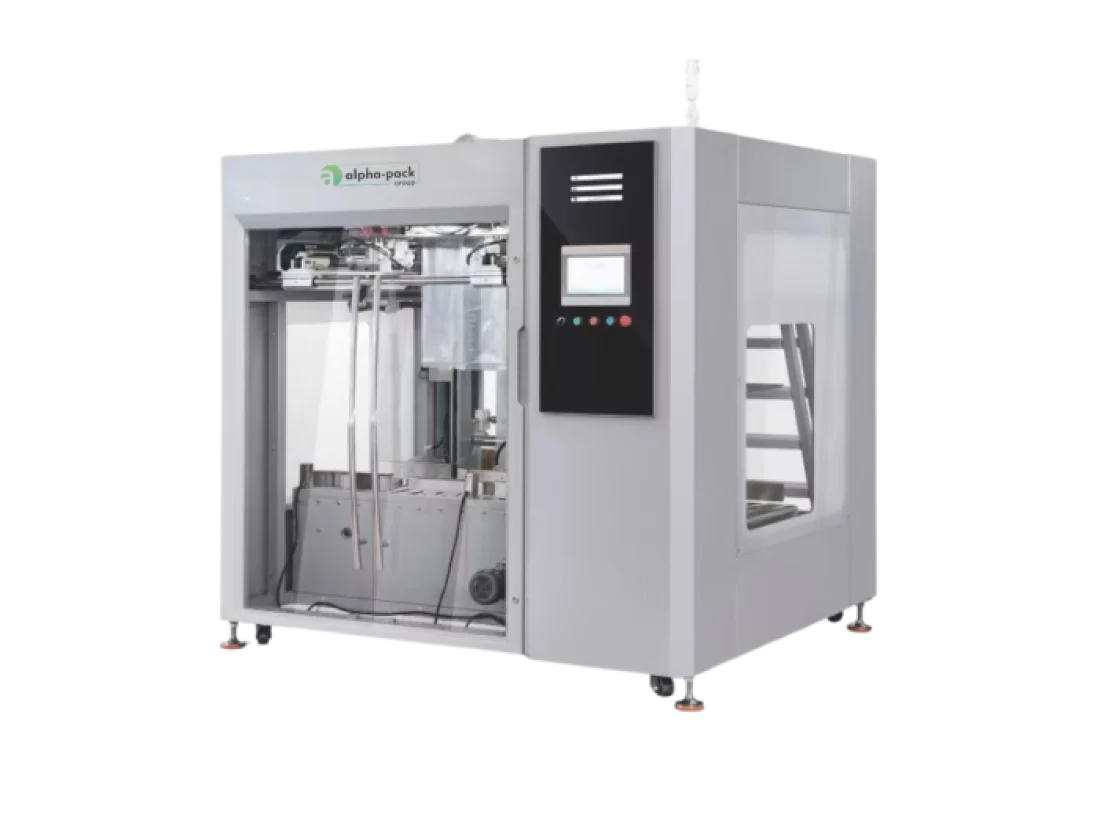

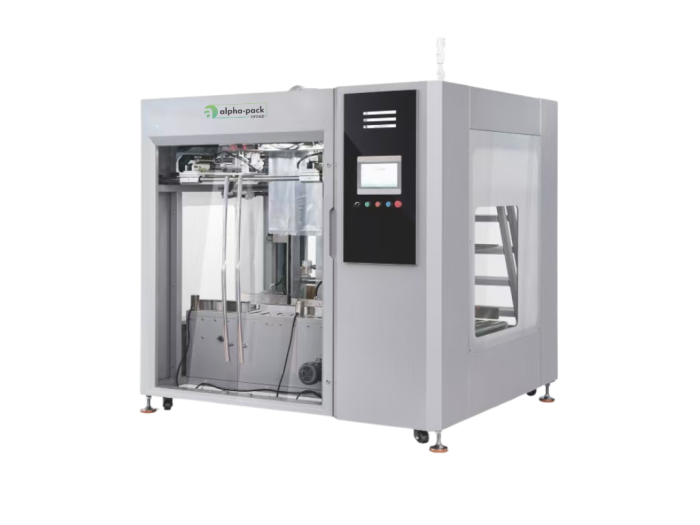

The machine forms flat bags, opens them precisely with a vacuum system, and places them cleanly and accurately in cartons or containers. Alternatively, you can also process pre-made bags.
The result: consistently high quality, reduced labor costs, and maximum operational reliability for your line.

👁

The advantages of the bag inserter

Fully automated bag handling: Forming, opening, and insertion in a continuous process—ideal for bag-in-box solutions and inner liners.
Maximum process reliability: Vacuum-assisted bag opening and placement for consistent results.
Hygienic design: Designed for sensitive products such as food, pharmaceuticals, or technical bulk goods.
Flexible packaging options: Compatible with open cartons, trays, KLTs, and various bag materials.
Modular & integrative: Can be used individually or seamlessly integrated into complete packaging lines with case erection, filling systems, and sealing units.
Reduced staffing requirements: Fewer manual interventions thanks to automated processes.
Combination model carton erector + bag inserter Bag in Box: Space-saving and ergonomic
User-friendly operation: Touchscreen HMI, short setup times, low maintenance.

👁

Areas of application

Our bag and inliner inserters are used across a wide range of industries:

Food industry (e.g., granulates, powders, liquids)
Baked goods & frozen foods
Pharmaceuticals and medical technology
Cosmetics & chemicals
Technical products and electronics

data sheet for bag inserter machine

Download our data sheet with all technical details about our DEAPT series bag inserters here.

datenblatt_beuteleinsetzer_maschine.pdf

Download now

Bag-in-box packaging with a system

By combining cardboard and bags, bag-in-box technology not only protects the product, but also offers advantages in terms of transport, storage, and logistics. Our machine lays the foundation for efficient, sustainable, and hygienic packaging processes—for solid, liquid, and dust-prone products alike.

Model options:

DEAPTF50

Model:	DEAPTF50
Sealing speed	360-480 Pcs/H
Packaging size	L 2000 x B 1600 x H 2250mm
Power supply	380 V, 50 Hz, 6 kW
Air pressure	600 NL/min, 0,6–0,8 MPa
Height of the discharge table	600 mm
Machine dimensions	L 2000 × B 1600 × H 2250 mm

DEAPT50

Model:	DEAPT50
Sealing speed	360-480 Pcs/h
Packaging size	L300-500 x W300-400 x H300-400mm
Power supply	380 V, 50 Hz, 6 kW
Air pressure	600 NL/min, 0,6–0,8 MPa, 600 mm
Height of the discharge table	600 mm
Machine dimensions	L 2120 × B 1800 × H 1950 mm

DEAPT50H

Model:	DEAPT50H
Sealing speed	1200-1500 Pcs/h
Packaging size	L300-500 × B300-400 × H300-400 mm
Power supply	380 V, 50 Hz, 8 kW
Air pressure	600 NL/min, 0,6–0,8 MPa
Height of the discharge table	650 mm
Machine dimensions	L 2200 × B 1900 × H 2200 mm

DEAPT50Z

Model:	DEAPT50Z
Sealing speed	360-500 Pcs/h
Packaging size	L400-600 x B300-500 x H150-300 mm
Power supply	80 V, 50 Hz, 6 kW
Air pressure	600 NL/min, 0,5–0,6 MPa
Height of the discharge table	600 mm
Machine dimensions	L 2200 × B 1800 × H 1950 mm

DEAPMT540

Model:	DEAPMT540
Sealing speed	300–600 Pcs/h
Packaging size	L300-500 x B300-400 x H300-400 mm
Power supply	380 V, 50 Hz, 8 kW
Air pressure	600 NL/min, 0,5–0,6 MPa
Height of the discharge table	650 mm
Machine dimensions	L 3700 × B 1850 × H 2100 mm

Buy bag inserter - Enquire now

Are you interested in our bag inserter machine or would you like to receive non-binding advice from our packaging experts? Contact us at +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimizing your packaging line.

Bag inserter machine for efficient packaging processes

Automated insertion of bags into cartons, trays, and KLT containers
