Rotary Filling and Sealing Machines (Rotary Machines)

Fast filling of pre-made Doypack stand-up pouches

The horizontal filling and sealing machine, which rotates around 8 stations, fills and seals prefabricated stand-up pouches (flat pouches, press-seal pouches, slide-seal pouches) at cycle times of up to 40 pieces per minute (up to 80 pieces per minute for the duplex model). Our rotary machines can be modularly expanded with weighing systems (multihead weigher, linear weigher) or integrated dosing units as an option for applications with bulk goods, liquids or pastes.

👁

Technical details

Quick bag format change
Short changeover times in just a few minutes
Integrated additional modules (gas flushing, weighing systems, double sealing)
Touch panel control with storable programmes
Central gripper adjustment with one-touch technology
Upstream opening system for pressure-sealed bags
Customised special designs – for special widths or special feed systems

👁

Main advantages of rotary filling systems

High efficiency: Up to 40 bags per minute (duplex model: up to 80 bags/min)
Quick format changeover of bags for flexible production planning
Short changeover times in just a few minutes for high overall efficiency
Modular expandability through integrable additional modules (gas flushing, weighing systems, double sealing)
Intuitive operation via touch panel control with storable programmes
Precise handling thanks to central gripper adjustment with one-touch technology
Intelligent bag processing with upstream opening system for pressure-sealed bags
Tailor-made solutions through customised special designs for special widths or special feed systems

Rotary filling technology for Doypack formats

Flexible packaging solutions for zipper bags

Precise dosing of dog food with multihead weigher

Rotary filling technology for powder packaging

Precise filling of seeds with multihead weigher

Fill buttercream safely into stand-up pouches

Model options:

DEAP-8BT filling and sealing machine

Modell	DEAP-8BT
Suitable bags:	Pre-made stand-up pouches, flat pouches, DVB
Bag width:	100 - 240 mm*
Bag length:	100 - 350 mm*
Output:	up to 40 bags/min (depending on product)**
Machine size (L x W x H):	2680 mm x 1861 mm x 1675 mm
Connection voltage:	400 V / 50Hz, 3-phase
Maximum connected load:	2,0 kW
Air pressure:	300 l / min

DEAP-8BT Duplex filling and sealing machine

Modell	DEAP-8BT Duplex
Suitable bags:	Pre-made stand-up pouches, flat pouches, DVB
Bag width:	100 - 150mm*
Bag length:	150 - 350 mm*
Output:	up to 80 bags/min (depending on product)**
Connection voltage:	N/A
Maximum connected load:	2,5 kW
Air pressure:	500 l / min

DEAP-8BT XL filling and sealing machine

Modell	DEAP-8BT XL
Suitable bags:	Pre-made stand-up pouches, flat pouches, DVB
Bag width:	150 - 300 mm*
Bag length:	170 - 470 mm*
Output:	up to 35 bags/min (depending on product)**
Machine size (L x W x H):	N/A
Connection voltage:	400 V / 50Hz, 3 phases
Maximum connected load:	2,0 kW
Air pressure:	300 l / min

Buy rotary filling and capping machines (rotary machines) – Enquire now

Are you interested in our rotary filling and capping machines (rotary indexers) or would you like some no-obligation advice from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable packaging material for rotary filling and sealing machines

Verpackung von Süßigkeiten mit OPP-Siegelfolie

OPP / CPP Sealing Film

Our sealing film is food-safe and environmentally friendly. It is available as OPP film and CPP film and is ideal for hygienic food packaging. Available as flat film, half-tube film, and also as bags.

Eine große Auswahl an verschiedenen Standbodenbeuteln

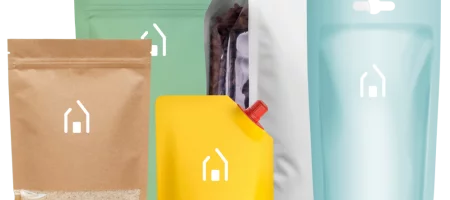

Stand-Up Pouches / Doypack-Bags

Our stand-up pouches (Doypack pouches) are extremely versatile. They are particularly suitable for food, pet food, and cosmetic products. They offer particularly high light and aroma protection and are made from monomaterial and are 100% recyclable.
