Induction Sealing Devices

Hermetic sealing technology for maximum product safety

Induction sealing machine for containers – precise, hygienic, efficient

Our filling and capping machines with induction sealing technology enable the fully automatic sealing of plastic and glass containers – safely, without contact and with maximum process reliability. After filling and placing the lid, an electromagnetically generated high-frequency field ensures that the inner sealing element (e.g., aluminum foil) is heated and firmly bonded to the container neck.

👁 👁 👁

Advantages of our induction sealing machine

  • High cycle rate: Ideal for mass production and high-throughput lines.
  • Hermetic seal: Airtight and liquid-tight closure – protects product freshness and extends shelf life.
  • Contactless induction sealing: No physical contact with the product – perfect for hygienically demanding environments.
  • Flexible application: For round, square, or oval containers – made of plastic, glass, or composite materials.
  • Modular integration: Can be integrated into existing filling or packaging lines.
  • Energy-efficient & low-maintenance: Optimized heating circuits and reliable components ensure low consumption and long service life.
  • GMP and FDA-compliant design: Can be certified for use in sensitive industries.
👁

Areas of application

Our induction sealing machines are used successfully in numerous industries:

Food industry

  • Trays with ketchup, mayonnaise, dressings, or dips
  • Cans with salt, spices, or instant products
  • Containers with ready meals, soups, or dairy products

Pharmaceutical products

  • Cans and jars containing dietary supplements, tablets, capsules
  • Containers with medical preparations or suspensions

Cosmetics & chemicals

  • Creams, ointments, lotions in jars and tubes
  • Liquid soaps, shampoos or technical liquids in bottles

Our induction sealing machine in use

Induction sealing machine for tablet filling

Induction sealing machine for food supplements

Filling & sealing ketchup in containers

Model options:

  • DETAPI-2001A
    Model:DETAPI-2001A
    Voltage:220 V / 1 pH, 50 Hz
    Maximum power:
    		2500 W
    Sealing diameter:A:15 - 45 mm, B:30 - 60 mm, C: 50 - 120 mm
    Maximum capacity:
    		200
    Cooling method: air cooling
  • DETAPI-2001B
    Model:DETAPI-2001B
    Voltage:220 V / 1 pH, 50 Hz
    Maximum power:
    		2500 W
    Sealing diameter:A:15 - 45 mm, B:30 - 60 mm, C: 50 - 120 mm
    Maximum capacity:
    		200
    Cooling method:air cooling
  • DETAPI-3000A
    Model:DETAPI-3000A
    Voltage:220 V / 1 pH, 50 Hz
    Maximum power:
    		3000 W
    Sealing diameter:A:30 - 60 mm, B: 50 - 121 mm
    Maximum capacity:
    		300
    Cooling method:water cooling
  • DETAPI-3000B
    Model:DETAPI-3000B
    Voltage:220 V / 1 pH, 50 Hz
    Maximum power:
    		3000 W
    Sealing diameter:A:30 - 60 mm, B: 50 - 121 mm
    Maximum capacity:
    		300
    Cooling method:water cooling

Buy induction sealing machines– Enquire now

Are you interested in induction sealing machines, or would you like some no-obligation advice from our packaging experts? Get in touch with us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable packaging material for induction sealing machines

Siegelschalen und Menüschalen für Lebensmittel

Menu & Sealed Trays

Sealed trays are ideal for packaging individual foods and ready meals. Our trays are environmentally friendly and suitable for all food applications.

»

Suitable accessories for induction sealing machines
Optimise your packaging process

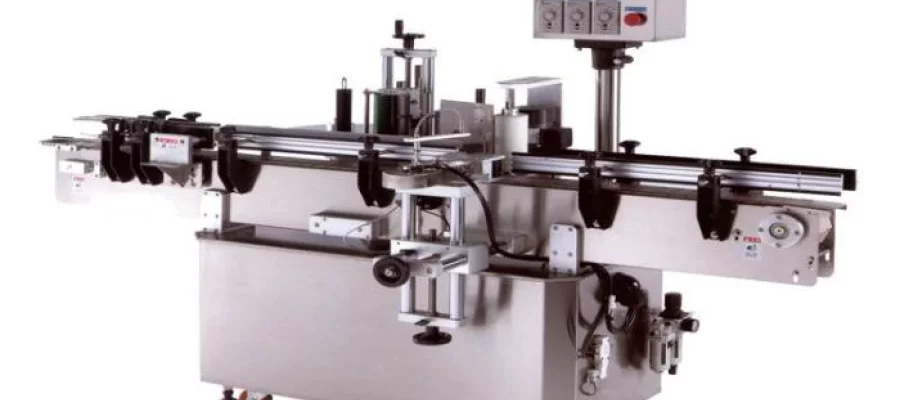

Etikettiermaschine (seitlich) von alpha pack GmbH

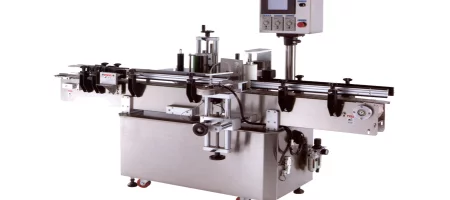

Labelling Machines

Flexible labeling solutions for a wide range of packaging formats and industries

»

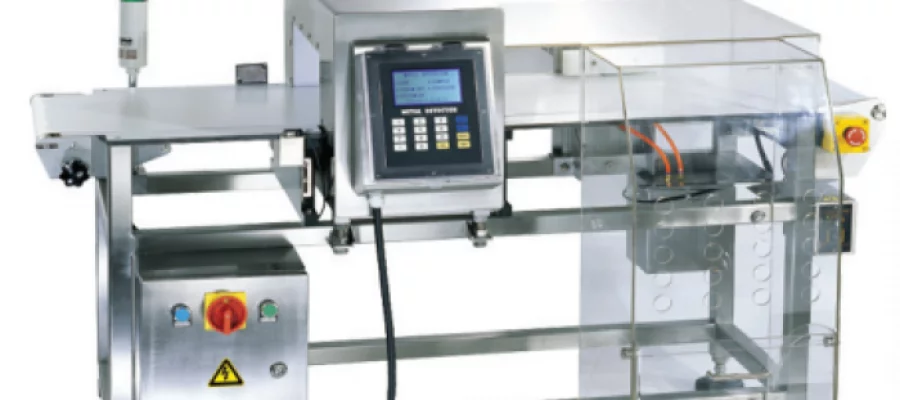

Ansicht des Metalldetektors von alpha pack GmbH

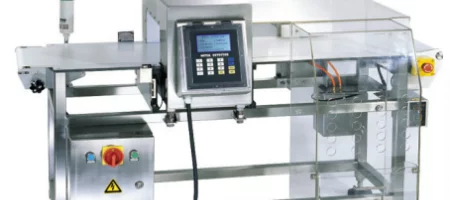

Metal Detectors

Innovative detection technology with maximum sensitivity for reliable protection against metal contamination and maximum product safety

»

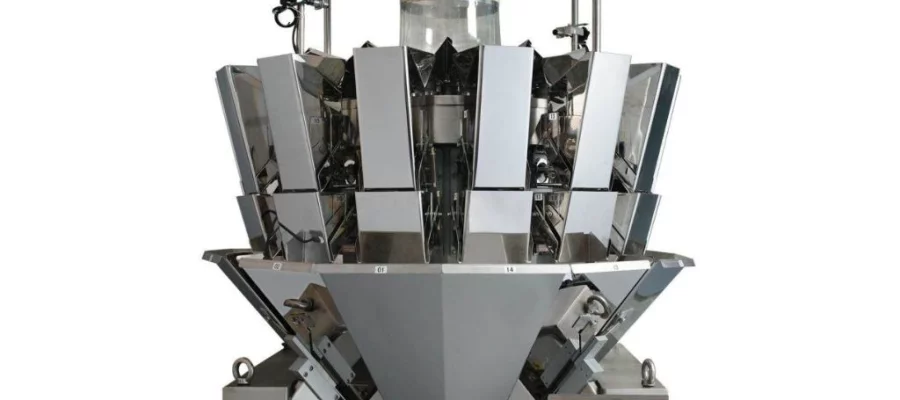

Mehrkopfwaage zum Abwiegen und Abfüllen von Lebensmitteln von alpha-pack GmbH

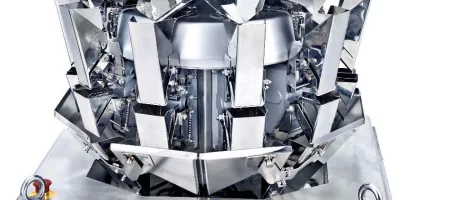

Weighing & Filling Systems

High-precision dosing and filling technologies for consistent product quality and minimal material losses

»

Frequently asked questions about our induction sealing machines for containers

These machines automate the precise filling and secure sealing of bottles, jars, cans, or plastic containers—ideal for liquid, paste, and powdered products.

Are you looking for a solution for your product? Contact us at info_at_alphapack.de

Our machines are suitable for:
– Bottles (PET, glass, HDPE)
– Screw-top and snap-top cans
– Wide-neck containers and canisters
– Cups, tubes, or special containers
We adapt our systems flexibly to your packaging.

Typische Anwendungen sind:

  • Lebensmittel wie Saucen, Öle, Pasten oder Gewürze
  • Kosmetika wie Cremes, Duschgel, Shampoo
  • Chemische Produkte wie Reiniger oder Desinfektionsmittel
  • Nahrungsergänzungsmittel, Pulver, Tabletten

Yes, we offer coordinated pump systems (piston pump, gear pump, vacuum filler) and controlled feeding systems for bulk materials, powders, or viscous products—also with CIP/SIP connection.

Our closure systems process:

  • Screw caps, hinged lids, flip-top caps
  • Press closures, snap-on closures
  • Pump attachments, dispensers, spray heads

Sorting, feeding, and quality control can also be integrated as options.
