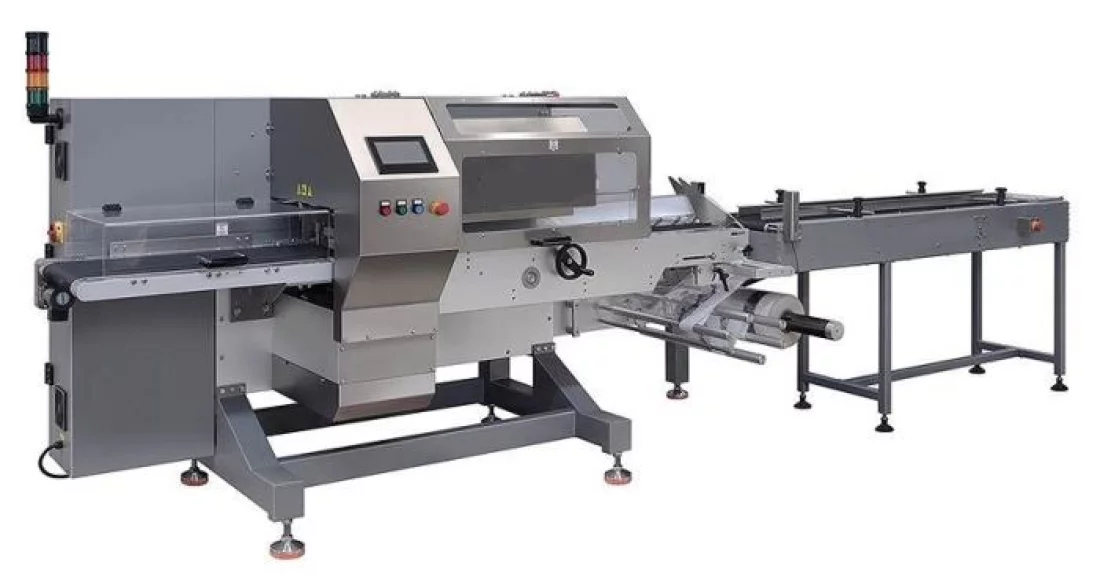

Horizontal Pillow Bag Machines

Versatile packaging solution for a wide range of product formats

Our horizontal tubular bag machines (flowpackers) offer a fast and fully automatic solution for packaging a wide variety of products in polypropylene, polyolefin, cellophane and laminated films. The film is sealed lengthwise and crosswise by extremely stable seams, with the film being fed from below in this model.

The special feature of the lower film guide allows the welding unit for the longitudinal seam to be positioned above the conveyor belt. This allows the tubular film to be folded over a longer distance in the required manner, which is particularly advantageous for sensitive or lightweight products. The processing of transparent and printed films is individually adapted to your product, while the product feed can be either manual or automatic via a transport chain.

👁

Technical details and advantages

Robust construction: Steel frame or stainless steel construction for high stability
Precise product handling: Transport of products by gripper feeding
Reliable welding technology: Teflon-coated welding punches, continuously heated
Simple touchscreen operation: Intuitive control via colour symbols
Automated feed: Continuous product feed via photo cell control
High operational reliability: Protective covers and alarm signal light
High-quality packaging: 3-sided welded seam packaging (fin seam)
Optimal bag formation: Longitudinal welding on the underside of the bag
Fast processing: Rotating cross-sealing system for high cycle frequencies
Flexible expandability: Can be combined with a shrink tunnel
Individual adaptation: Customised modifications and designs on enquiry

Areas of application

Our horizontal pillow bag machines with lower film guide are particularly suitable for:

Food industry

Baked goods: pita bread, biscuits, pastries
Meat products: sausage, cold cuts, meat products
Fruit and vegetables: fresh produce, pre-packaged vegetables

Medical and pharmaceutical industry

Medical products: gloves, bandages
Hygiene products: Disposable items, care products
Pharmaceuticals: Individual packaging, sample packs

Technical products

Small parts: Screws, dowels, assembly kits
Electronic components: Cables, plugs, adapters
Tool parts: Bits, small tools, spare parts

Special applications

Lightweight products: Herbs, greeting cards
Frozen goods: ice cream packaging, frozen food
Sensitive items: products that require particularly careful packaging

Pack vegetables safely and freshly in pillow bags

Horizontal pillow bag machine for meat products

Film feed from bottom for stable bread packaging

Efficient packaging solutions for various types of gloves

Model options for our horizontal pillow bag machines

Horizontal pillow bag machine DEAHP-500-3S-BR

Model	DEAHP-500-3S-BR
Usable films (center folded):	PP / POF / composite films
Sealing process:	up to 120 pieces/minute*
Sealing mechanism 1:	longitudinal sealing
Sealing mechanism 2:	spin sealing - servomotors

Horizontal pillow bag machine DEAHP-500-4S-BRI

Model	DEAHP-500-4S-BRI
Usable films (center folded):	PP / POF / composite films
Sealing process	up to 60 pieces/minute*
Sealing mechanism 1:	longitudinal sealing
Sealing mechanism 2:	spin sealing - servomotors
Max. film width:	700 mm**
Max. bag length:	50-600 mm**
Max. sealing height:	120 mm**

Horizontal pillow bag machine DEAHP-600-3S-BR

Model	DEAHP-600-3S-BR
Usable films (center folded):	PP / POF / composite films
Sealing process:	up to 120 pieces / minute*
Sealing mechanism 1:	longitudinal sealing
Sealing mechanism 2:	spin sealing - servomotors
Maximum product height:	120 mm**
Maximum product width:	280 mm**
Product length:	70 - 600 mm**
Maximum reel size (W x Ø):	600 x Ø 300 mm
Connected load (maximum):	3,5 kW
Air pressure (dry air):	6,0 bar
Supply voltage:	400 V / 3-phases

Horizontal pillow bag machine DEAHP-600-4S-BM

Model	DEAHP-600-4S-BM
Usable films (center folded):	PP / POF / composite films
Sealing process	up to 60 pieces/minute*
Sealing mechanism 1:	longitudinal sealing
Sealing mechanism 2:	spin sealing - servomotors
Max. film width:	600 mm**
Max. bag length:	50-600 mm**
Max. sealing height:	120 mm**

Horizontal pillow bag machine DEAHP-700BM

Model	DEAHP-700BM (Box Motion, film from below)
Usable films (center folded):	PP / POF / composite films
Sealing process:	up to 70 pieces / minute*
Sealing mechanism 1:
Sealing mechanism 2:
Maximum product height:	120 mm**
Maximum product width:
Product length:	50 - 600 mm**
Maximum reel size (W x Ø):
Connected load (maximum):	6/9 kW
Air pressure (dry air):
Supply voltage:	400 V / 3-phases

DEAHP-700-4S-BRI

Model	DEAHP-700-4S-BRI
Usable films (center folded):	PP / POF / composite films
Sealing process	up to 60 pieces/minute*
Sealing mechanism 1:	longitudinal sealing
Sealing mechanism 2:	spin sealing - servomotors
Max. film width:	700 mm**
Max. bag length:	50-600 mm**
Max. sealing height:	120 mm**

Buy horizontal pillow bag machine - Enquire now

Are you interested in our horizontal pillow bag machine or would you like a no-obligation consultation from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable packaging material for horizontal pillow bag machines

Siegelschalen und Menüschalen für Lebensmittel

Menu & Sealed Trays

Sealed trays are ideal for packaging individual foods and ready meals. Our trays are environmentally friendly and suitable for all food applications.

Verpackung von Süßigkeiten mit OPP-Siegelfolie

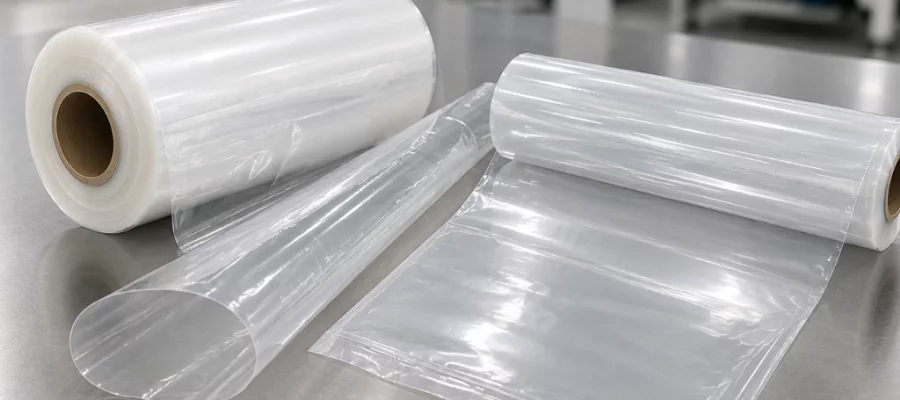

OPP / CPP Sealing Film
