Swing Pillow Bag Machines

Flexible packaging technology with three operating positions

Flowpack solution for variable product formats and industry requirements

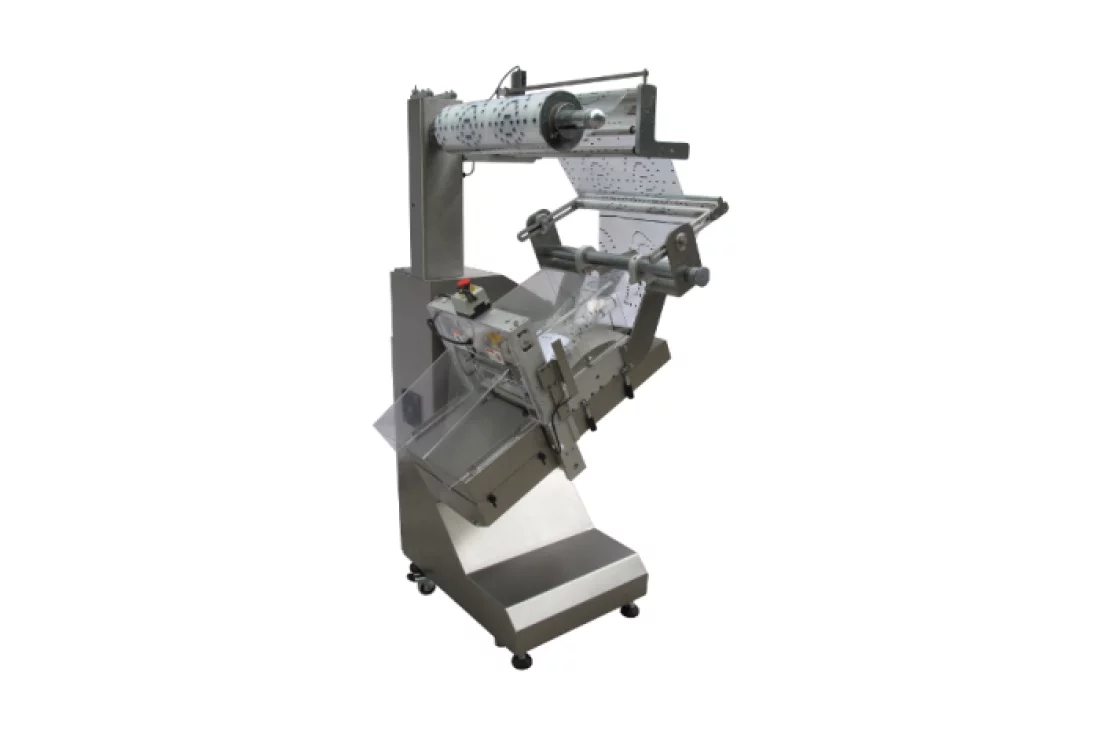

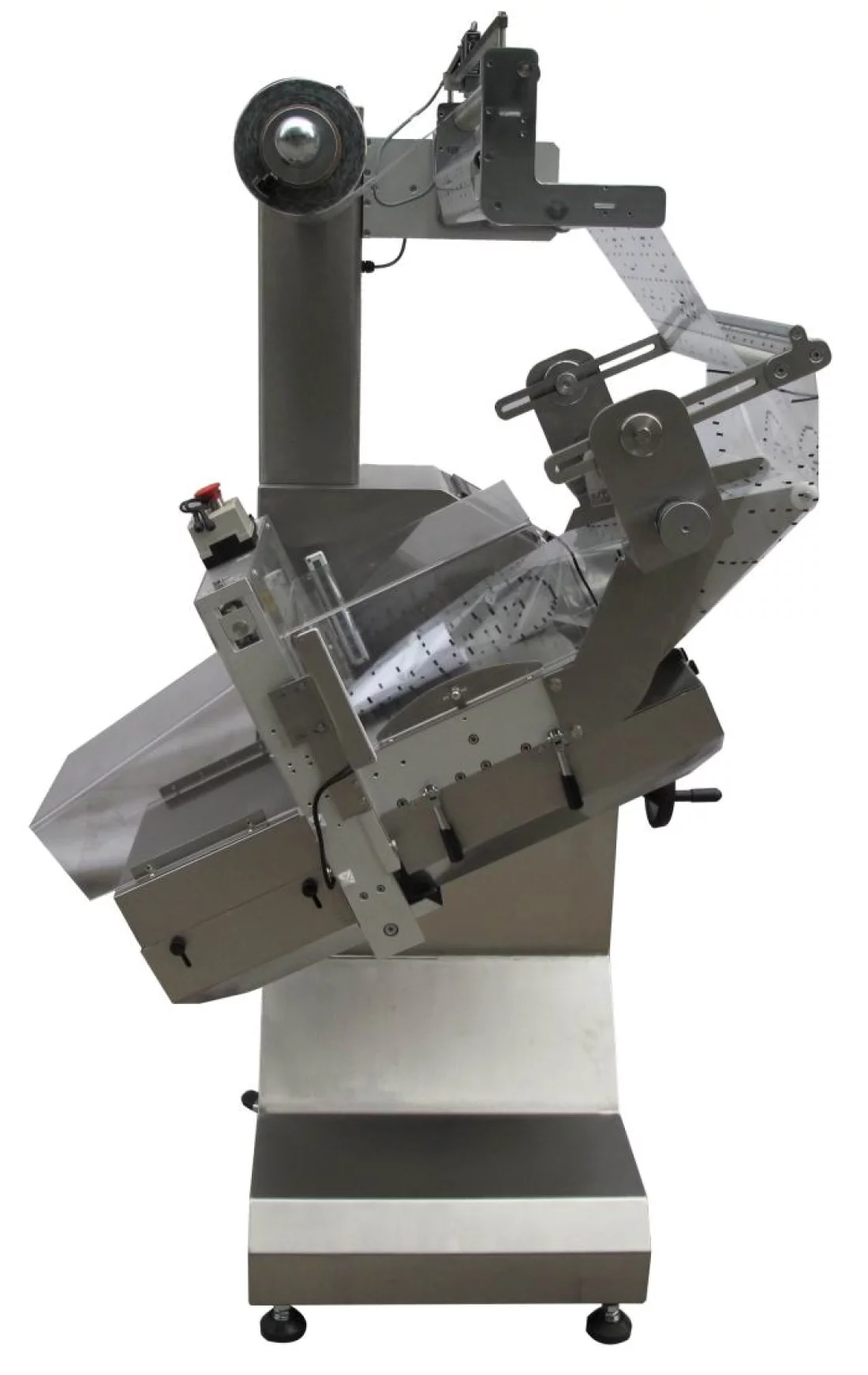

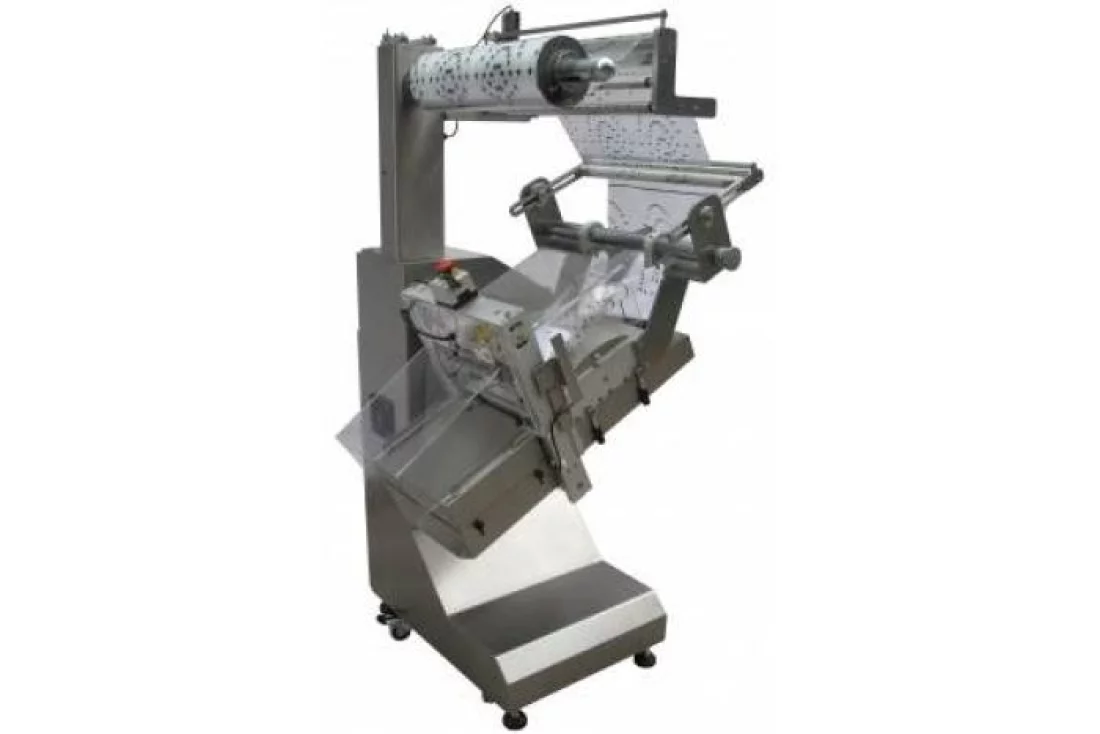

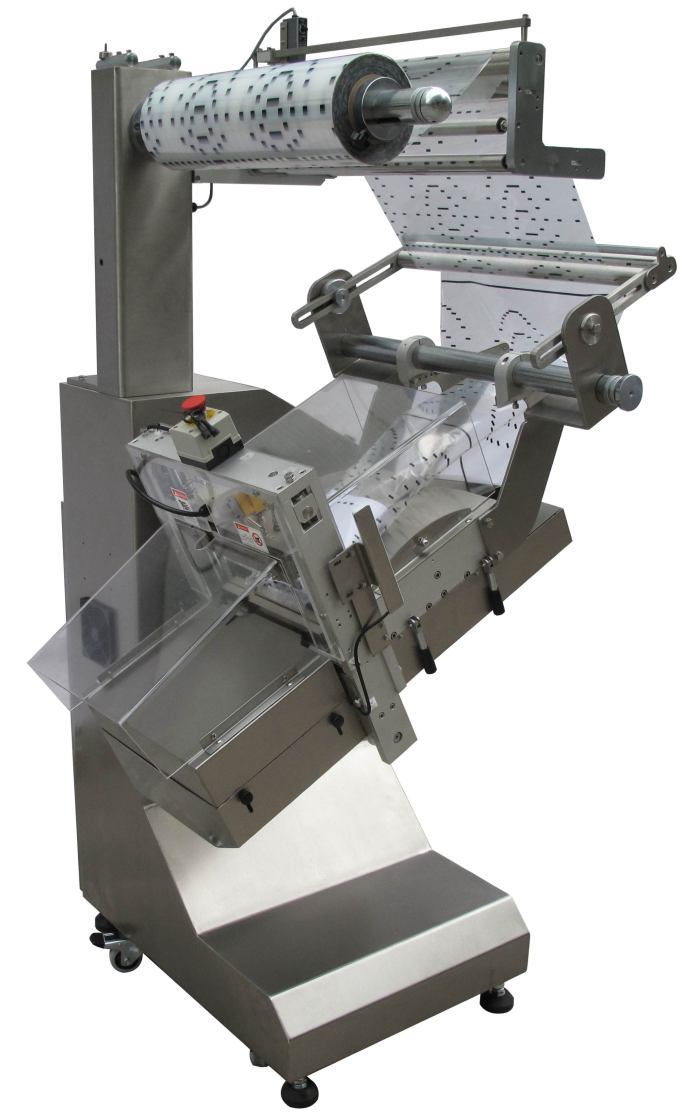

The horizontal swing pillow bagging machine is the ideal solution for packaging processes with changing requirements. With three adjustable working positions – horizontal, vertical and at a 90-degree angle – the system adapts flexibly to different product shapes and production environments.
Whether for baked goods, fruit, vegetables or meat, the Swing series offers reliable performance and hygienic packaging for small to medium batch sizes. The easy removal of relevant components enables quick cleaning and maintenance. Add-ons such as photo cells for printed films, date printers or automatic product feeders make the system highly expandable.

Technical details and advantages

  • Flexible positioning: 3 different packaging positions can be selected depending on the product (90-degree tilt, vertical, horizontal)
  • Optimised workflow: Product feed on the left-hand side
  • Easy maintenance: All machine parts can be removed for maintenance and cleaning
  • Safety features: Protective covers and alarm signal light
  • Expandable range of functions: Can be integrated with photo cells, printers or automatic feed
  • High-quality construction: Optionally available in stainless steel

Areas of application

Swing pillow bag machines are ideal for:

Food industry

  • Baked goods: bread, rolls, biscuits, pastries
  • Fruit and vegetables: fresh produce, pre-cut vegetables
  • Meat products: sausages, cold cuts, portioned meat pieces
  • Convenience products: sandwiches, wraps, ready meals

Industrial uses

  • Individual parts and components
  • Textiles and fabrics
  • Handcrafted products
  • Spare parts and accessories

Technical specifications

Modell Swing-600
Packaging speed: up to 25 pieces/minute**
Maximum roll width: 600 mm
Maximum product height: 140 mm
Maximum product length: 1000 mm
Minimum product length: 600 mm
Product width: 50-280 mm*
Film roll diameter: max. 300 mm
Connection voltage: 230 V
Power: 2,0 kW
Machine weight: approx. 300 kg

Buy Swing pillow bag machine - Enquire now

Are you interested in our Swing pillow bag machine or would you like some no-obligation advice from our packaging experts? Contact us on +49 - 2235-79479-0 or email info_at_alphapack.de. We look forward to optimising your packaging line.

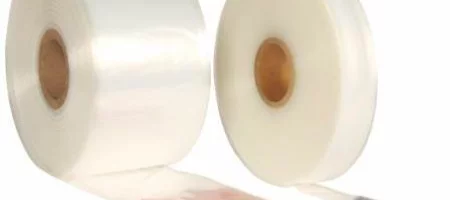

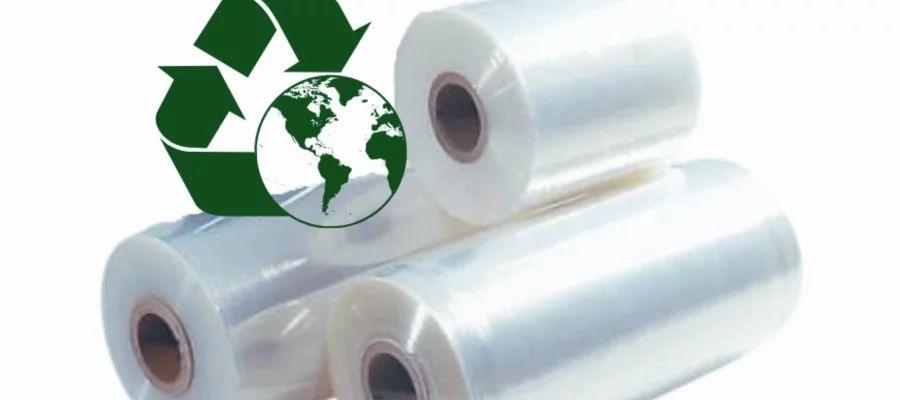

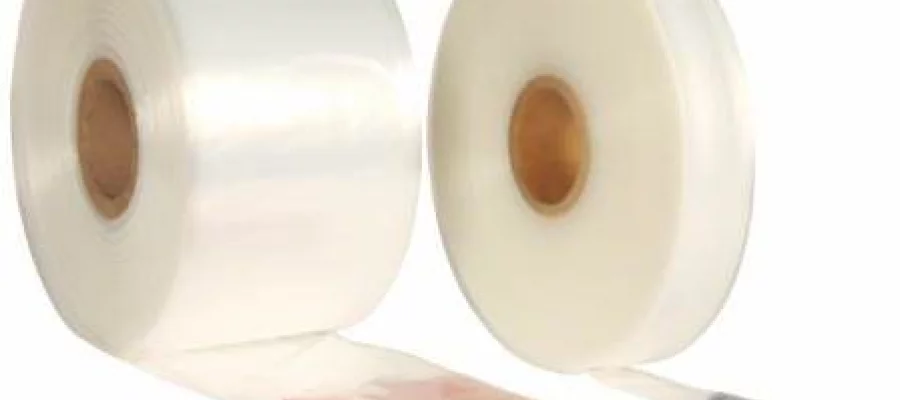

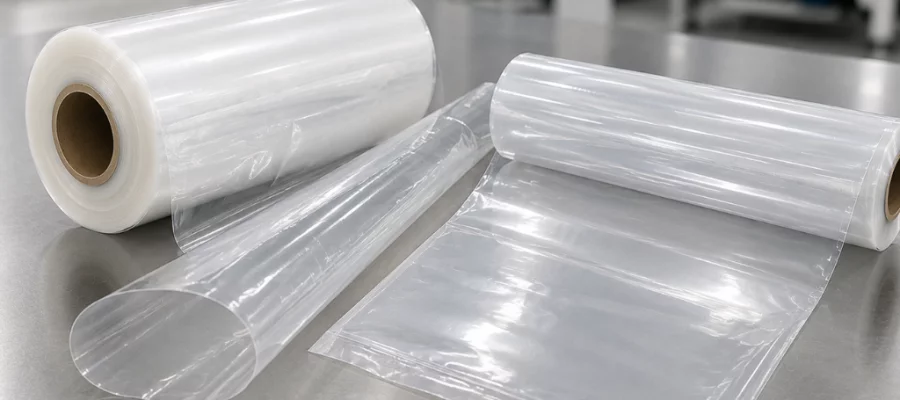

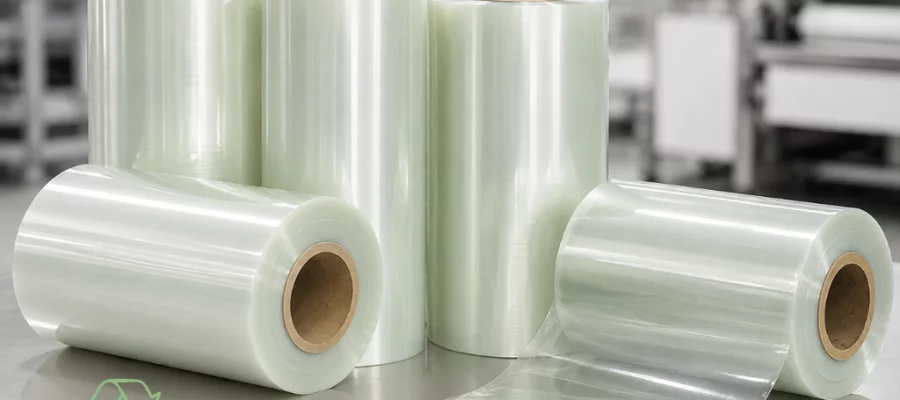

Suitable packaging material for Swing pillow bag machines

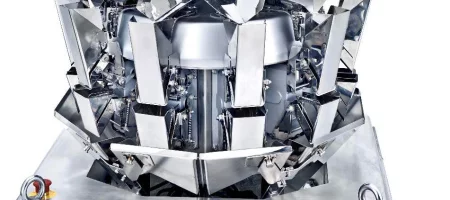

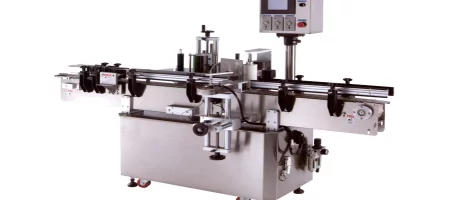

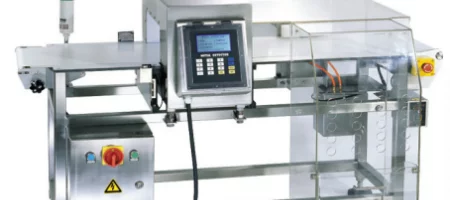

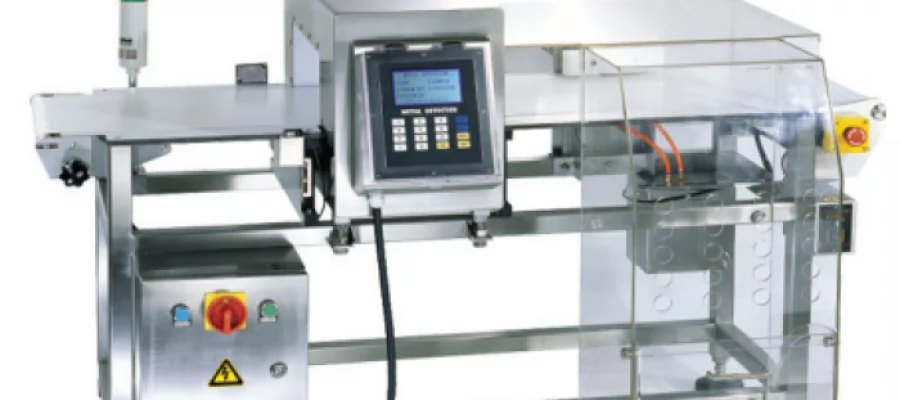

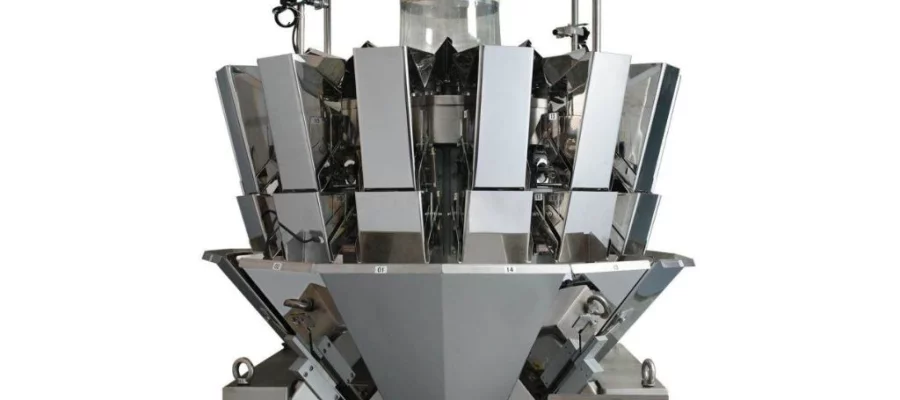

Suitable accessories for Swing pillow bag machines
