Pillow Bag Machine Stick-Pack

Stick-pack packaging machine for liquids, powders and granulates

Our vertical form-fill-seal machines provide the perfect link between production and packaging. With the Stick-Pack form-fill-seal machine, you can further automate your production process, as the vertical form-fill-seal machines form, fill and seal bags in a single operation.

Our tube bag machines offer low acquisition costs, low risk and professional packaging for a wide range of different products. Thanks to their easy integration into existing production lines, dosing and conveyor systems, our vertical tube bag machines can be used flexibly. These compact machines are virtually maintenance-free, save space, keep the cost per bag very low through the use of flat film and are easy to operate via the touchscreen control.

Our stick pack tubular bag machine fills long, narrow bags, also known as stick packs, with liquids, pastes, granulates (such as sugar or coffee portions) and powdery substances. The appropriate feed doser is supplied depending on the type of product to be filled.

👁

Technical details and advantages

Automatic measuring, filling, forming of bags, printing with best-before date, sealing and cutting of bags. Perforation optional.
Motor-controlled heat sealing system for reliable seam strength
Highly sensitive optical photosensor for automatic, accurate detection of colour markings
Programmable control system with touch screen, easy to use for setting and changing packaging parameters
Daily production output and error messages can be read on the screen
Precise temperature control ensures accurate sealing temperature with an accuracy of ±1°C

👁

Ideal areas of application for stick pack packaging

Stick pack packaging offers numerous advantages for various products and industries:

Food industry

Coffee powder and sugar portions
Spice powders and mixtures
Instant drinks and food supplements
Honey in practical portion bags
Wasabi paste in hygienic single portions

Pharmaceutical and cosmetics industry

Medication powder for single doses
Food supplements and vitamin preparations
Skin creams and face masks for single use
Anti-hairball paste for cats

Technical products

Adhesives for precise application
Special adhesives in practical portion form
Paints and varnishes for sample surfaces
Lubricants in single doses

Safely fill anti-hairball paste into stick-packs

Flexible packaging solutions for sports gels

Hygienic packaging of wasabi paste

Stick-pack pillow bag machine for honey products

Model options:

DEPM-180

Model DEPM-180
Bag length: 70 -180 mm *
Bag width:
16 - 80 mm *
Film width: max. 180 mm *
Speed: 20 - 50 bags / min **
maximum amount of production lines:
1
DEPM-180-2

Model DEPM-180-2
Bag length: 70 -180 mm *
Bag width:
16 - 35 mm *
Film width: max. 180 mm *
Speed: 40 - 100 bags/ min **
maximum amount of production lines:
2
DEPM-180H

Model DEPM-180H
Bag length: 70 -240 mm *
Bag width:
16 - 80 mm *
Film width: max. 180 mm *
Speed: 20 - 35 bags / min **
maximum amount of production lines:
1
MLP-800A-04

Model: MLP-800A-04
Bag length*: 70 - 200 mm
Bag width*: 40 - 95 mm
Film width: max. 800 mm
Amount of lanes :
4
Speed (bag/min)**:
120 - 180
MLP-800B-04

Model: MLP-800B-04
Bag length*: 70 - 200 mm
Bag width*: 40 - 95 mm
Film width: max. 800 mm
Amount of lanes:
4
Speed (bag/min)**:
120 - 180
MLP-800B-06

Model: MLP-800B-06
Bag length*: 70 - 200 mm
Bag width*: 35 - 60 mm
Film width: max. 800 mm
Amount of lanes:
6
Speed (bag/min)**:
160 - 270

Model	DEPM-180
maximum amount of production lines:	1

Model	DEPM-180-2
maximum amount of production lines:	2

Model	DEPM-180H
maximum amount of production lines:	1

Model:	MLP-800A-04
Bag length*:	70 - 200 mm
Bag width*:	40 - 95 mm
Film width:	max. 800 mm
Amount of lanes :	4
Speed (bag/min)**:	120 - 180

Model:	MLP-800B-04
Bag length*:	70 - 200 mm
Bag width*:	40 - 95 mm
Film width:	max. 800 mm
Amount of lanes:	4
Speed (bag/min)**:	120 - 180

Model:	MLP-800B-06
Bag length*:	70 - 200 mm
Bag width*:	35 - 60 mm
Film width:	max. 800 mm
Amount of lanes:	6
Speed (bag/min)**:	160 - 270

Buy stick-pack pillow bag machine – Enquire now

Are you interested in our stick-pack pillow bag machine or would you like a no-obligation consultation from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable packaging material for stick-pack pillow bag machine

Verpackung von Süßigkeiten mit OPP-Siegelfolie

OPP / CPP Sealing Film

Our sealing film is food-safe and environmentally friendly. It is available as OPP film and CPP film and is ideal for hygienic food packaging. Available as flat film, half-tube film, and also as bags.

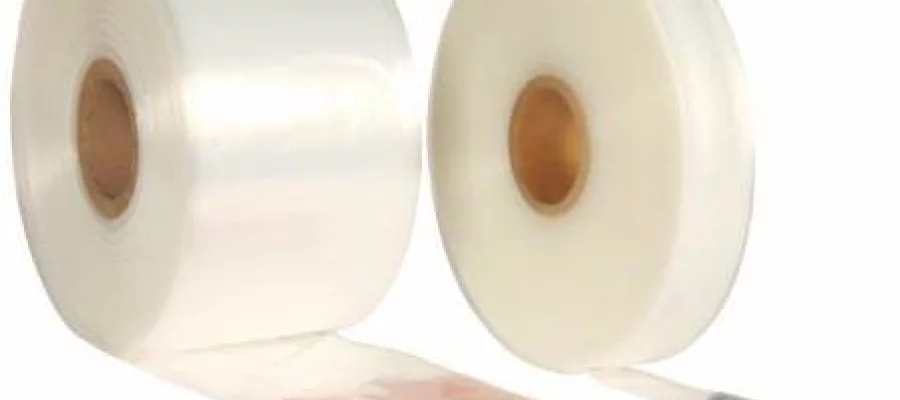

Castelli Film PE-Schlauchfolie mit hoher Reißfestigkeit

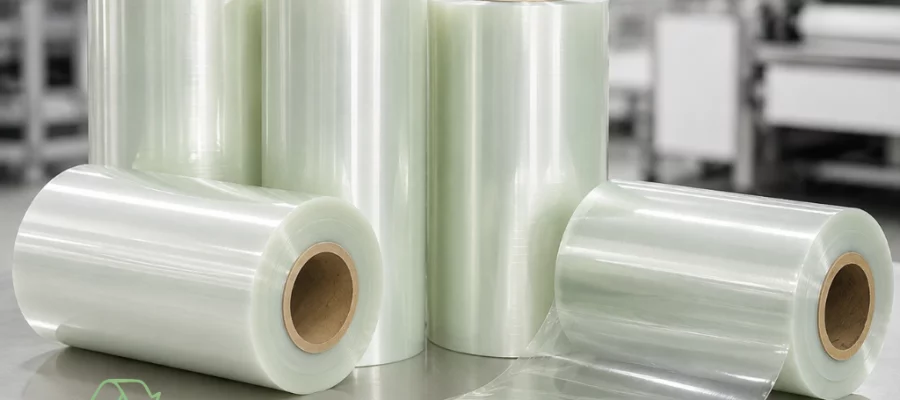

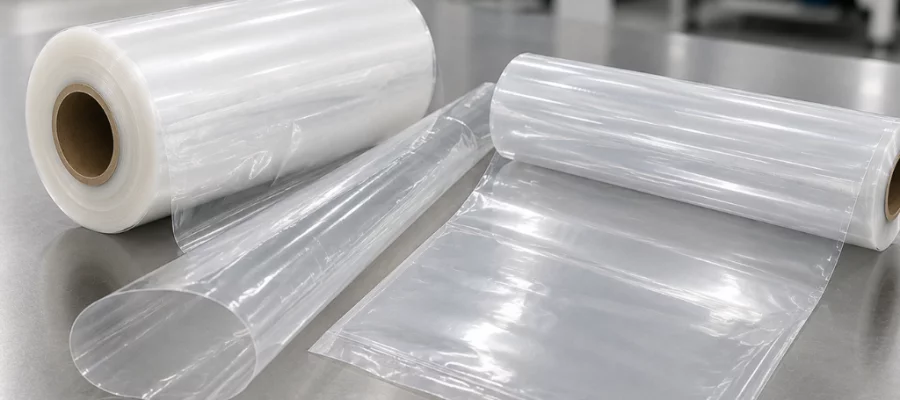

PE Tubular and Flat Film

Our PE films are transparent, food-safe and impress with their high tear resistance and excellent weldability. This makes them ideal for manufacturing flat bags and therefore the perfect protective packaging.

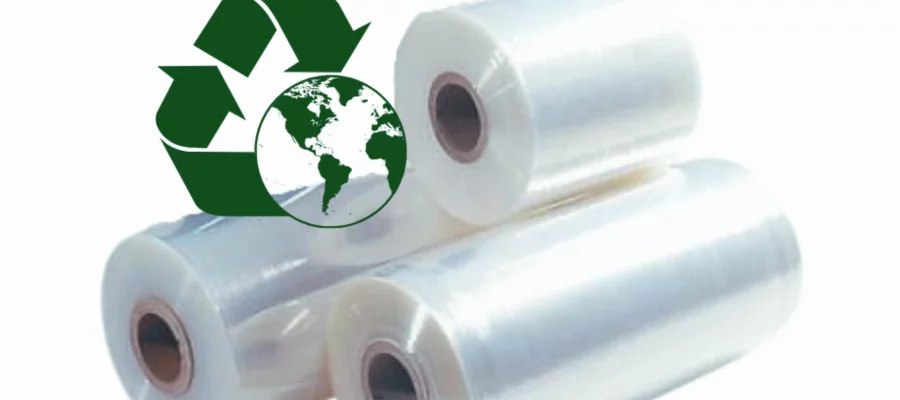

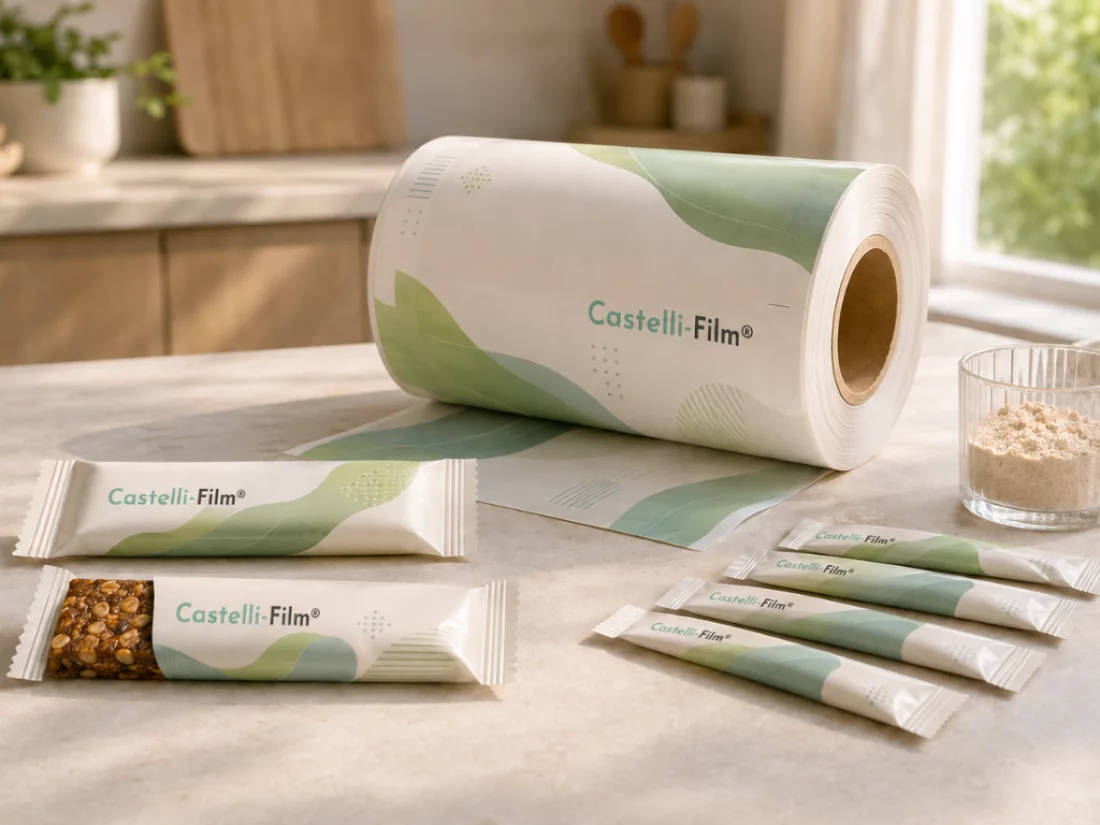

PCR Recycling Films

Our environmentally friendly PCR films are made from recycled plastic from discarded materials. They are versatile, suitable for almost any application, and available as flat film and half-tube film.
