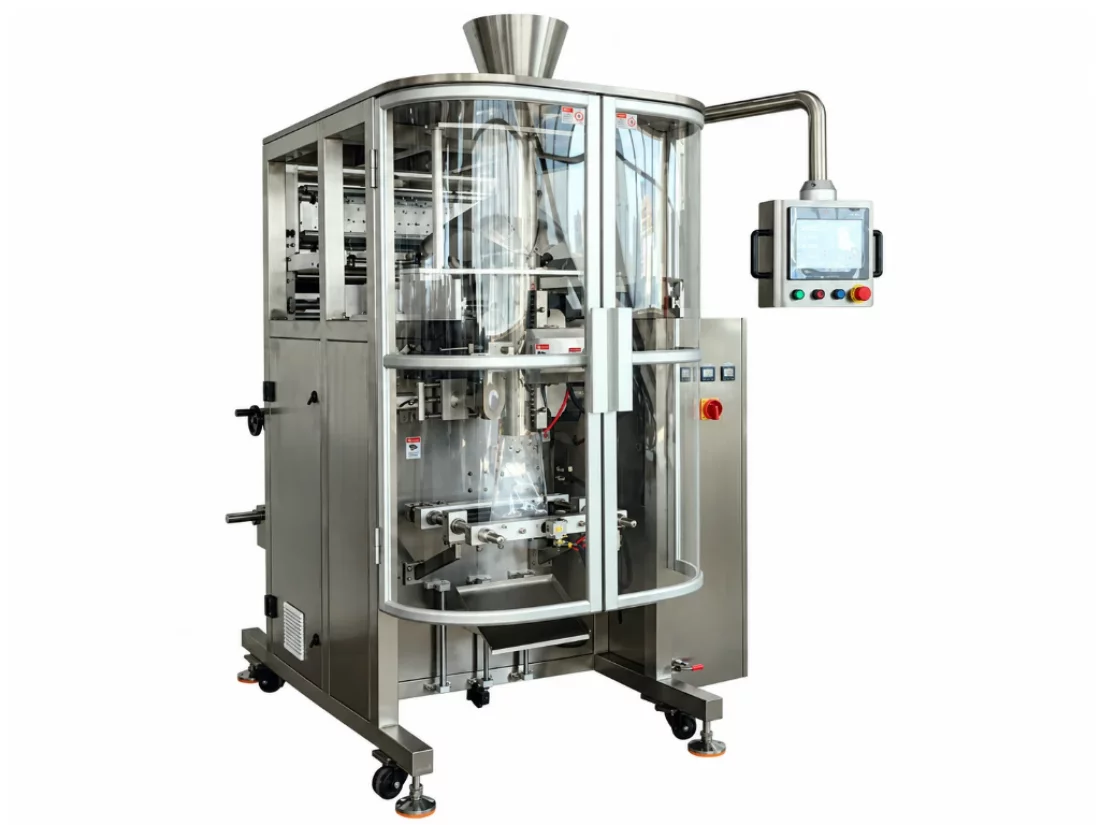

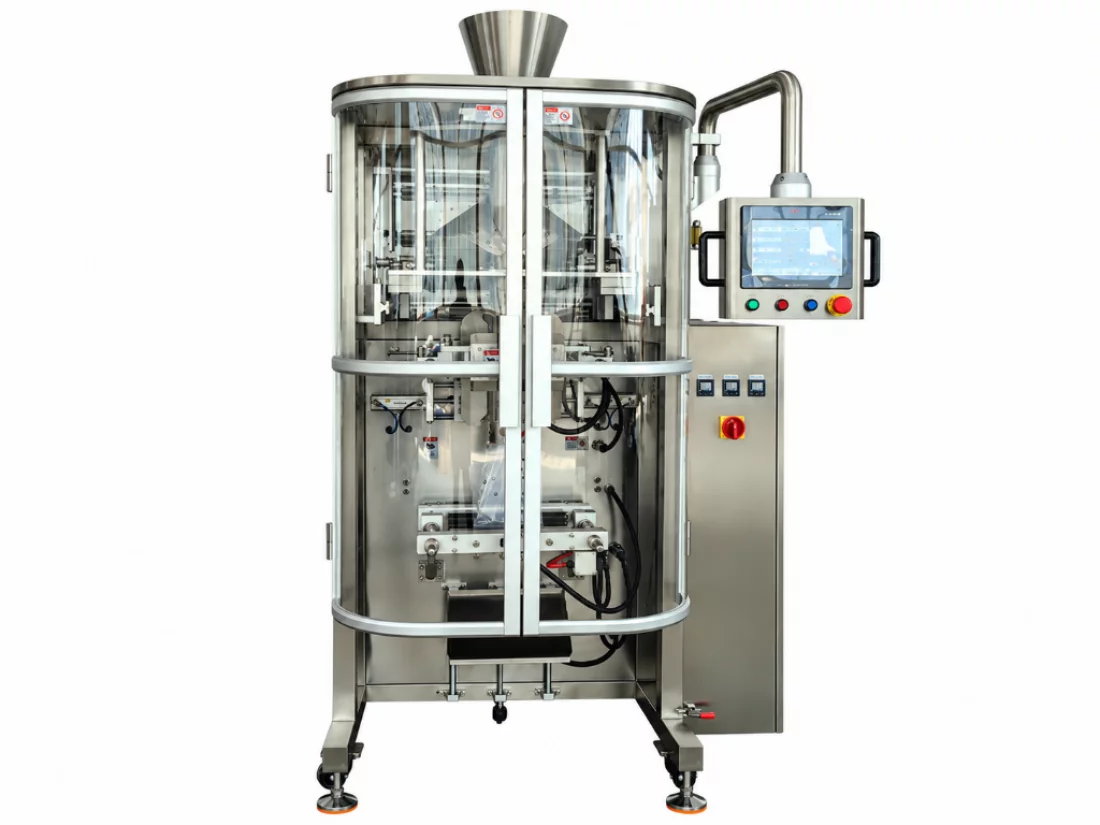

Pillow Bag Machine vertical

Efficient packaging technology for versatile product requirements

Our vertical form-fill-seal machines combine production and packaging into one seamless process. The machines form, fill and seal bags in a single operation – ideal for the automated packaging of powders, liquids and small parts.

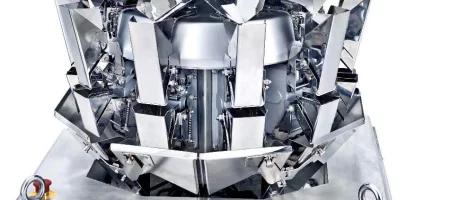

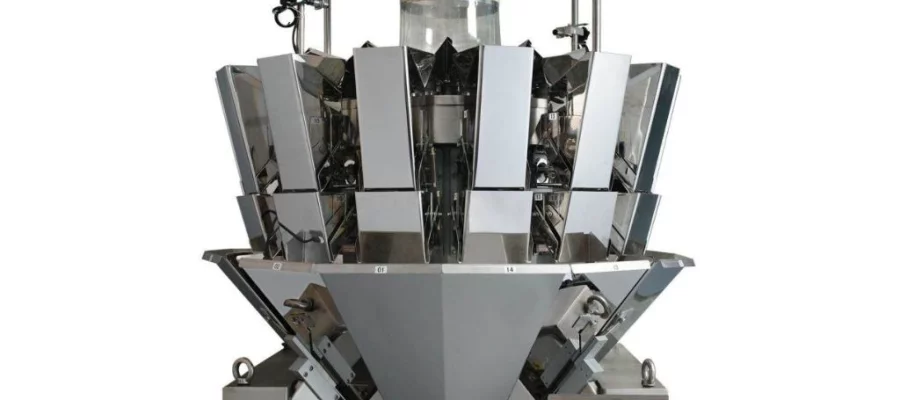

They are used, for example, for baked goods and pasta, snacks, screws and granulated products. Depending on the product requirements, feeding can be manual or fully automatic. Thanks to the simple integration of conveyor and dosing systems (e.g. multihead weighers), our systems can be flexibly integrated into existing production lines.

Individual adaptations to your products are possible at any time – supported by sophisticated technology, intuitive control and a compact design. Since flat film on rolls is used, the packaging costs per bag remain particularly low – ideal for economical and efficient working.

Of course, you can also obtain the right packaging foil from us – everything from a single source.

👁

Technical details and advantages

Stainless steel design for the food sector possible (IP 45, IP 65 washable)
Use for bulk/piece goods, as well as liquids and powders
Film processing even without print marks thanks to bag length measuring device
Simple touchscreen control via colour symbols
Continuously heated sealing systems
Quick and easy product changeover
Printer, labelling and dosing system synchronisation
Integrated piece counter and print mark control
Individually storable product programmes

👁

Areas of application and product examples

Our vertical pillow bag machines are successfully used in numerous industries:

Food industry

Packaging of nachos in tube bags
Packaging of dried meat
Packaging of pasta
Packaging of powder
Packaging of sugar
Snacks and crisps
Coffee and tea
Spices and herbs

Textile industry

Packaging of washcloths in tube bags
Towels
Fabric remnants

Industrial sector

Packaging of machine parts
Screws and small parts
Electronic components

Packaging nachos with a vertical pillow bag machine

Vertical pillow bag machine for hygiene products

Flexible pillow bag solutions for snack packaging

Hygienic packaging for dried meat

Pack machine parts securely in pillow bags

Pack pasta efficiently and hygienically

Vertical pillow bag machine for washing powder

Precise dosing and packaging of sugar products

Model options:

DEPM-420

Model DEPM-420
Packaging speed: approx. 15-50 pieces / minute **
Reel width: 160 - 420 mm
Bag length: 80 - 300 mm
Bag width: 80 - 200 mm*
Power: 220 V / 2,50 kW
Machine weight: approx. 540 kg
DEPM-620

Model DEPM-620
Packaging speed: approx. 10-35 pieces / minute**
Reel width: 240 - 620 mm
Bag length: 120 - 450 mm
Bag width: 110 - 300 mm*
Power: 220 V / 3,2 kW
Machine weight: approx. 700 kg
DEPM-720

Model DEPM-720
Packaging speed: approx. 10-30 pieces / minute**
Reel width: 320 - 720 mm
Bag length: 200 - 500 mm
Bag width: 150 - 350 mm*
Power: 220 V / 3,5 kW
Machine weight: approx. 900 kg

Model	DEPM-420
Packaging speed:	approx. 15-50 pieces / minute **
Reel width:	160 - 420 mm
Bag length:	80 - 300 mm
Bag width:	80 - 200 mm*
Power:	220 V / 2,50 kW
Machine weight:	approx. 540 kg

Model	DEPM-620
Packaging speed:	approx. 10-35 pieces / minute**
Reel width:	240 - 620 mm
Bag length:	120 - 450 mm
Bag width:	110 - 300 mm*
Power:	220 V / 3,2 kW
Machine weight:	approx. 700 kg

Model	DEPM-720
Packaging speed:	approx. 10-30 pieces / minute**
Reel width:	320 - 720 mm
Bag length:	200 - 500 mm
Bag width:	150 - 350 mm*
Power:	220 V / 3,5 kW
Machine weight:	approx. 900 kg

Buy vertical pillow bag machine - Enquire now

Buy a vertical pillow bag machine – enquire now Are you interested in our vertical tube bag machine or would you like some no-obligation advice from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable packaging material for vertical pillow bag machines

Verpackung von Süßigkeiten mit OPP-Siegelfolie

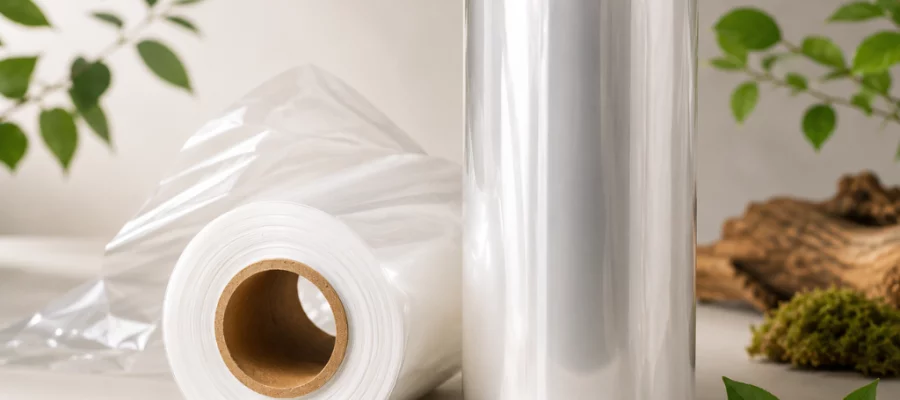

Polyolefin Fine Shrink Film

Polyolefin fine shrink films are among the most popular materials in film packaging. They are extremely thin, highly transparent, and recyclable. Unlike PE films, POF shrink films shrink without wrinkles and fit around your product like a second skin.

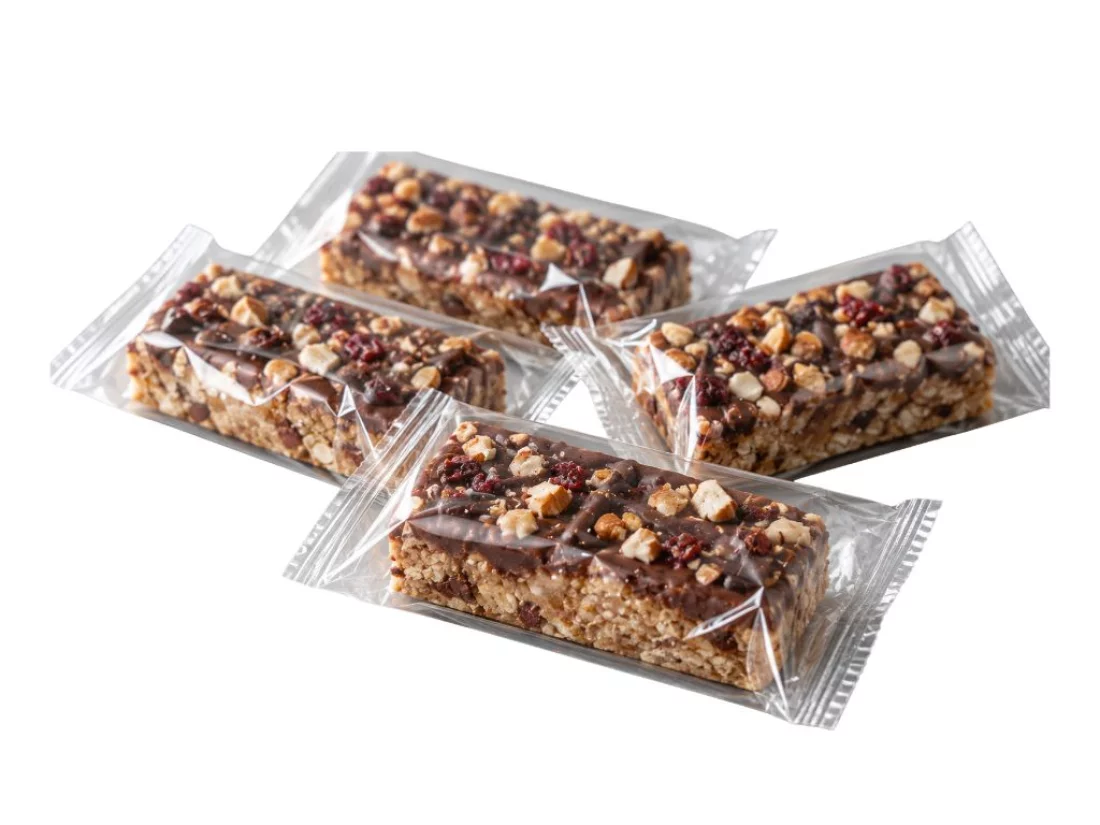

OPP / CPP Sealing Film

Our sealing film is food-safe and environmentally friendly. It is available as OPP film and CPP film and is ideal for hygienic food packaging. Available as flat film, half-tube film, and also as bags.

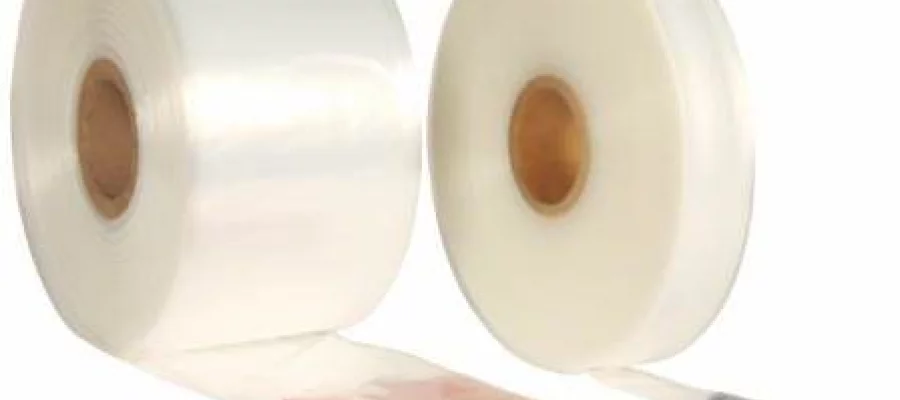

Castelli Film PE-Schlauchfolie mit hoher Reißfestigkeit

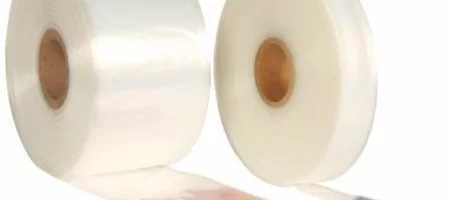

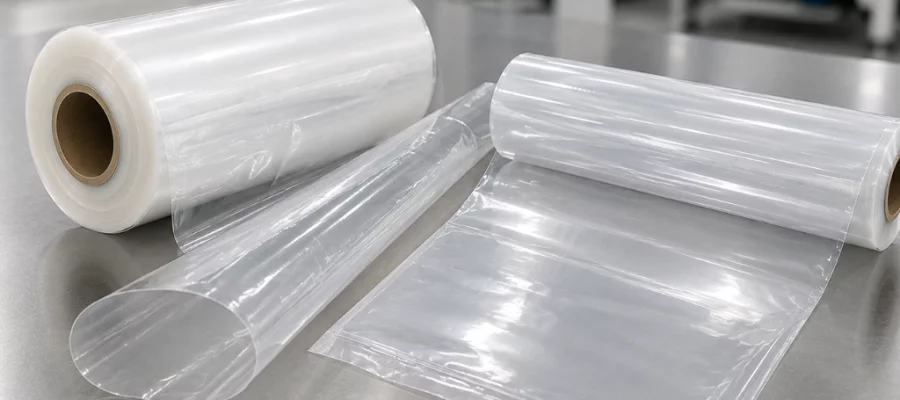

PE Tubular and Flat Film

Our PE films are transparent, food-safe and impress with their high tear resistance and excellent weldability. This makes them ideal for manufacturing flat bags and therefore the perfect protective packaging.
