Automatic Side Sealing Machine (up to 60 cycles/min)

The side sealing machine guarantees extremely stable side seams for all films. The film is processed by three sided sealing of a center folded film (fine shrink film or PE fine shrink film). The use of our film sealing machines enables the user to pack over-sized products. The fast conversion to other product sizes guarantees an efficient and cost-effective workflow. The vertical pillow bag machine impresses by its performance and innovative design at highest standards. Another great advantage of our DEAPSS line is the automatic product centering system. With this function, the machine adjusts automatically to different container sizes and feeds them centrally. The second special feature, the permanently heated side sealing unit, enables the user to pack even over-sized products.

Requests

Data Sheet

Technical Details

cross-sealing and permanent side sealing
simple operation due to digital program selection with individually storable programs
servo-controlled sealing stamp
discrete temperature control for the sealing knifes (lengthwise/crosswise)
bundlings of one or more products possible
automatic winding of film waste
permanently heated and Teflon-coated sealing knifes (kit)

👁

Different Models:

DEAPSS-5020

Model	DEAPSS-5020
Usable films (center folded):	POF / PP / PE
Maximum film thickness:	50 my
End-sealing mechanism:	servo
Sealing knife width (crosswise):	500 mm
Maximum product height:	220 mm
Maximum format width (W + H):	450 mm*
Maximum reel size (L x Ø):	650 x Ø 300 mm
Machine size (L x W x H):	2103 x 1653 x 1410 mm
Conveyor belt speed:	35 m / minute
Connected load (maximum)	3,0 kW
Machine weight (approx.):	410 kg
Sealing process:	up to 60 pieces / minute**

DEAPSS-7520

Model	DEAPSS-7520
Usable films (center folded):	POF / PP / PE
Maximum film thickness:	50 my
End-sealing mechanism:	servo
Sealing knife width (crosswise):	750 mm
Maximum product height:	220 mm
Maximum format width (W + H):	700 mm*
Maximum reel size (L x Ø):	850 x Ø 300 mm
Machine size (L x W x H):	2400 x 2153 x 1510 mm
Conveyor belt speed:	35 m / minute
Connected load (maximum):	4,0 kW
Machine weight (approx.):	610 kg
Sealing process:	up to 40 pieces / minute **

DEAPSS-8530

Model	DEAPSS-8530
Usable films (center folded):	POF / PP / PE
Maximum film thickness:	50 my
End-sealing mechanism:	servo
Sealing knife width (crosswise):	850 mm
Maximum product height:	300 mm
Maximum format width (W + H):	800 mm*
Maximum reel size (L x Ø):	850 x Ø 300 mm
Machine size (L x W x H):	2700 x 2450 x 1510 mm
Conveyor belt speed:	35 m / minute
Connected load (maximum):	4,0 kW
Machine weight (approx.):	700 kg
Sealing process:	up to 40 pieces / minute **

DEAPSS-10020

Model	DEAPSS-10020
Usable films (center folded):	POF / PP / PE
Maximum film thickness:	50 my
End-sealing mechanism:	servo
Sealing knife width (crosswise):	1000 mm
Maximum product height:	220 mm
Maximum format width (W + H):	950 mm*
Maximum reel size (L x Ø):	1150 x Ø 300 mm
Machine size (L x W x H):	2250 x 2350 x 1820 mm
Conveyor belt speed:	35 m / minute
Connected load (maximum):	5,0 kW
Machine weight (approx.):	850 kg
Sealing process:	up to 30 pieces / minute **

*It is not possible to combine all maximum dimensions

**The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling.

Convince yourself of our Side Sealing Machines and make an appointment today with our showroom or with one of our reference customers at +492235 - 47048 - 0 or at info_at_tbs-pack.de.

Additional Options

Film folding device: Longer production periods due to the use of flat films, increase of production capacities due to a higher amount of running meters, faster retooling times, simple application for printed films
Label / print unit: Barcode or label printing, upstream or downstream
Stainless steel construction: Machine components made of stainless steel for direct contact with food
Conveyor belt kiss function: Particularly for small or short product groups
Feed system: Product-specific feed sytems (pusher, side conveyor belt)

Optional Accessories

Verpackung von Süßigkeiten mit OPP-Siegelfolie

Polyolefin Fine Shrink Film

Polyolefin fine shrink films are among the most popular materials in film packaging. They are extremely thin, highly transparent, and recyclable. Unlike PE films, POF shrink films shrink without wrinkles and fit around your product like a second skin.

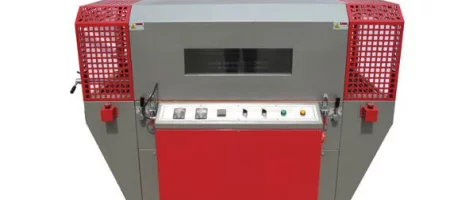

Shrink Tunnels
