Box Motion (Side Sealing Machine, up to 100 cycles/min)

The Box Motion Side Sealing Machine facilitates a continuous packaging process without product downtime (stop&go). The trailing transverse sealing "flies" towards the product and increases the packaging performance significantly compared to a clocking side sealing machine. The film processing happens by three-sided sealing of a center folded film. The integrated side sealing gives you the opportunity to pack both very small and over-sized products in large quantities. The fast conversion to other product sizes guarantees an efficient and cost-effective workflow.

Requests

Data Sheet

Technical Details

permanently heated transverse and side sealing
simple touchscreen operation through color symbols
individually storable programs
bundlings of one ore more products possible
stainless steel version available
automatic winding of film waste
integrated batch counter and print mark control
safety protection cover / emergency signal lamp
continuous longitudinal sealing, no limit on product lengths
servo controlled motor drive for sealing machines and conveyor belts
perforation needle rolls, stored on a rubber roller

👁

Data Sheet Box Motion Side Sealing Machine DEAPSS-5020BM

Model	DEAPSS-5020BM
Usable films (center folded)	POF / PP / PE
Sealing mechanism 1:	longitudinal sealing (pneumatic)
Sealing mechanism 2:	trailing transverse sealing (pneumatic)
Sealing knife width (crosswise):	500 mm
Maximum product height:	199 mm
Maximum format width (W + H):	450 mm*
Maximum reel size (L x Ø):	650 x Ø 300 mm
Machine size (L x W x H):	2250 x 1700 x 1500 mm
Conveyor belt speed:	35 m / minute
Connected load (maximum):	4,5 kW
Supply voltage:	400 V / 3-phases
Sealing process:	up to 100 pieces / minute**
Air pressure (dry air):	6,0 bar
Machine weight:	approx. 450kg

* It is not possible to combine all maximum dimensions

** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling.

Additional Options

Film folding device: Longer production periods by the use of flat films, increased production capacity due to more film running meters, faster changeover times, easy application for printed films

Labeler / Printing unit: Barcode or label printing, upstream or downstream
Stainless steel construction: Stainless steel machine components for direct contact with food
Conveyor belt kissing function: Especially for small/short product lines
Feeding system: Product specific feeding systems (Pusher, lateral conveyor belt, etc)

Get convinced by the quality of our Side Sealing Machines and make an appointment today with our showroom or with one of our reference customers at +492235 - 47048 - 0 or at info_at_tbs-pack.de.

Optional Accessories

Verpackung von Süßigkeiten mit OPP-Siegelfolie

Polyolefin Fine Shrink Film

Polyolefin fine shrink films are among the most popular materials in film packaging. They are extremely thin, highly transparent, and recyclable. Unlike PE films, POF shrink films shrink without wrinkles and fit around your product like a second skin.

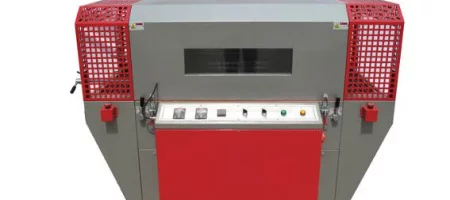

Shrink Tunnels
