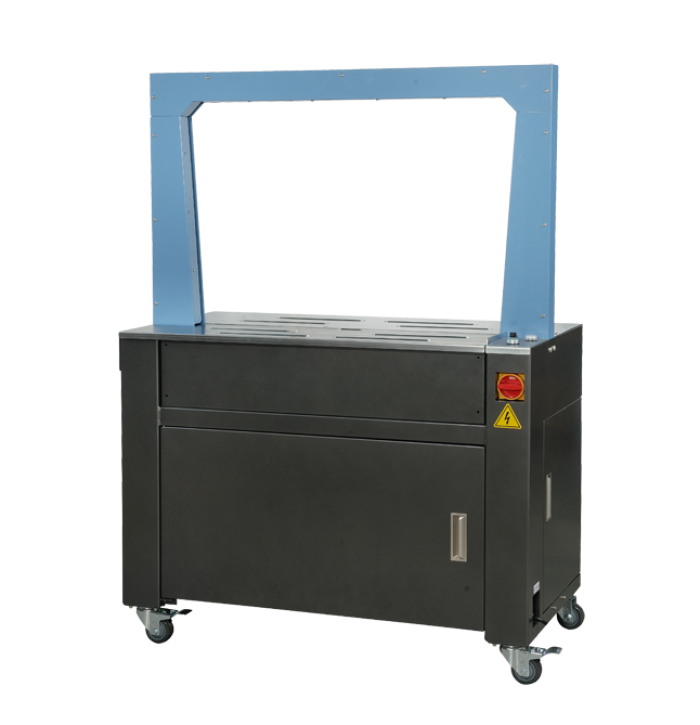

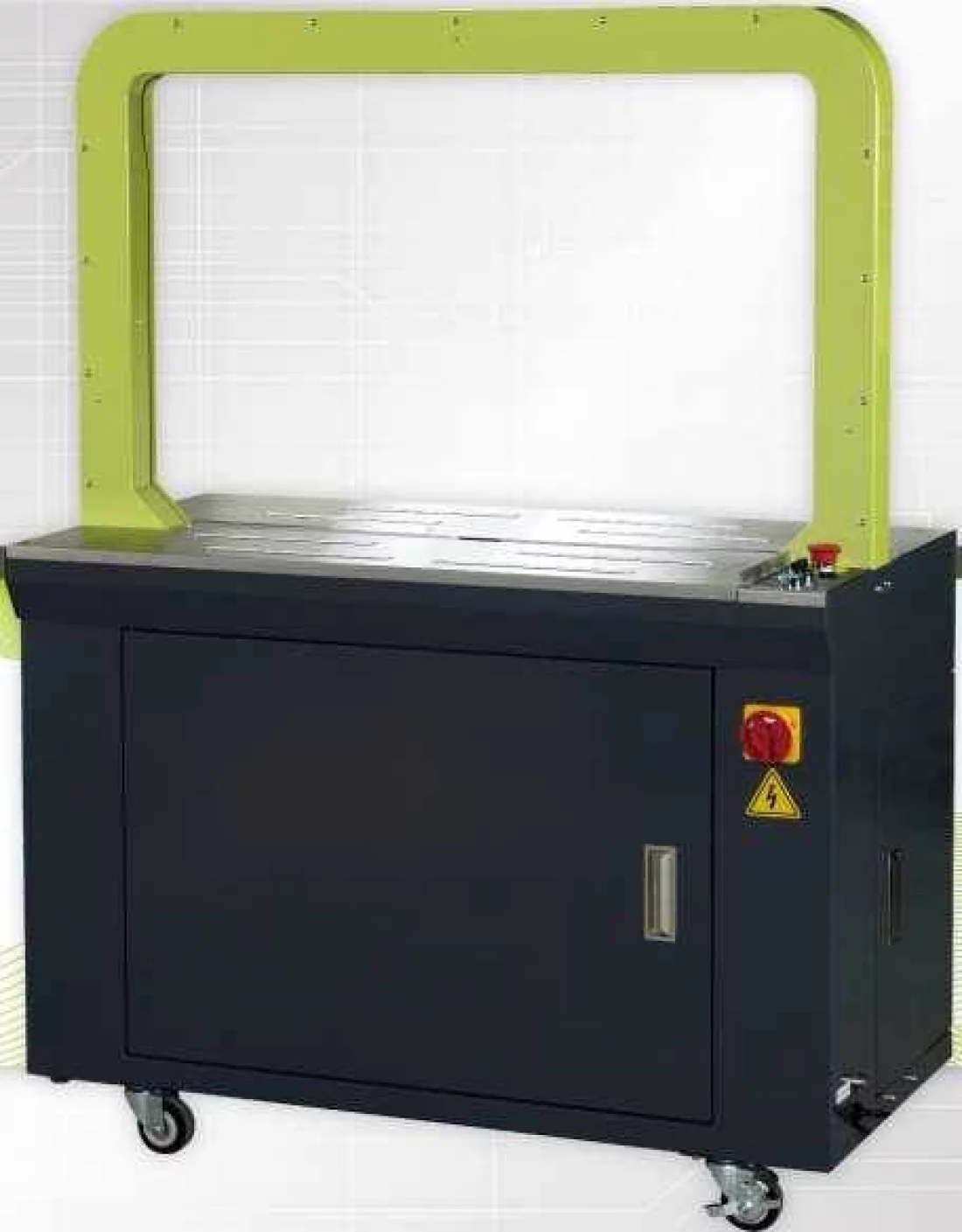

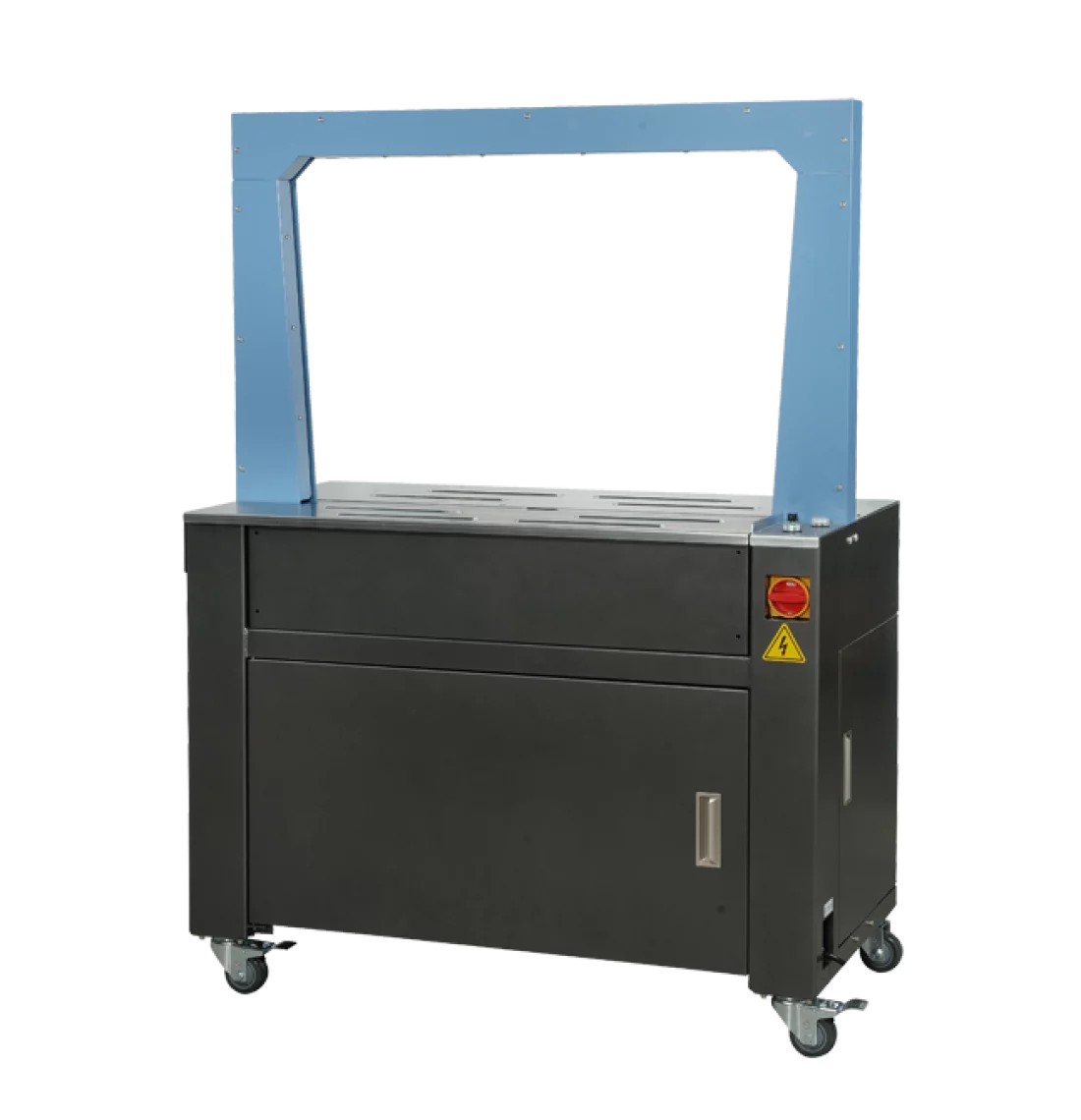

Automatic Strapping Machines

Strapping & Bundling - fast & safe

The high-performance URM-line (semi-or all-automatic) by tbs-pack is particularly characterized by its user-friendly and robust design. Depending on the model, the strapping process can be triggered either manually (via button or foot switch) or automatically (via sensor). Of course, our URM-systems can be integrated into new or already existing conveyor systems.

Customized frame sizes are available on request.

Fields of application: Securing and bundling of cardboard packagings, magazines, boxes, long and loose products etc.

Requests

Data Sheet

Technical Details:

integrated magnetic tape storage, automatic strap conveyance
user-friendly workflow
high throughput due to microprocessor control
adjustable strap tension (manual / electronic)
fast strap changing system (manual / electronic)
height-adjustable supporting feet on rolls
silent fill head

👁

Strapping Machine: Product Video

Different Models:

URM-135
Model URM-135
Max. strap width: 5 mm*
Strap tension: 1- 35 kg
Connected load (max.) 100/110/220/230/240V, 50/60 Hz, 1-Phase
Power consumption: 0,70 kW
Speed: bis 60 straps/ minute**

Features:
- electronic voltage regulation,
- no bundle - no voltage,
- automatic threading of the belt,
- loop ejection,
- 2. belt return,
- free access to the tape guide,
- sensor-controlled heating plate,
- adjustable table height,
Options:
- photo-eye switch,
- rear foot bar switch,
- foot pedal switch,
- arch sensor,
URM-137
Model URM-137
Max strap width: 9 -12 mm*
Strap tension: 1-58 kg
Connected load (max.): 100/110/220/230/240V, 50/60Hz, 1-Phase
Power consumption: 0,70 kW
Speed: bis 55 straps / minute**

Features:
- electronic voltage regulation,
- no bundle - no voltage,
- automatic threading of the belt,
- loop ejection,
- 2. belt return,
- free access to the tape guide,
- sensor-controlled heating plate,
- adjustable table height,
Options:
- photo-eye switch,
- rear foot bar switch,
- foot pedal switch,
- arch sensor,
URM-138
Model URM-138
Max. strap width: 9 - 15 mm*
Strap tension: 5-65 kg
Connected load (max.): 100/110/220/230/240V, 50/60Hz, 1-Phase
Power consumption: 0,60 kW
Speed: bis 36 straps/minute**

Features:
- electronic voltage regulation,
- no package - no voltage,
- automatic threading of the belt,
- loop ejection,
- simple machine hood without coupling,
URM-158
Model URM-158
Max. strap width: 9 - 15 mm*
Strap tension: 5-65 kg
Connected load (max.): 100/110/220/230/240V, 50/60Hz, 1-Phase
Power consumption: 0,60 kW
Speed: bis 36 straps/minute**

Features:
- electronic voltage regulation,
- no package - no voltage,
- automatic threading of the belt,
- loop ejection,
- 2. belt return,
- automatic last tape ejection,

Model	URM-135
Max. strap width:	5 mm*
Strap tension:	1- 35 kg
Connected load (max.)	100/110/220/230/240V, 50/60 Hz, 1-Phase
Power consumption:	0,70 kW
Speed:	bis 60 straps/ minute**

Model	URM-137
Max strap width:	9 -12 mm*
Strap tension:	1-58 kg
Connected load (max.):	100/110/220/230/240V, 50/60Hz, 1-Phase
Power consumption:	0,70 kW
Speed:	bis 55 straps / minute**

Model	URM-138
Max. strap width:	9 - 15 mm*
Strap tension:	5-65 kg
Connected load (max.):	100/110/220/230/240V, 50/60Hz, 1-Phase
Power consumption:	0,60 kW
Speed:	bis 36 straps/minute**

Model	URM-158
Max. strap width:	9 - 15 mm*
Strap tension:	5-65 kg
Connected load (max.):	100/110/220/230/240V, 50/60Hz, 1-Phase
Power consumption:	0,60 kW
Speed:	bis 36 straps/minute**

* It is not possible to combine all maximum dimensions

** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling

Convince yourself of our Strapping Machines and make an appointment today with our showroom or with one of our reference customers at +492235 - 47048 - 0 or at info_at_tbs-pack.de.
