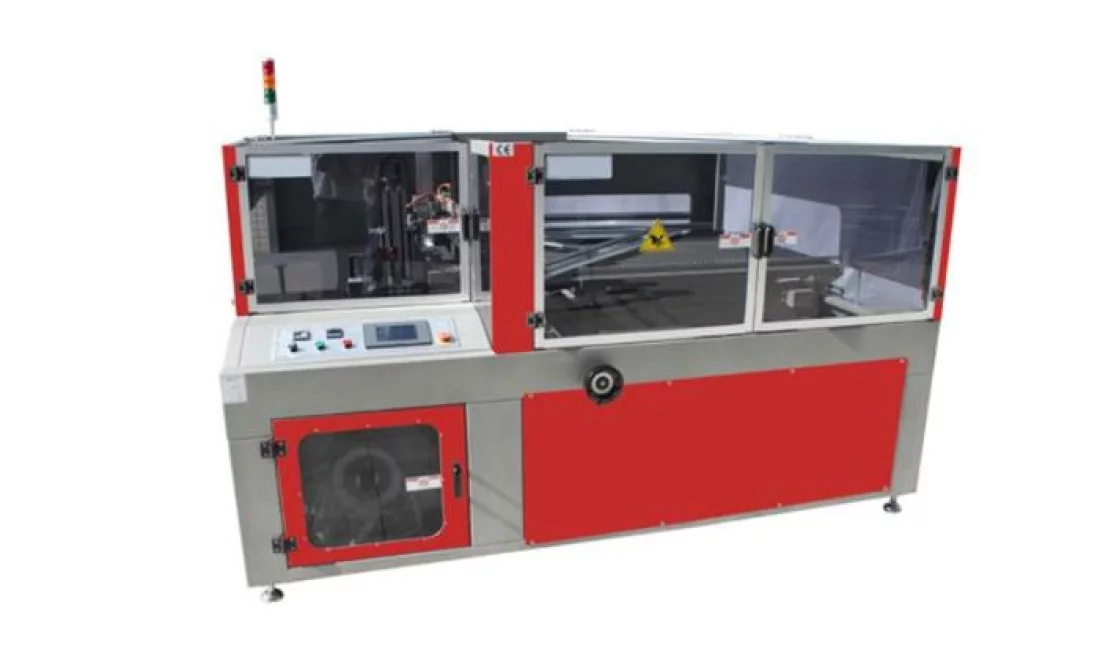

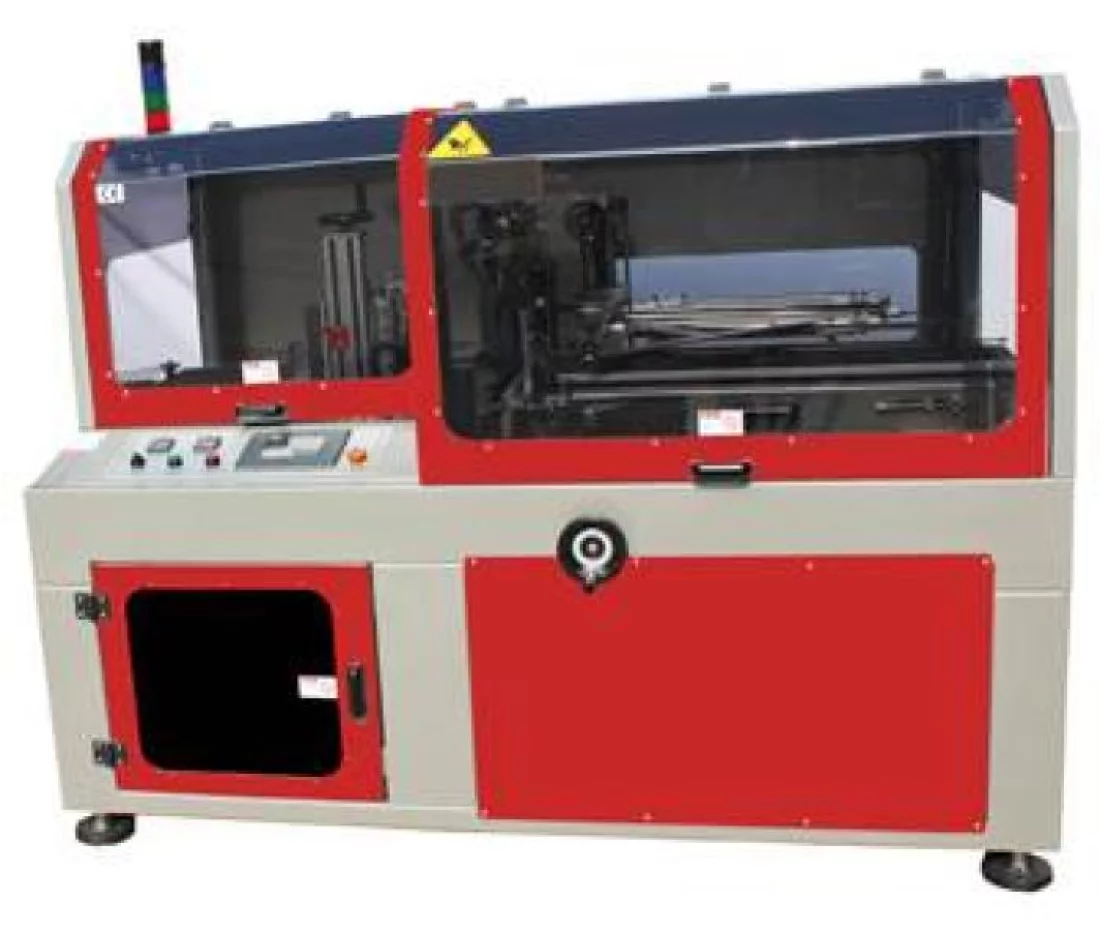

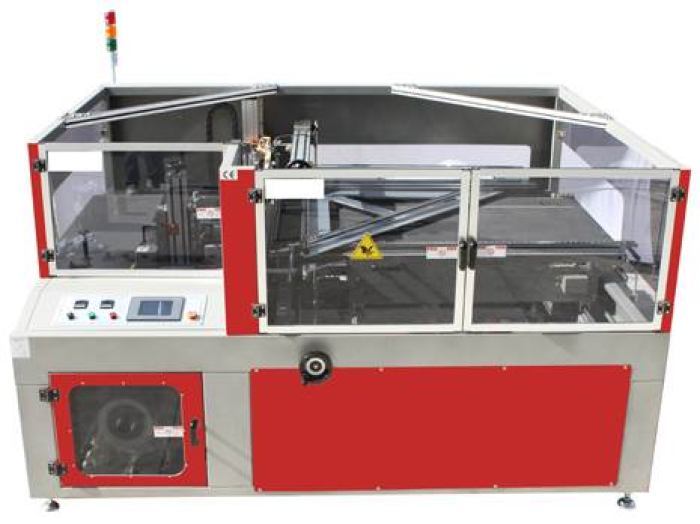

Film Sealing Machine Box Motion

High-performance technology for continuous packaging

The box motion side sealing system enables a continuous packaging process without product downtime (stop & go). The travelling cross sealing ‘flies’ towards the product and significantly increases the packaging performance compared to a clocked side sealing machine. The film is processed by sealing three sides of a half-tube film. The integrated side sealing allows you to package both very small and extra-long products in large quantities. The quick changeover to other product formats guarantees efficient and cost-saving operation.

👁

Technical details

Continuously heated cross and side sealing

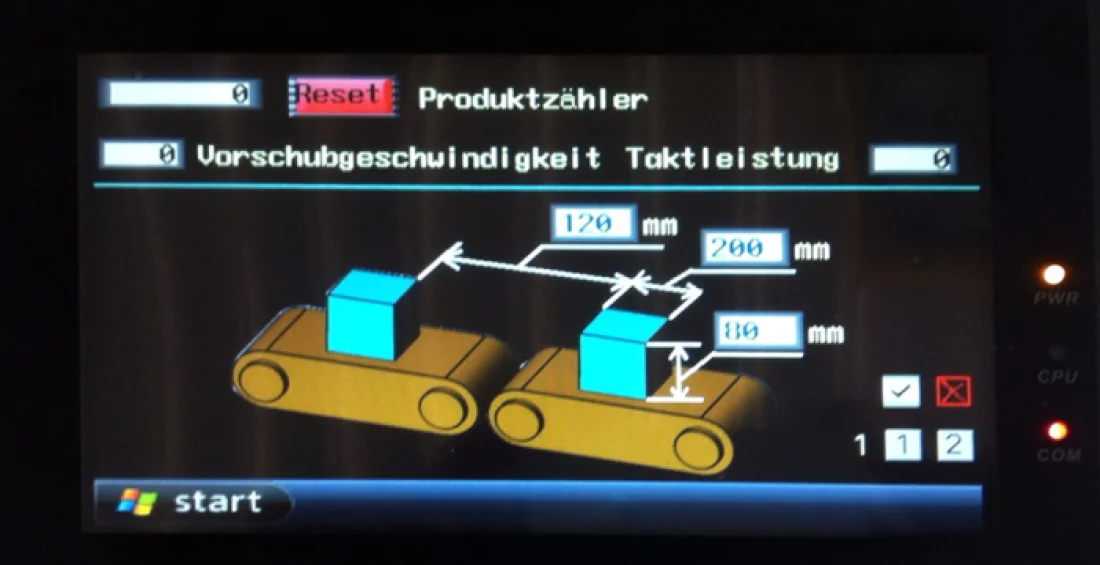

Simple touchscreen operation via colour symbols
Individually storable product programmes
Single and multiple product bundling possible
Stainless steel design possible
Automatic rewinding of excess film
Integrated piece counter and print mark control
Safety covers / alarm signal light
Continuous longitudinal welding, no product length limitation
Servo-controlled motor drive for welding systems and conveyor belts
Perforation needle rollers; mounted on rubber rollers

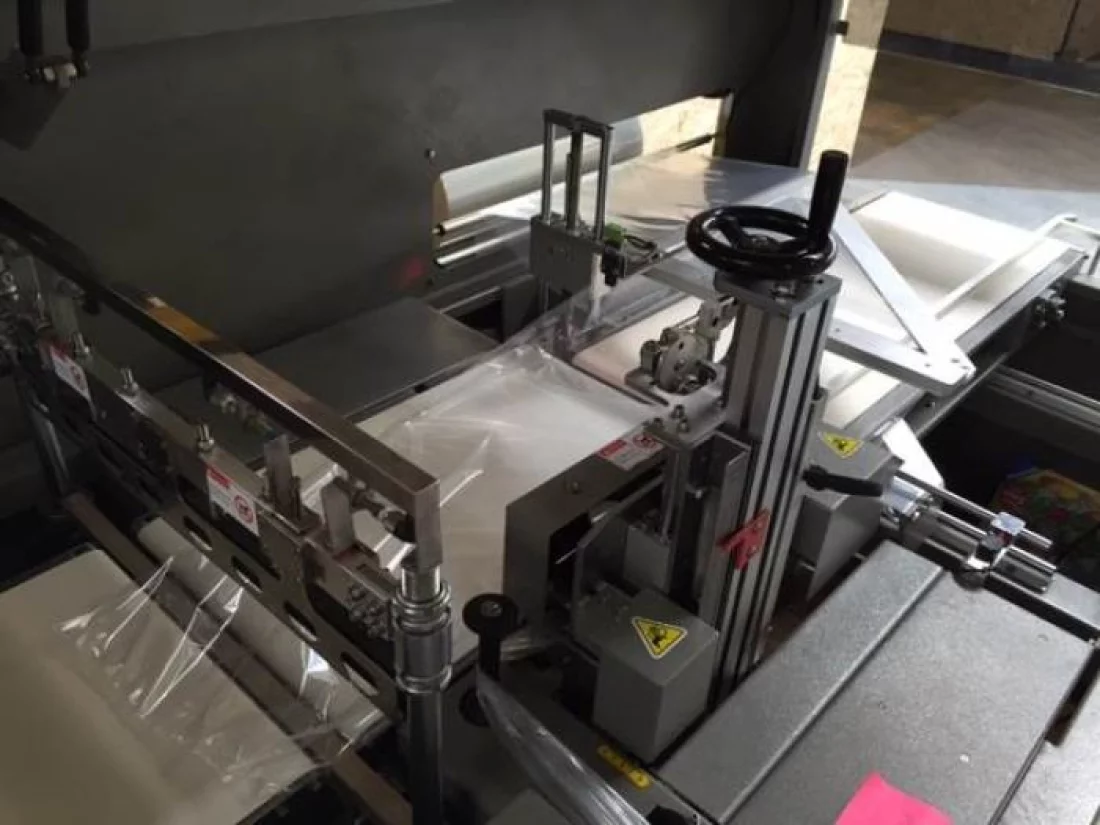

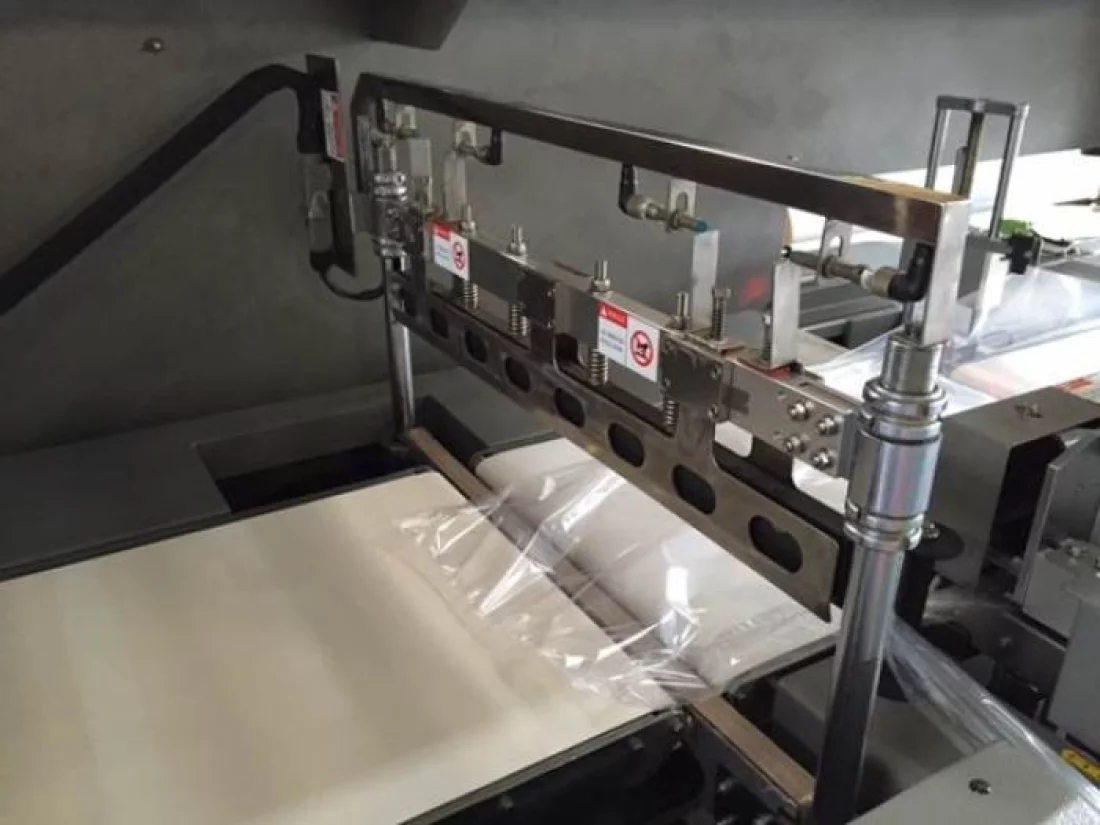

Our Box Motion side sealing machine in use

Pack flyers securely with the Box Motion side sealing machine

Data sheet Box Motion side sealing machine DEAPSS-5025BM

Model	DEAPSS-5025BM
Usable films (center folded)	POF / PP / PE
Sealing mechanism 1:	longitudinal sealing (pneumatic)
Sealing mechanism 2:	trailing transverse sealing (pneumatic)
Sealing knife width (crosswise):	500 mm
Maximum product height:	199 mm
Maximum format width (W + H):	450 mm*
Maximum reel size (L x Ø):	650 x Ø 300 mm
Machine size (L x W x H):	2250 x 1700 x 1500 mm
Conveyor belt speed:	35 m / minute
Connected load (maximum):	4,5 kW
Supply voltage:	400 V / 3-phases
Sealing process:	up to 100 pieces / minute**
Air pressure (dry air):	6,0 bar
Machine weight:	approx. 450kg

Buy box motion side sealing machine - Enquire now

Are you interested in our side sealing system or would you like some no-obligation advice from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.
