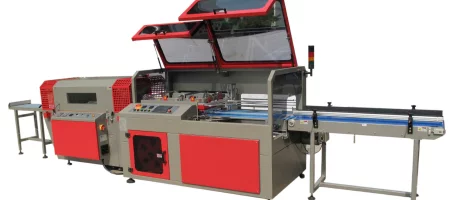

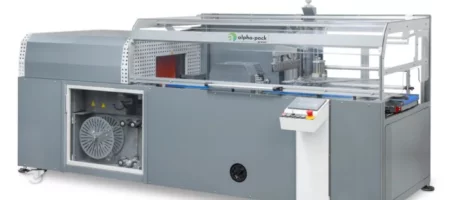

Bundling Machines

For flexible automation in packaging

Ideal for the beverage industry, logistics and multi-packaging

Our fully automatic bundling machines offer flexible and durable solutions for bundling trays or beverage packs. Thanks to the sensor-controlled work process and continuous heating during sealing, even particularly long products, such as panels, can be processed in shrink film packaging at high cycle rates. The user-friendly control panel of the machines also ensures effective and easy handling. Our bundling machines are also compatible with all shrink tunnels.

Technical details

  • Teflon-coated sealing blades, continuously heated
  • Safety guards / alarm signal light
  • Can be combined with a shrink tunnel
  • Single and multiple product bundling possible (no product length restrictions)
  • Easy operation via colour symbols
  • Adjustable temperature control of the sealing blade
  • Separately adjustable conveyor belt speeds for infeed and outfeed belts
  • Robust, durable design thanks to steel frame construction

Additional options

Further technical data:

  • Easy operation thanks to digital programme selection
  • Robust, durable design thanks to steel frame construction
  • Sensor-controlled working process
  • Continuous heating
  • No restrictions on product lengths
  • Compatible with all shrink tunnels
  • CE marking

Our bundling machines in use

Securely shrink-wrap paint buckets with fine shrink film

Reliable shrink technology for can packaging

Securely seal and bundle the boiler with shrink film

Robust packaging solutions for furniture products

Model options:

  • DEAPW-6040D
    ModelDEAPW-6040D
    Usable films:POF / PE
    Maximum film thickness:120 my
    Maximum sealing widths:600 mm
    Maximum product height:350 mm
    Maximum reel lengths (L x Ø):600 x Ø 300 mm
    Machine size (L x W x H):1339 x 1070 x 2137 mm
    Connected load (maximum):1,5 kW
    Supply voltage:400 V / 3-phases
    Machine weight (approx.):460 kg
    Conveyor belt speed:12 m / minute
    Air pressure (dry air):optional / 5,5 bar
    Sealing process:up to 20 pieces / minute*
  • DEAPW-8040D
    ModelDEAPW-8040D
    Usable films:POF / PE
    Maximum film thickness:120 my
    Maximum sealing width:800 mm
    Maximum product height:400 mm
    Maximum reel length (L x Ø):800 x Ø 300 mm
    Machine size (L x W x H):1339 x 1270 x 2137 mm
    Connected load (maximum):2,0 kW
    Supply voltage:400 V / 3-phases
    Machine weight (approx.):530 kg
    Conveyor belt speed:12 m / minute
    Air pressure (dry air):optional / 5,5 bar
    Sealing process:up to 20 pieces / minute*
  • DEAPW-10040D
    ModelDEAPW-10040D
    Usable films:POF / PE
    Maximum film thickness:120 my
    Maximum sealing width:1000 mm
    Maximum product height:400 mm
    Maximum reel length (L x Ø):1000 x Ø 300 mm
    Machine size (L x W x H):1936 x 1470 x 2137 mm
    Connected load (maximum):2,5 kW
    Supply voltage:400 V / 3-phases
    Machine weight (approx.):750 kg
    Conveyor belt speed: 12 m / minute
    Air pressure (dry air): optional / 5,5 bar
    Sealing process: up to 18 pieces / minute *
  • DEAPW-12540D
    ModelDEAPW-12540D
    Usable films:POF / PE
    Maximum film thickness:120 my
    Maximum sealing width:1250 mm
    Maximum product height:400 mm
    Maximum reel length (L x Ø):1250 x Ø 300 mm
    Machine size (L x W x H):1936 x 1709 x 2137 mm
    Connected load (maximum):3,0 kW
    Supply voltage:400 V / 3-phases
    Machine weight (approx.):950 kg
    Conveyor belt speed:12 m / minute
    Air pressure (dry air):optional / 6,0 bar
    Sealing process:up to 16 pieces / minute*

Buy bundling machines – Enquire now

Are you interested in our bundling machines or would you like some no-obligation advice from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable film for bundling machines

Suitable accessories for bundling machines

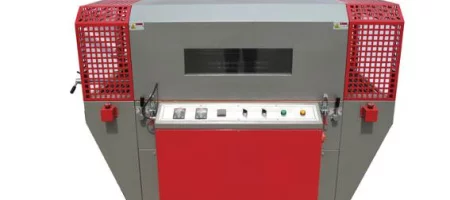

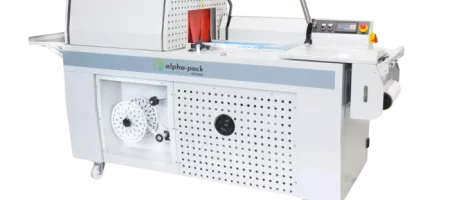

Film sealing machines and shrink tunnels
