Side Sealing Machine

Flexible use for medium product volumes and all common film types

Our side sealing machine guarantees extremely stable side seams for all types of film. The film is processed by three-sided sealing of a half-tube film (fine shrink film or PE shrink film). The use of our automatic film sealing machines allows the user to package all products – even those that are extra-long. Quick changeovers to other product formats guarantee efficient and cost-saving operation. The alpha-pack tube bag machine impresses with its performance and innovative design of the highest standard.

The APSS series impresses with its automatic product centring system. This function allows the machine to adjust to different container sizes and feed them in a centred position. A second special feature is the continuously heated side sealing unit, which allows the user to pack even extra-long products in film.

👁

Technical details

Cross sealing and permanent side sealing
Super easy to use with digital programme selection and customisable programmes
Servo-controlled welding punch
Separate temperature control for the welding blades (longitudinal/transverse)
Single or multiple product bundling possible
Automatic winding of film scraps
Continuously heated and Teflon-coated welding blades (set)

Packaging soap with automatic side sealing machine

Bundling mascara with automatic side sealing machine

Bundling perfume boxes with a side sealing machine

Bundling gift ribbon rolls with side sealing machine

Packaging toast with side sealer and shrink tunnel

Shrinking canvases with side sealer and shrink tunnel

Model options:

DEAPSS-4015

Model	DEAPSS-4015
Usable films (center folded):	POF / PP / PE
Maximum film thickness:	50my
End-sealing mechanism:	pneumatic
Sealing knife width (crosswise):	400 mm
Maximum product heigth:	150 mm
Maximum format width (W + H):	350 mm*
Maximum reel size (L x Ø):	500 x Ø 300 mm
Machine size (L x W x H):	1582 x 1500 x 1410 mm
Conveyor belt speed:	35 m / minute
Connected load (maximum):	2,5 kW
Machine weight (approx.):	385 kg
Sealing process:	up to 40 pieces / minute**

DEAPSS-5022

Model	DEAPSS-5022
Usable films (center folded):	POF / PP / PE
Maximum film thickness:	50 my
End-sealing mechanism:	servo
Sealing knife width (crosswise):	500 mm
Maximum product height:	220 mm
Maximum format width (W + H):	450 mm*
Maximum reel size (L x Ø):	650 x Ø 300 mm
Machine size (L x W x H):	2103 x 1653 x 1410 mm
Conveyor belt speed:	35 m / minute
Connected load (maximum)	3,0 kW
Machine weight (approx.):	410 kg
Sealing process:	up to 60 pieces / minute**

DEAPSS-7522

Model	DEAPSS-7522
Usable films (center folded):	POF / PP / PE
Maximum film thickness:	50 my
End-sealing mechanism:	servo
Sealing knife width (crosswise):	750 mm
Maximum product height:	220 mm
Maximum format width (W + H):	700 mm*
Maximum reel size (L x Ø):	850 x Ø 300 mm
Machine size (L x W x H):	2400 x 2153 x 1510 mm
Conveyor belt speed:	35 m / minute
Connected load (maximum):	4,0 kW
Machine weight (approx.):	610 kg
Sealing process:	up to 40 pieces / minute **

DEAPSS-10022

Model	DEAPSS-10022
Usable films (center folded):	POF / PP / PE
Maximum film thickness:	50 my
End-sealing mechanism:	servo
Sealing knife width (crosswise):	1000 mm
Maximum product height:	220 mm
Maximum format width (W + H):	950 mm*
Maximum reel size (L x Ø):	1150 x Ø 300 mm
Machine size (L x W x H):	2250 x 2350 x 1820 mm
Conveyor belt speed:	35 m / minute
Connected load (maximum):	5,0 kW
Machine weight (approx.):	850 kg
Sealing process:	up to 30 pieces / minute **

DE4220C

Model	DE4220C
Maximum packaging dimensions:	B: 300 B: 500 H: 180 mm
Jaw opening:	200mm
Belt speed:	0-30 mk/min adjustable
Jaw length:	420 mm
Working height:	860 mm
Conveyor belt width:	350 mm
Minimum package width:	50 mm
Maximum film roll width:	550 mm
Film thickness:	Filmdicke:15-60 micrometres
Available film types:	POF, PE
Maximum roll diameter:	Ø 250 mm
Weight (net/pallet):	965 kg / 1060 kg

Buy side sealing machine (up to 60 cycles/min) - Enquire now

Are you interested in our side sealing machine or would you like to receive a no-obligation consultation from our packaging experts? Contact us at +49 - 2235-79479-0 or send an email to info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable packaging material for side sealing machines

Verpackung von Süßigkeiten mit OPP-Siegelfolie

Polyolefin Fine Shrink Film

Polyolefin fine shrink films are among the most popular materials in film packaging. They are extremely thin, highly transparent, and recyclable. Unlike PE films, POF shrink films shrink without wrinkles and fit around your product like a second skin.

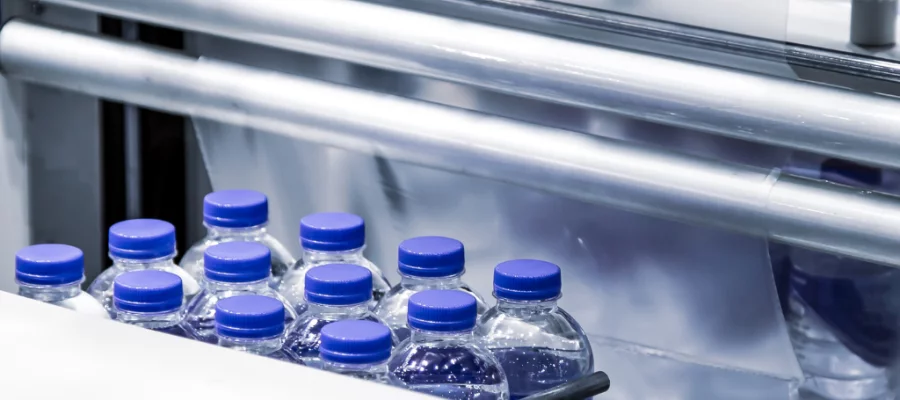

Getränke im Tray verpackt mit Polyolefin Feinschrumpffolie

PE Shrink Film

Our PE shrink film provides your products with optimum protection against external influences such as dirt and even acids and alkalis. It is food-safe, highly transparent and has high tear resistance.

Unlike the L-bar sealer, which seals the film on two sides simultaneously, the side sealing machine operates continuously: the product is wrapped in film and the longitudinal seam is sealed on the side – perfect for series production without product downtime.

Ideal for:

Magazines, books, game blocks
Baked goods, frozen foods, confectionery
Cosmetic products, household or industrial items

Its flexible product guidance makes it particularly suitable for long or large formats.

Depending on product size, film type and peripherals, the machine can achieve up to 60 cycles per minute. Integrated sensors and automated product feeding ensure reliable and consistent packaging.

Side sealing machines process:

Polyolefin fine shrink film (POF)
Recyclable PE films
OPP/CPP films

We can supply you with suitable film qualities directly from the manufacturer – including recycled and bio-based shrink foil.

Yes – for wrinkle-free, close-fitting packaging, we recommend combining it with a shrink tunnel. This gives your product a high-quality sales appearance while providing optimum protection.

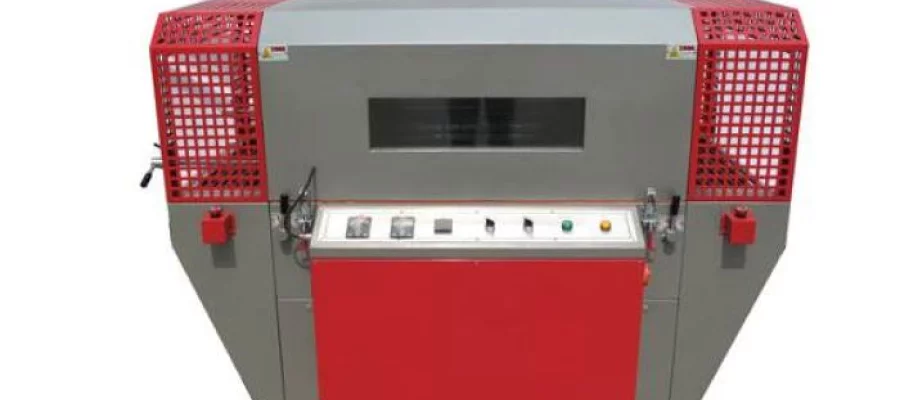

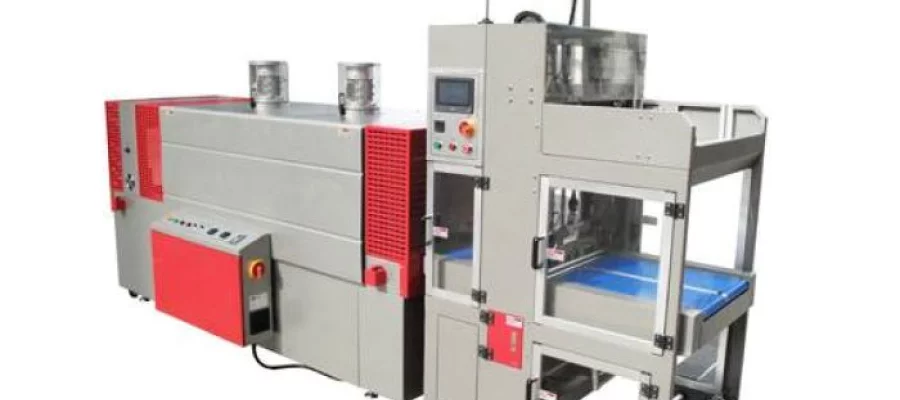

Discover our Eco and Pro shrink tunnel systems.
