Hood-Type Shrink Units

Ideal entry-level model for economical packaging of smaller quantities

The hood-type shrink unit is the ideal entry-level model for small quantities. The hood shrink machines (HSM series) are characterised by their innovative sealing and shrinking technology. This allows your products to be packaged efficiently and quickly in a single step (2-in-1 effect: sealing + shrinking). The ergonomic advantages of the hood shrink machines compared to conventional machines are their excellent sealing properties during film separation (slip-stick effect) and a constant heat circulation process for an optimal shrink appearance.

👁

Technical details and functional features

2-in-1 effect: welding and shrinking in a single operation
Low-maintenance pulse belt technology for long-term, trouble-free operation
Electromechanical hood closure with holding magnet for secure closure
Digitally adjustable selection programmes: shrinking temperature, sealing, cooling and shrinking time
Movable film carriage including film perforation unit for easy material change
Height-adjustable product support grid for optimum adaptation to different product sizes
Includes base frame on wheels and film basket for flexible positioning
Low energy consumption thanks to ‘Shrink Smart Mode’ for economical operation

👁

Direct applications at a glance

Print products: book packaging, catalogues, brochures
Media: CDs, DVDs, data storage
Office supplies: Cardboard boxes, mailings, document packages
Food: Small containers, sample packs, collective packaging
Small parts: Assortments, bundles, spare parts sets
Cosmetics: Product sets, gift packaging, display units
Household goods: Cutlery sets, kitchen utensils, small items

Packing cookies with a hood-type shrink unit

Pack briquettes securely with the hood-type shrink unit

Shrinking cables with a hood-type shrink unit

Shrinking Bach flowers in tins

Model options

HSM-320

Model:	HSM-320
Usable films (center folded):	POF / PP / PE / PVC
Maximum film thickness:	50 my
Sealing frame size:	320 x 460 mm
Maximum product dimension:	440 x 300 x 200 mm*
Maximum reel size (L x Ø):	400 x Ø 250 mm*
Machine size:	1020 x 660 x 1190 mm
Connected load (maximum):	3,2 kW
Supply voltage:	230 V
Machine weight (approx.):	99 kg
Shrinking process:	up to 6 pieces/ minute**

HSM-420

Model:	HSM-420
Usable films (center folded):	POF / PP / PE / PVC
Maximum film thickness:	50 my
Sealing frame size:	420 x 550 mm
Maximum product dimension:	545 x 400 x 300 mm*
Maximum reel size (L x Ø):	600 x Ø 250 mm*
Machine size:	1320 x 820 x 1190 mm
Connected load (maximum):	3,77 kW
Supply voltage:	230 V
Machine weight (approx.):	151 kg
Shrinking process:	up to 6 pieces/ minute**

HSM-620

Model:	HSM-620
Usable films (center folded):	POF / PP / PE / PVC
Maximum film thickness:	50my
Sealing frame size:	620 x 800 mm
Maximum product dimension:	780 x 600 x 300 mm*
Maximum reel size (L x Ø):	800 x Ø 250 mm*
Machine size:	1575 x 1020 x 1190 mm
Connected load (maximum):	5,3 kW
Supply voltage:	400 V / 3-Phasen
Machine weight (approx.):	235 kg
Shrinking process:	up to 6 pieces/ minute**

Buy hood-type shrink units - Enquire now

Are you interested in our hood-type shrink units or would you like to receive non-binding advice from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable packaging material for hood-type shrink units

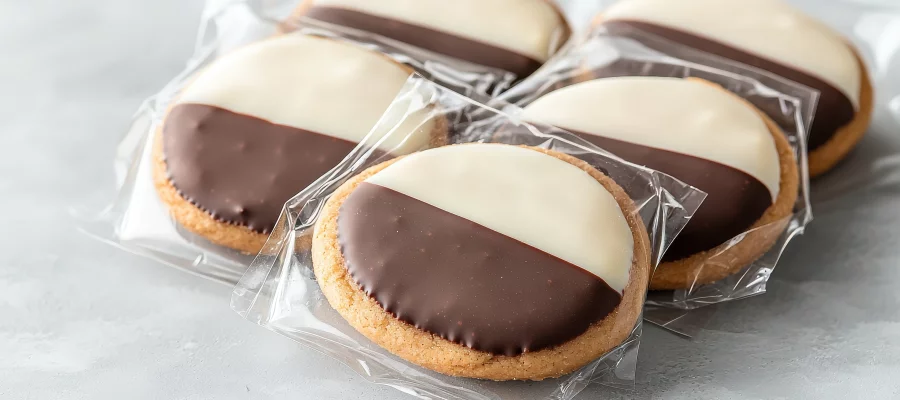

Verpackung von Süßigkeiten mit OPP-Siegelfolie

Polyolefin Fine Shrink Film

Polyolefin fine shrink films are among the most popular materials in film packaging. They are extremely thin, highly transparent, and recyclable. Unlike PE films, POF shrink films shrink without wrinkles and fit around your product like a second skin.

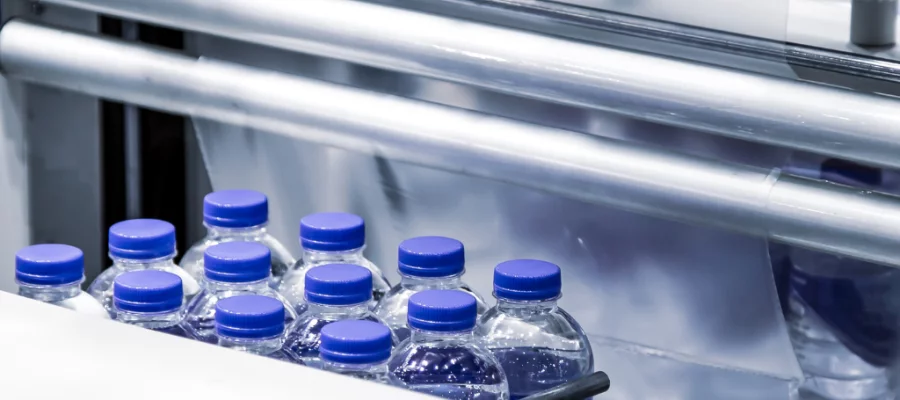

Getränke im Tray verpackt mit Polyolefin Feinschrumpffolie

PE Shrink Film

Our PE shrink film provides your products with optimum protection against external influences such as dirt and even acids and alkalis. It is food-safe, highly transparent and has high tear resistance.
