Sleeve-Labeling Machines

The sleeve-labeling machines by tbs-pack are waterproof, corrosion-resistant and can be used for different types of bottles. Therefore, round, square, flat, domed and cup-shaped bottles can be labeled. Furthermore, our sleeve-labeling machines can be combined perfectly with our sleeve shrink tunnels.

Requests

Data Sheet

Technical Details:

convenient for round, square, flat, domed and cup-shaped bottles
waterproof and corrosion-resistant
separate positioning pillars for a stable sleeve print
label monitoring photocell device
push button control for manual operation
the position of the infeed board can be freely selected as required

👁

SLA 150B: Water bottles with printed sleeves

SLA-250: Sealing of little bottles

SteamTunnel with Sleeve-Labeling-Machine: Bottle Labeling

Steam Tunnel with Sleeve-Labeling-Machine: Bottle Labeling

Different Models:

DESLEEVER-MDR015

Model	DESLEEVER-MDR015
Connected Load:	380V, 3-phases
Sleeve Speed:	up to 150 cycles/min (depending on the product)
Sleeve Diameter:	28mm - 100mm*
Sleeve Length:	25mm - 260mm*
Sleeve Thickness:	0.03 - 0.13 mm
Product Height:	50mm - 280mm
Sleeve Materials:	PVC, PET, OPS

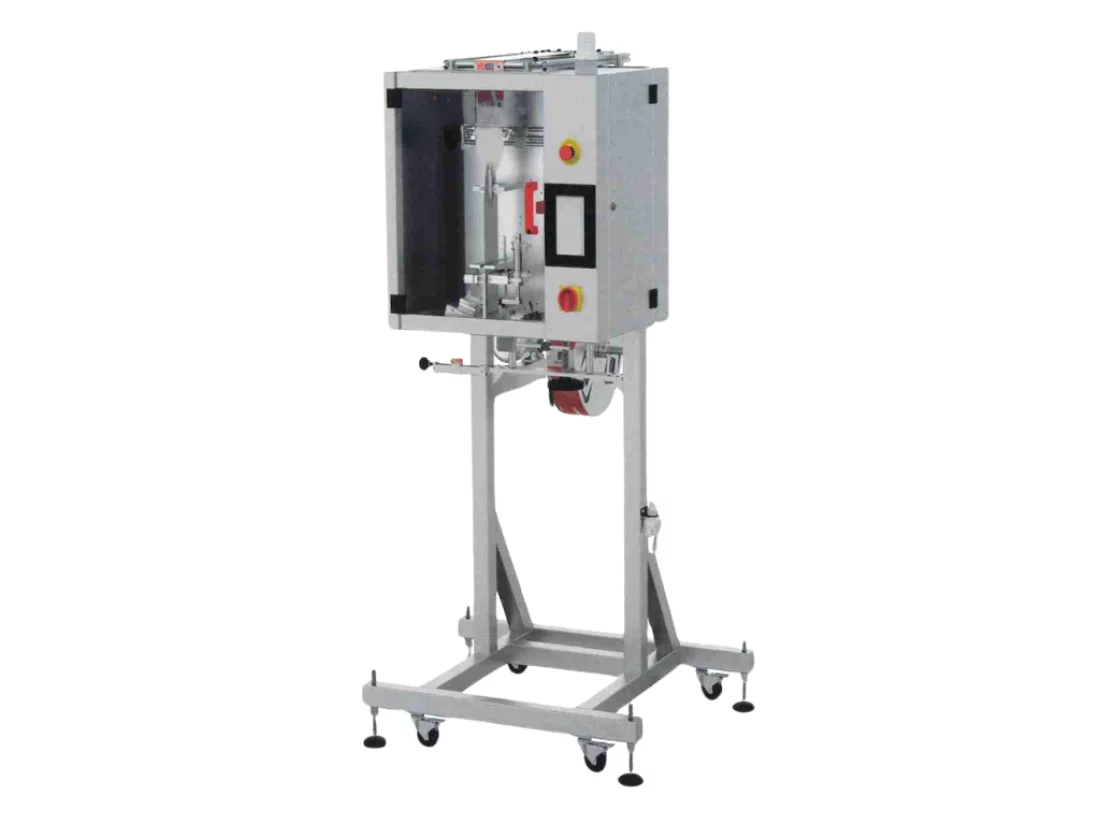

SLA-150B

Model	SLA-150B
Power supply:	1,5 kW
Connected load:	380V, 3 phases
Packing speed:	approx. 20-100 pieces/ minute**
Machine size (L x W x H):	2000 x 950 x 2000 mm
Minimum diameter:	30 mm
Maximum diameter:	120 mm*
Minimum sleeve length:	25 mm
Maximum sleeve length:	280 mm*
Sleeve thickness:	0.03 - 0.13 mm
Sleeve width:	48-185 mm*
Sleeve materials:	PVC, PET, OPS

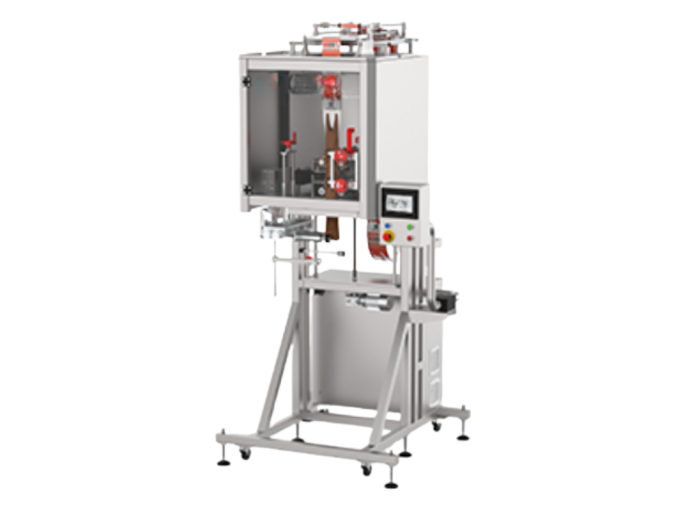

SLA-250

Model	SLA-250
Power supply:	3,0 kW
Connected load:	380V, 3 phases
Packing speed:	approx. 50-200 pieces / minute**
Machine size (L x W x H):	2000 x 950 x 2000 mm
Minimum diameter:	30 mm
Maximum diameter:	120 mm*
Minimum sleeve length:	25 mm
Maximum sleeve length:	280 mm*
Sleeve thickness:	0.03 - 0.13 mm
Sleeve width;	48-185 mm*
Sleeve materials:	PVC, PET, OPS

* It is not possible to combine all maximum dimensions

** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling

Optional Accessories:

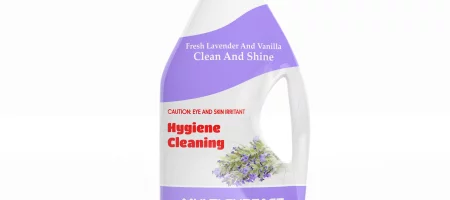

PET Schrumpfsleeve Verpackung für Waschmittel

Shrink Sleeves

PVC and PET shrink sleeves are perfect for packaging and sealing your products. The customizable film adapts perfectly to the product being packaged, such as cans, bottles, and tubes, when heated. Ideal for full-body decoration and originality protection.

Convince yourself of our Sleeve-Labeling Machines and make an appointment today with our showroom or with one of our reference customers at +492235 - 47048 - 0 or at info_at_tbs-pack.de.
