Self-Driving Stretchrobots SWR-Line

Mobile pallet wrapper for maximum flexibility without mains connection

Automatic wrapping machine for autonomous pallet securing

The self-propelled, mains-independent stretch robot is characterised by its compactness and user-friendliness. It has the innovative and patented property of electrically controlled steering and also impresses with its extremely compact design. This means that only very little space is required around the pallet during stretching. The stretch robot navigates around the stationary pallet and stretches the pallet load. Different pallet sizes are also processed automatically. This enables mobile use at different workstations and the stretching of oversized pallets. The machine stops automatically if there are any obstacles in its path.

Advantages of mobile stretchrobots

  • Unrestricted flexibility: Can be used at different locations without fixed installation
  • Space-saving solution: No fixed turntable or winding station required
  • Versatile use: Suitable for special formats and oversized pallets
  • Energy efficiency: Battery operation for several working days without intermediate charging
  • Cost optimisation: One machine for several palletising stations
  • Autonomous operation: Automatic size detection and obstacle avoidance
  • Easy operation: Intuitive control without special training

Ideal areas of application

The mobile stretchrobot is particularly suitable for:

Flexible logistics environments

  • Multiple packaging stations in rotation
  • Warehouses with limited space
  • Seasonal packaging stations
  • Pop-up logistics centres

Special palletising tasks

  • Oversized pallets and special formats
  • Unstable loads with special wrapping requirements
  • Sensitive products with adjusted wrapping tension
  • Just-in-time logistics

Cross-industry uses

  • Construction industry with changing locations
  • Agricultural businesses with seasonal requirements
  • Production companies with multiple packaging stations
  • Freight forwarders and transport service providers

Model options

  • SWR-630
    Model:SWR-630
    Max. machine size (L x W x H):1.758 x 1.175 x 2.570 mm
    Electronic tension control:3-stage (top, middle, bottom)
    Pallet width:min. 600 mm - max. ∞ mm*
    Pallet length:min. 600 mm - max. ∞ mm*
    Max. pallet heigth:2.200-2.800 mm*
    Rotation speed:20-90 m/min
    Battery charger:110 - 240 V
    Pre-Stretch:200% & 250%

  • SWR-630 Plus
    Model:SWR-630 Plus
    Max. machine size (L x W x H):1.758 x 1.175 x 2.570 mm
    Electronic tension control:3-stage (top, middle, bottom)
    Pallet width:min. 600 mm - max. ∞ mm*
    Pallet length:min. 600 mm - max. ∞ mm*
    Max. pallet heigth:2.200-2.800 mm*
    Rotation speed:20-90 m/min
    Battery charger:110 - 240 V

Buy stretchrobots SWR line – Enquire now

Are you interested in our SWR line of stretchrobots or would you like some no-obligation advice from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

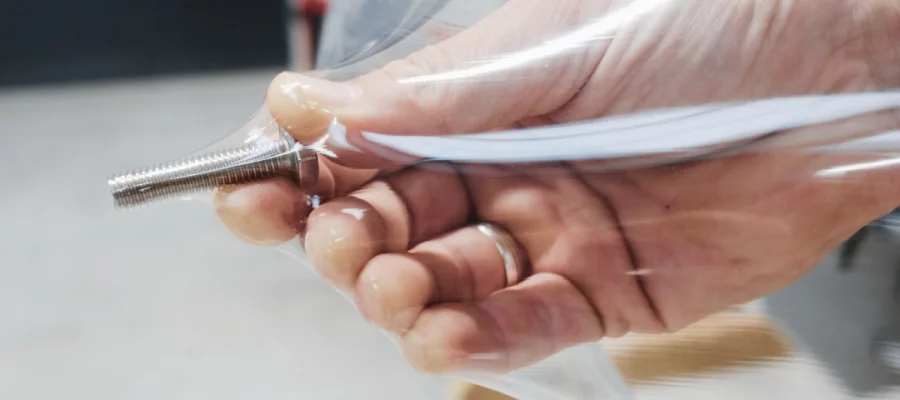

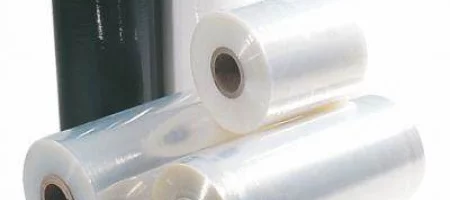

Suitable packaging material for SWR line stretchrobots
