Wrapping Machine SW-Line Eco

Pallet securing for optimum transport efficiency

Reliable wrapping technology at an attractive price-performance ratio

The stretch wrappers from the SW Eco-Line series enable you to efficiently package and secure your pallets. Due to the high demands placed on transport security, protecting pallets is essential. Our stretch wrappers offer you the ideal solution. Thanks to our modular design, the stretch wrappers can be easily and conveniently combined with various application options as required.

👁

Technical details and functional features

  • Pre-stretch function (film can be pre-stretched automatically and continuously by up to 300%)
  • Clear control panel/touch panel for intuitive operation
  • Three preselectable wrapping programmes: cross spiral, spiral or single wrap
  • Infinitely adjustable stroke speed for optimum adjustment
  • Infinitely adjustable turntable speed for different product requirements
  • Adjustable number of foot and head wraps for individual protection
  • Quick-change system for the film roll to minimise downtime
  • Electronically controlled soft start and stop for safe product handling
  • Fixed stop of the turntable in the starting position for optimised workflow
  • Flexible control panel, rotatable up to 90 degrees for ergonomic operation
👁

Advantages of Eco-Line stretch wrapping machines

  • Material savings: Up to 50% film savings thanks to pre-stretch function
  • Cost efficiency: Economical entry-level solution with optimum functionality
  • Process reliability: Consistent wrapping quality for secure transport packaging
  • Easy to use: Easy to operate, even for untrained personnel
  • Flexible adaptation: Different wrapping modes for different products
  • Robust construction: Durable design for daily industrial use
  • Modular expandability: Step-by-step adaptation to growing requirements

Model options:

  • SW-200
    Model:SW-200
    Machine size (L x W x H):2400 x 1650 x 2600 mm
    Rotary plate diameter:Ø 1650 mm
    Rotary plate speed: up to 10 rotations / minute
    Maximum pallet height:2.200 mm
    Maximum pallet weight:1200 kg
    Air pressure (dry air):No
    Supply voltage:230 V 50HZ 1-phase
    Connected load (maximum):0,8 kW
    Preselectable winding programs:2
    Control panel:analog
    Flexible control panel: No
  • SW-206 (PRE-Stretch)
    Model:SW-206 (PRE-Stretch)
    Machine size (L x W x H):2400 x 1650 x 2600 mm
    Rotary plate diameter:Ø 1650 mm
    Rotary plate speed: up to 12 rotations / minute
    Maximum pallet:2.500 mm
    Maximum pallet weight:1650 kg
    Air pressure (dry air):No
    Supply voltage:230 V 50HZ 1-phase
    Connected load (maximum):1,2 kW
    Preselectable winding programs:2
    Control panel:analog
    Flexible control panel:No

Buy stretch wrapping machine SW line Eco – Enquire now

Are you interested in our SW Eco-Line stretch wrappers or would you like some no-obligation advice from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable packaging material for stretch wrapping machine SW line Eco

Castelli-Film Stretchfolie von tbs-pack GmbH

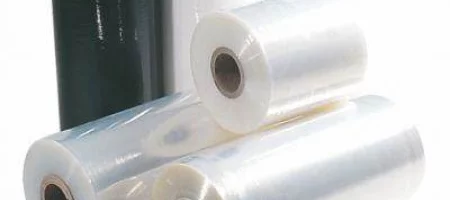

Eco-Stretch Film

Extremely thin eco-stretch film with consistent stability. This reduces storage capacity and plastic waste, protecting the environment and your wallet.

»

Suitable accessories for stretch wrapping machine SW line Eco
Optimise your packaging process

Vertikaler Kartonaufsteller für Versandkartons von alpha pack GmbH

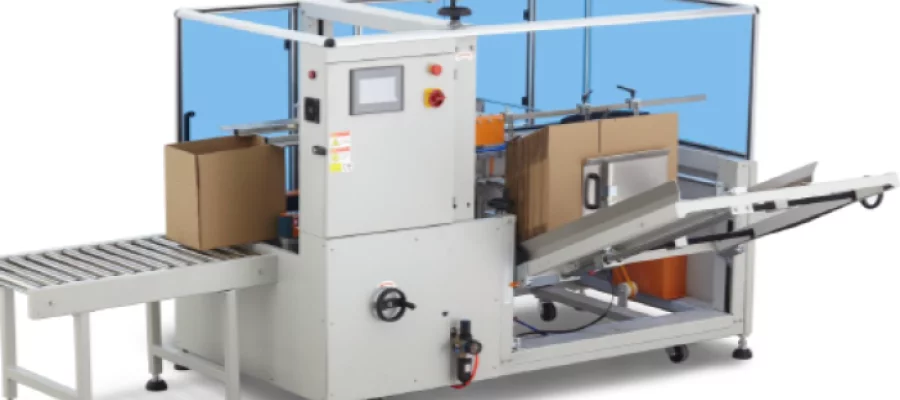

Case Erectors and Sealers

Our case erectors and sealers automate packaging efficiently and reliably – from the first fold to the case ready for shipping. For single batches to series production.

»
Cobot Palettierer mit automatischer Palettenbestückung von alpha pack GmbH

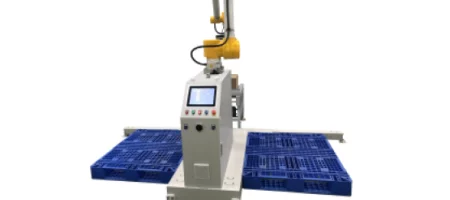

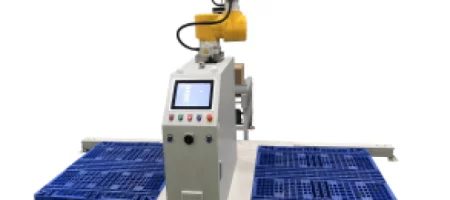

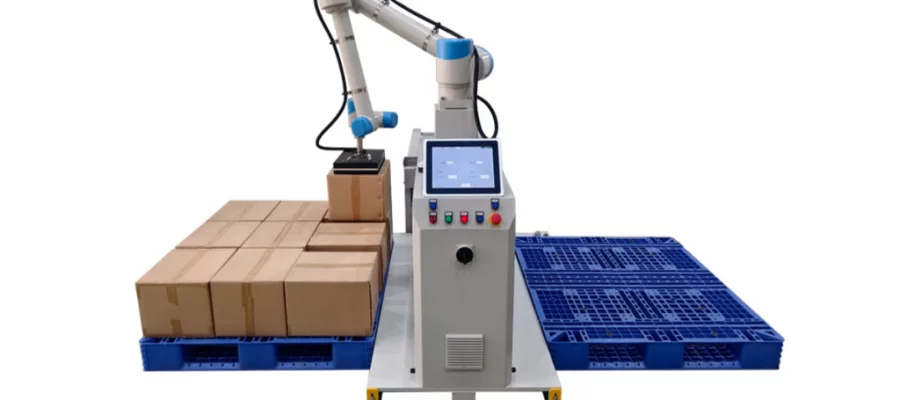

Cobot Palletiser

Our cobot palletiser automates palletising efficiently, ergonomically and in a space-saving manner – with a payload capacity of up to 30 kg and intuitive operation even without robotics experience.

»

Frequently asked questions about our SW series Eco-Line stretch wrapper

The SW series Eco-Line are semi- or fully automatic stretch wrappers for the efficient wrapping of pallets with stretch film. They combine compact design with simple operation and are ideal for getting started with automatic load securing.

Our Eco-Line is perfect for small to medium-sized shipping or storage areas, e.g. in retail, production facilities or e-commerce. It is also ideal as a second machine for seasonal peaks.

  • Uniform film consumption
  • Significantly improved stability and protection during transport
  • Less film consumption thanks to preset winding programmes
  • Reduction in physical strain for employees

Euro and industrial pallets up to 2,200 mm in height can be processed as standard. Depending on the model, special sizes, turntables with ramps or weighing modules can be integrated.

Yes – the SW series Eco-Line can be expanded with pallet conveyor technology, automatic carton sealers or pallet labellers, for example.
You can find suitable expansions and accessories in our end-of-line solutions section.
