Wrapping Machine SW-Line Premium

Advanced wrapping technology for demanding industrial applications

Our Premium Line stretch wrapping machines represent the top class of modern packaging technology. These advanced systems offer maximum performance for demanding industrial applications and combine maximum efficiency with intelligent automation. With sophisticated pre-stretch technology and automatic film attachment and separation functions, these machines ensure optimum material utilisation and outstanding packaging stability.

The Premium stretch wrapping machines of the SW series are specially designed for continuous industrial use and impress with their reliability, versatility and intuitive operation. Thanks to their modular design, these high-performance systems can be tailored precisely to your specific requirements.

👁

Technical details

Pre-stretch function (film can be pre-stretched automatically and continuously up to 300%, models SW-108 / SW-501)
Clear control panel / touch panel (SW-108 / SW-501)
Preselectable wrapping programmes: head and foot wrapping, cross spiral, spiral or rainproof (depending on model)
Infinitely adjustable lift carriage speed (SW-308 / SW-108 / SW-501)
Infinitely adjustable turntable speed (depending on model)
Turntable transport via chain or belt drive (SW-108 / SW-501)
Automatic film separation from the film carriage (SW-108 / SW-501)
Quick-change system for the film roll (depending on model)
Electronically controlled soft start and stop (all models)
Fixed stop of the turntable in the starting position (all models)
Flexible control panel, rotatable up to 90 degrees (SW-308 / SW-108 / SW-501)

👁

Advantages of the Premium Line stretch wrapping machines

Maximum material efficiency: Up to 300% pre-stretch for maximum film savings
Advanced automation: Automatic film separation for higher productivity
Versatile programming: Multiple preset and customisable wrapping programmes
Intuitive operation: Touch panel control for precise settings
Increased capacity: Processing of pallets up to 2000 kg
Robust industrial design: Durable construction for continuous operation
Maximum adaptability: Numerous options for industry-specific requirements

Model options

SW-308

Model:	SW-308
Rotary plate diameter:	Ø 1500 mm
Rotary plate speed:	up to 12 rotations / minute
Maximum pallet height:	2000 mm
Maximum pallet weight:	1650 kg
Air pressure (dry air):	No
Supply voltage:	230 V
Connected load (maximum):	0,8 kW
Preselectable winding programs:	3
Control panel:	analog
Flexible control panel:	Yes
Automatic film fixation:	No
Automatic film separation:	No
Automatic film stripping:	No

SW-108

Model:	SW-108
Machine size (L x W x H):	2080 x 1650 x 2145 mm
Rotary plate diameter:	Ø 1500 mm
Rotary plate speed:	up to 12 rotations / minute
Maximum pallet height:	2000 mm
Maximum pallet weight:	1650 kg
Air pressure (dry air):	No
Supply voltage:	230 V
Connected load (maximum):	0,8 kW
Preselectable winding programs:	4
Control panel:	analog
Flexible control panel:	Yes
Automatic film fixation:	No
Automatic film separation:	Yes
Automatic film stripping:	No

SW-501

Model:	SW-501
Machine size (L x W x H):	2600 x 1800 x 2550 mm
Rotary plate diameter:	Ø 1800 mm
Rotary plate speed:	up to 12 rotations / minute
Maximum pallet height:	2500 mm
Maximum pallet weight:	2000 kg
Air pressure (dry air):	6,0 bar
Supply voltage:	230 V
Connected load (maximum):	1,3 kW
Preselectable winding programs:	4
Control panel:	analog
Flexible control panel:	Yes
Automatic film fixation:	Yes
Automatic film separation:	Yes
Automatic film stripping:	Yes

Buy stretch wrapping machines from the Premium Line – Enquire now

Are you interested in our SW series Premium line stretch wrapping machiens or would you like some no-obligation advice from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable packaging material for stretch wrapping machines SW series Premium line

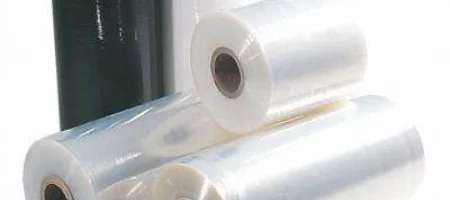

Castelli-Film Stretchfolie von tbs-pack GmbH

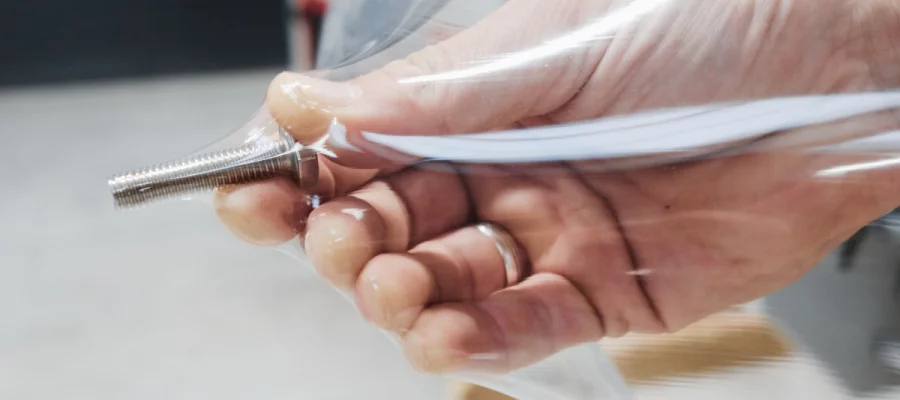

Eco-Stretch Film

Extremely thin eco-stretch film with consistent stability. This reduces storage capacity and plastic waste, protecting the environment and your wallet.

Suitable accessories for stretch wrapping machines SW series Premium line
Optimise your packaging process

Kartonaufrichter für automatisierte Verpackungsprozesse

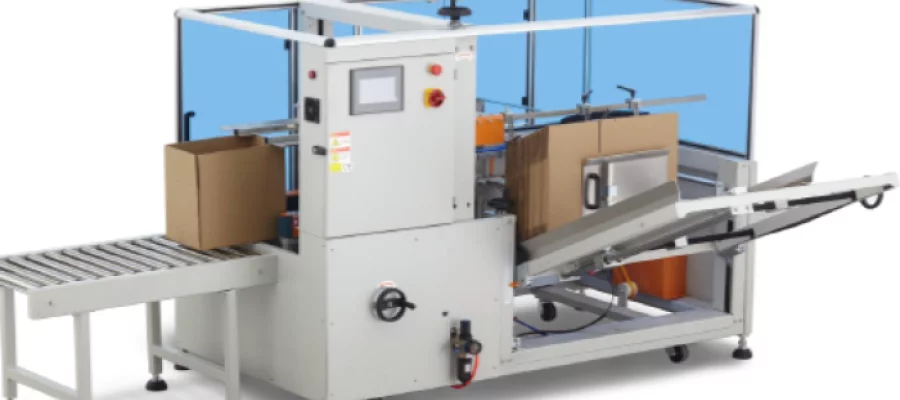

Case Erectors and Sealers

Our case erectors and sealers automate packaging efficiently and reliably – from the first fold to the case ready for shipping. For single batches to series production.

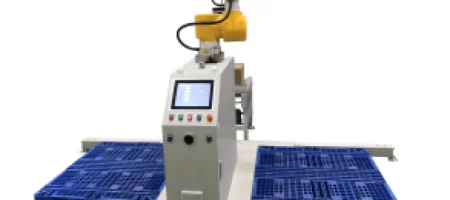

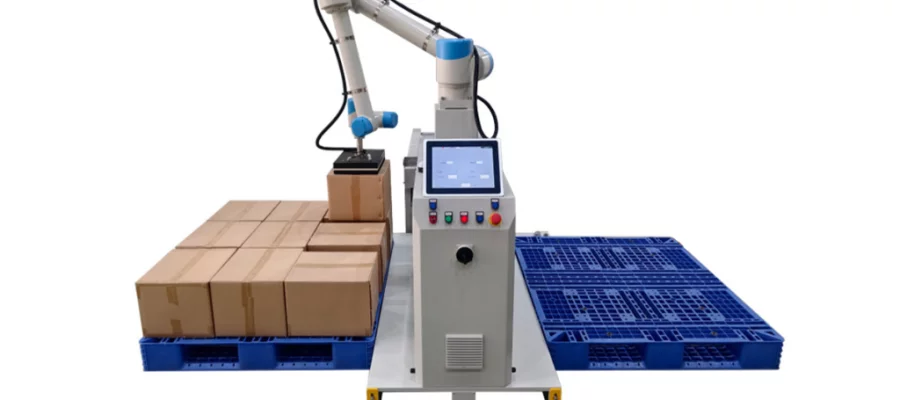

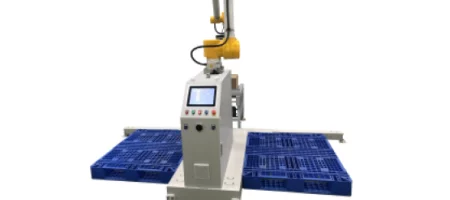

Cobot Palletiser

Our cobot palletiser automates palletising efficiently, ergonomically and in a space-saving manner – with a payload capacity of up to 30 kg and intuitive operation even without robotics experience.
