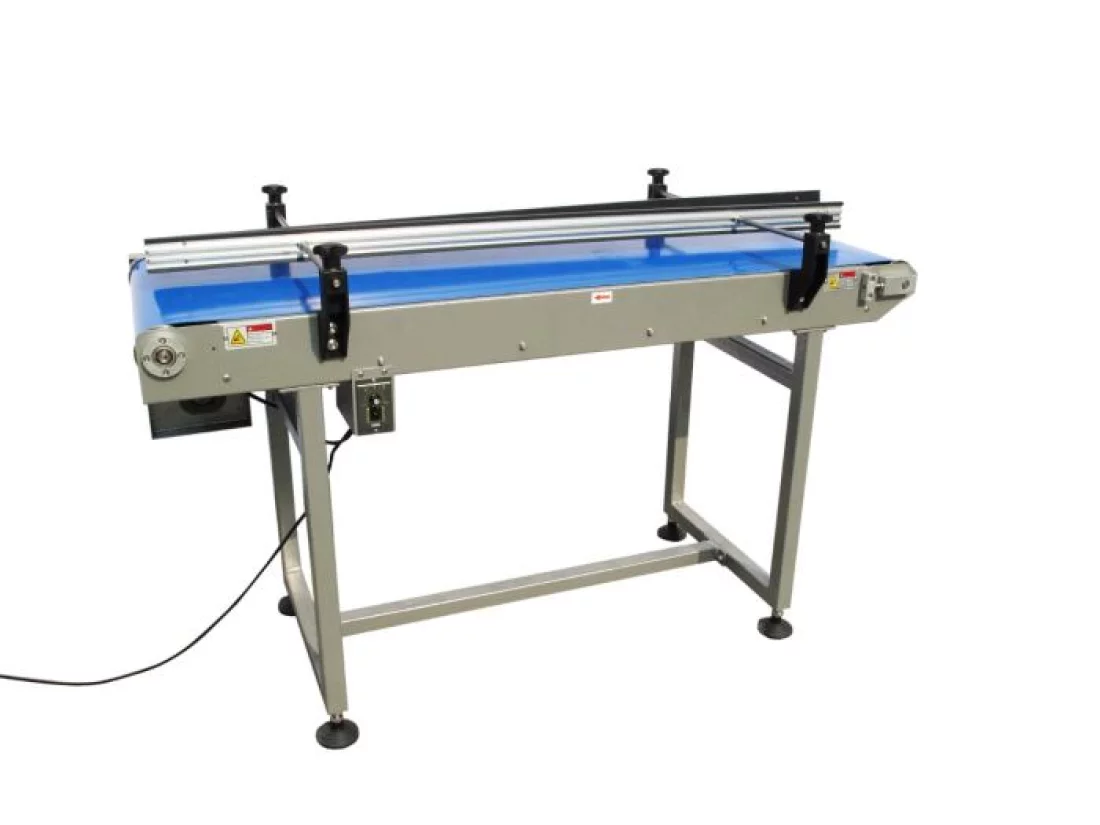

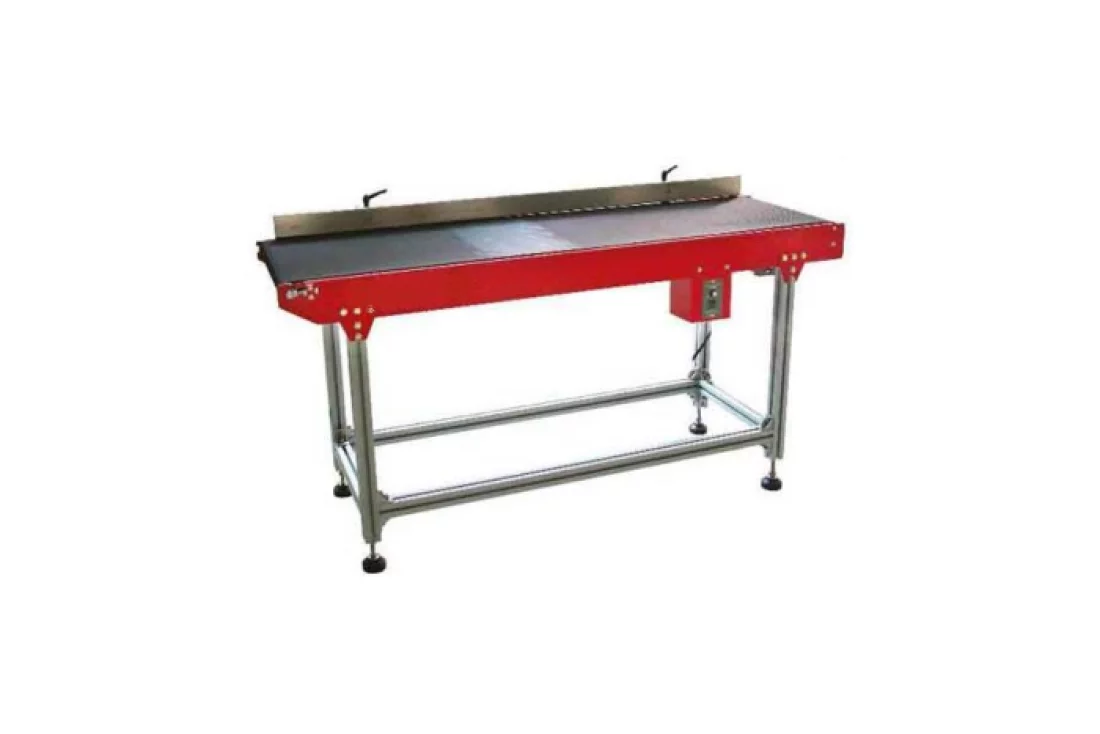

Electric Conveyor Belts

Efficient transport solutions for optimised packaging processes

Flexible expansion for your packaging line

Our belt conveyors allow you to expand your packaging machines quickly and efficiently. Individual packaging line systems are possible, which can be used as performance-enhancing input or output conveyor belts on all machines.

Technical details and advantages

  • Adjustable conveyor belt speed for variable throughput times
  • Flexibly adjustable height adjustment for optimum ergonomics
  • Direct timing with packaging machine possible (inline operation)
  • Mobile design on castors with locking brakes or stationary version with feet
  • CE marking for the highest safety standards
  • Load capacity up to 200 kg for versatile product requirements

Model options:

  • FA-450-1000
    Model:FA-450-1000
    Maximum product width:350 mm*
    Work height:750 mm
    Maximum product length:1000 mm*
    Machine dimensions  (L x W x H):1000 x 450 x 750 mm
    Conveyor belt speed:0 - 30 m / min**
    Power supply:230 V / 0,5 kW
  • FA-450-1500
    Model:FA-450-1500
    Maximum product width:350 mm*
    Work height:750 mm
    Maximum product length:1500 mm*
    Machine dimensions  (L x W x H):1500 x 450 x 750 mm
    Conveyor belt speed:0 - 30 m / min**
    Power supply:230 V / 0,5 kW
  • FA-450-2000
    Model:FA-450-2000
    Maximum product width:350 mm*
    Work height:750 mm
    Maximum product length:2000 mm*
    Machine dimensions  (L x W x H):2000 x 450 x 750 mm
    Conveyor belt speed:0 - 30 m / min**
    Power supply:230 V / 0,5 kW
  • FA-450-3000
    Model:FA-450-3000
    Maximum product width:350 mm*
    Work height:750 mm
    Maximum product length:3000 mm*
    Machine dimensions  (L x W x H):3000 x 450 x 750 mm
    Conveyor belt speed:0 - 30 m / min**
    Power supply:230 V / 0,5 kW
  • FA-450-4000
    Model:FA-450-4000
    Maximum product width:350 mm*
    Work height:750 mm
    Maximum product length:4000 mm*
    Machine dimensions (L x W x H):4000 x 450 x 750 mm
    Conveyor belt speed:0 - 30 m / min**
    Power supply:230 V / 0,5 kW
  • FA-450-5000
    Model:FA-450-5000
    Maximum product width:350 mm*
    Work height:750 mm
    Maximum product length:5000 mm*
    Machine dimensions (L x W x H):5000 x 450 x 750 mm
    Conveyor belt speed:0 - 30 m / min**
    Power supply:230 V / 0,5 kW

Buy electric conveyor belt – Enquire now

Are you interested in our electric belt conveyors or would you like a no-obligation consultation from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Frequently asked questions about our electric conveyor belts

An electric conveyor belt is a motor-driven transport system that efficiently moves products from station to station within a packaging line. It is used to automate processes – from feeding and filling to labelling or palletising.

We offer different designs – e.g.:

  • Belt conveyors for smooth product movement
  • Modular belts for curved sections or products with irregular shapes
  • Inclined conveyors for height differences
  • Roller conveyors for cartons or heavy products

We supply customised solutions for your line according to your requirements.

Yes – we offer food-grade conveyor belts with hygienic stainless steel frames, washable belts and optional drip tray systems. HACCP and IFS-compliant versions are also available.

The speed can be adjusted individually – either manually or automatically via a control system. This allows you to optimally adapt the belt to your filling machine, labelling system or packaging machine.

Yes – our systems are modular in design and can be integrated into almost any production environment. Customised designs, e.g. with cleated belts, side guides or counting functions, are also possible.
