Top & Bottom Labeller

Efficient solutions for simultaneous product labelling on both sides

With our fully automatic labelling machines, you can efficiently and accurately label flat products both on the top and bottom. Our machines offer the option of labelling products on one side or simultaneously on both sides – ideal for a wide range of uses. Whether for consumer goods, food or other industries, our labelling machines ensure fast and reliable labelling that optimises your production processes.

👁

Technical details and functional features

Flexible labelling configuration: Equipped with two labelling heads, one for top labelling and one for bottom labelling (depending on model)
High-quality construction: Stainless steel design for long-lasting use
Intelligent control: Programmable logic controller combined with intuitive touch screen
Highest precision: Highly accurate labelling with a tolerance of only ±1 mm
Synchronised speed: Servo-controlled labelling head; labelling speed is automatically synchronised with the throughput speed of the products

👁

Advantages of modern labelling technology

Increased productivity: Fast and simultaneous labelling of top and bottom sides
Maximum flexibility: Processing of different label formats and product sizes
Consistent quality: Consistently precise placement even at high speeds
Minimal material loss: Optimised label feed for reduced error rates
Easy integration: Compatible with existing production lines
User-friendly operation: Intuitive touch interface with product memory
Robust construction: Designed for continuous industrial use

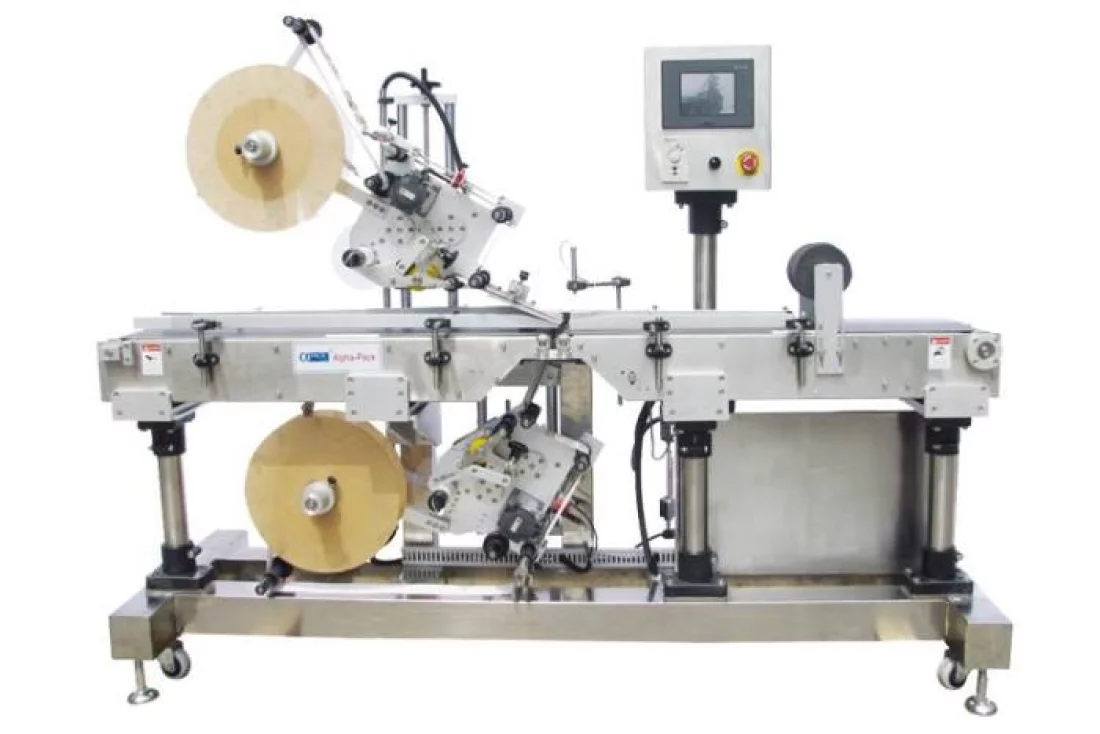

Labelling machine DEALB-220 for precise labelling

Label nut cake boxes at the top and bottom

Model options:

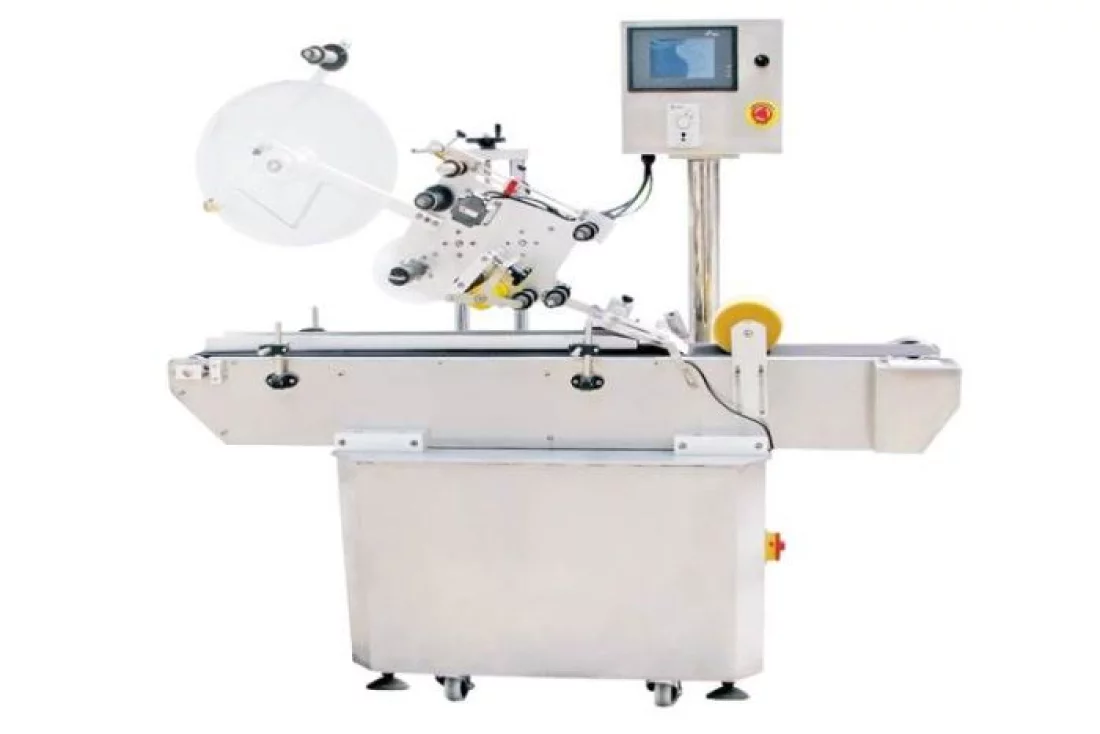

DEALB-210

Model:	DEALB-210
Labeling:	unilateral
Label height / width:	A: 10-110 mm; C: 10-170 mm; D: 10-220 mm
Label length:	10 - 250 mm*
Product diameter / width:	15 - 160 mm
Labeling speed:	12 - 35 m / min**
Reel: inner / outer diameter:	between 76 mm / 360 mm
Machine dimensions (L x W x H):	1450 mm x 700 mm x 1550 mm

DEALB-210A

Model:	DEALB-210A
Labeling:	unilateral
Label height / width:	A: 10-110 mm; C: 10-170 mm; D: 10-220 mm
Label length:	10 - 250 mm*
Product diameter / width:	15 - 160 mm
Labeling speed:	12 - 35 m / min**
Reel: inner / outer diameter:	between 76 mm / 360 mm
Machine dimensions (L x W x H):	1450 mm x 700 mm x 1550 mm

DEALB-220

Model:	DEALB-220
Labeling:	simultaneous bilateral
Label height / width:	A: 10 - 110 mm; C: 10 - 170mm*
Label length:	10 - 250 mm*
Product diameter / width:	15 - 160 mm
Labeling speed:	12 - 35 m / min**
Reel: inner / outer diameter:	between 76 mm / 360 mm
Machine dimensions (L x W x H):	1450 mm x 700 mm x 1550 mm

DEALB-620R

Model:	DEALB-620R
Labeling:	simultaneous bilateral
Label height / width:	A: 10 - 110 mm; C: 10 - 170mm*
Label length:	10 - 250 mm*
Product diameter / width:	30 - 100 mm
Labeling speed:	12 - 25 m / min**
Reel: inner / outer diameter:	between 76 mm / 360 mm
Machine dimensions (L x W x H):	2570 mm x 1400 mm x 1665 mm

DEALB-625

Model:	DEALB-625
Labeling:	simultaneous bilateral
Label height / width:	A: 10 - 110 mm; C: 10 - 170mm*
Label length:	10 - 250 mm*
Product diameter / width:	30 - 100 mm
Labeling speed:	12 - 25 m / min**
Reel: inner / outer diameter:	between 76 mm / 360 mm
Machine dimensions (L x W x H):	2570 mm x 1400 mm x 1665 mm
