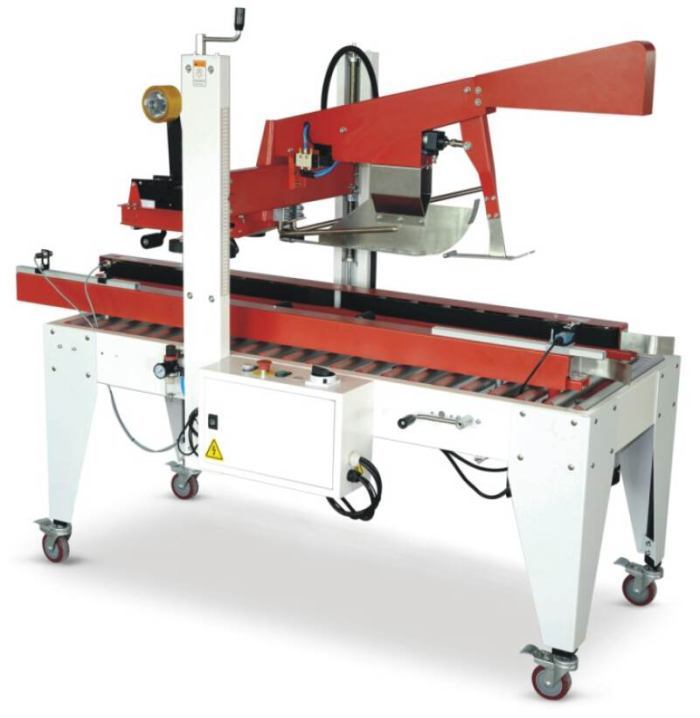

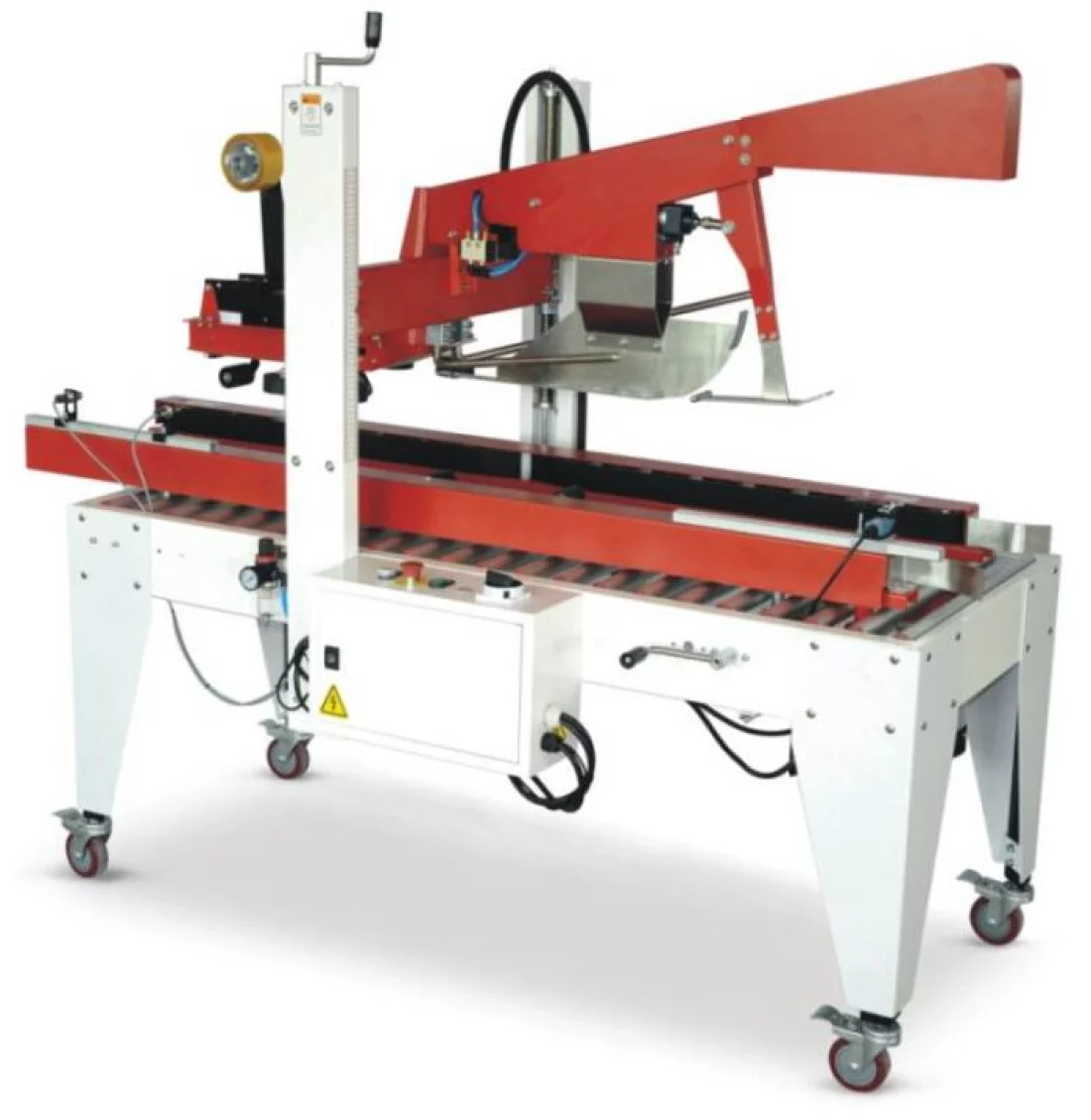

Efficient technology at an attractive price-performance ratio

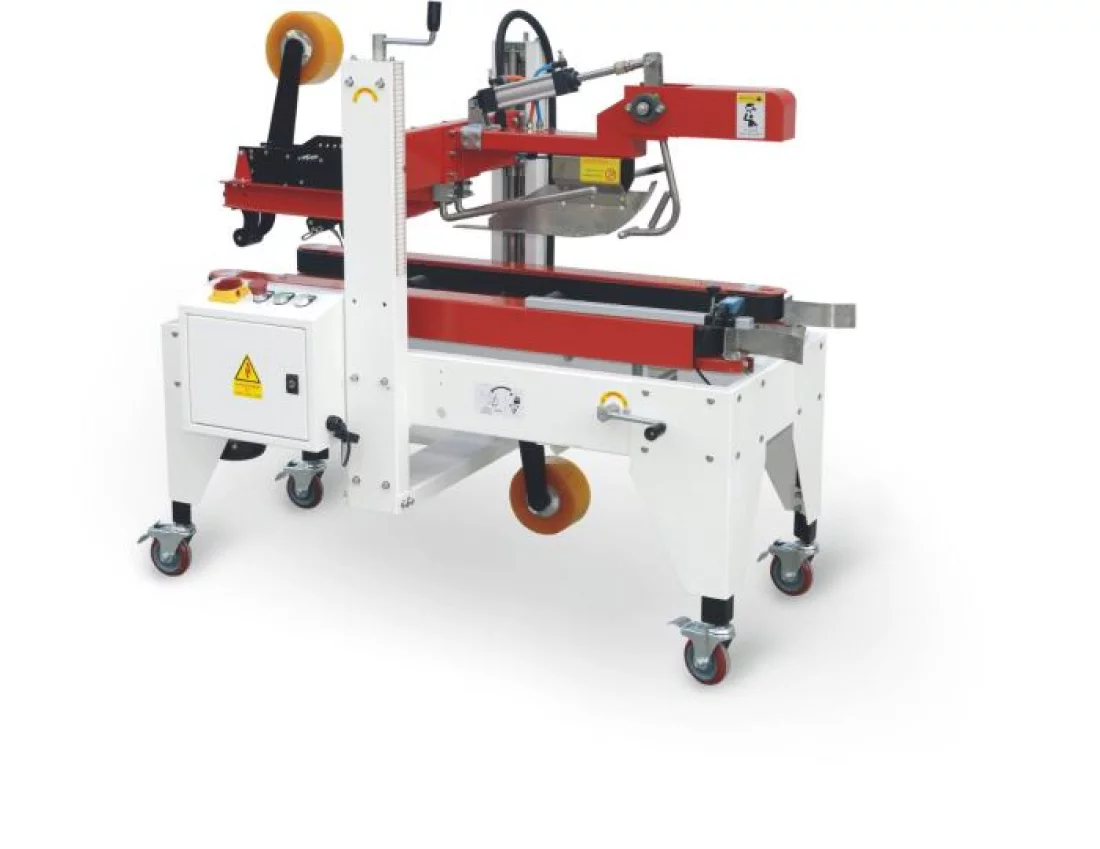

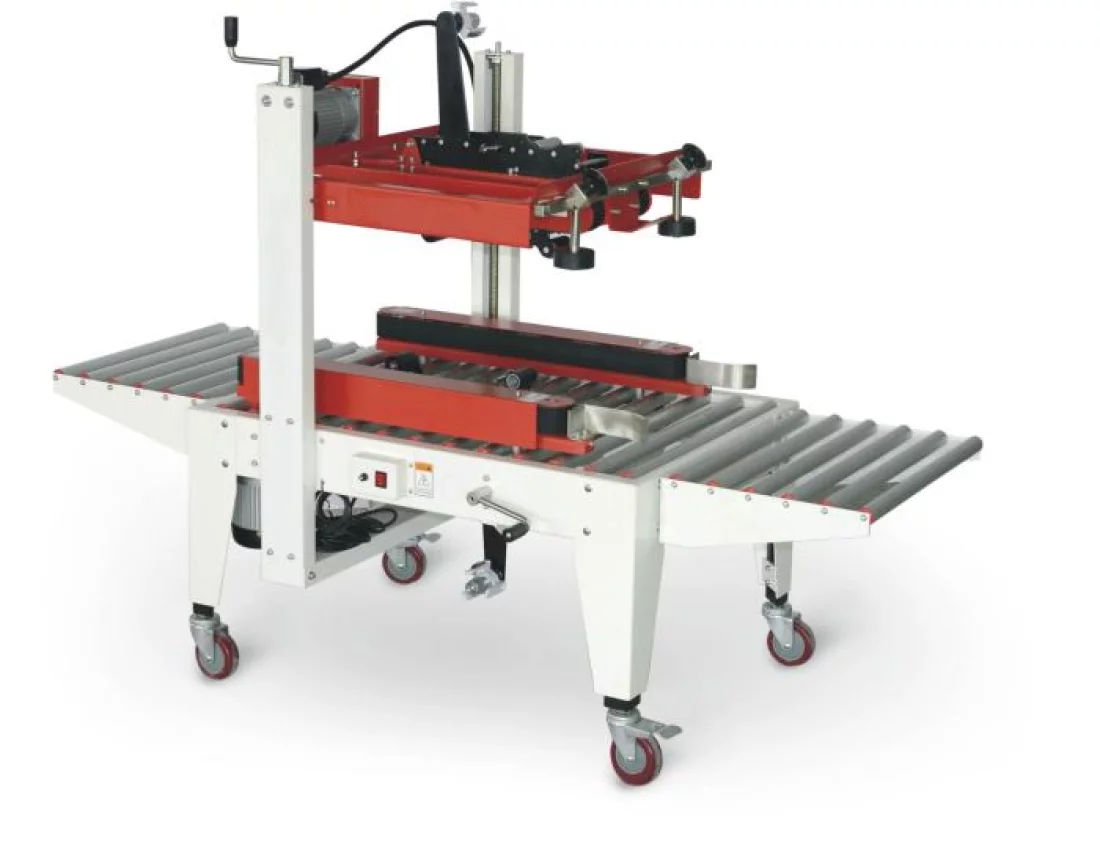

Our semi-automatic case sealers are the ideal, fast, economical and practical solution for professional case sealing. They are driven from the side. The case sealing machines can be individually adjusted to the respective case formats. The cartons are sealed using machine adhesive tape, which quickly and securely bonds the bottom and top flaps of the shipping cartons. The case sealers guarantee ergonomic working, clean and straight adhesive seams and low-noise unwinding of the adhesive tape.

👁

Advantages of the Eco line

Cost-efficient: Optimal price-performance ratio with high quality
User-friendly: Easy operation without special training
Flexible: Processing of different cardboard formats
Compact: Low space requirements for optimal space utilisation
Economical: Low operating costs and low maintenance requirements
Reliable: Robust construction for daily use

👁

Technical details

Easy maintenance, low spare part costs
Adjustable adhesive tape tension
2 adhesive tape dispensers (top/bottom)
Quick format change via hand wheel or light barrier technology
Includes product infeed and outfeed roller conveyor
Self-adhesive tapes with 50 mm width (optional 75 mm)
Conveyor belt running direction (right/left)
Height-adjustable feet on castors
Case erector (KPM-116) available on enquiry

Model options:

KPE-FA500

Model:	KPE-FA500
Usable tapes:	PP / PVC / Hotmelt
Inner tape reel diameter:	76 mm
Minimum case dimensions (L x W x H):	150 x 120 x 130 mm*
Maximum case dimensions (L x W x H):	∞ x 500 x 500 mm*
Machine size (L x W x H):	1000 x 900 x 1270 mm
Maximum case weight (approx.):	40 kg
Arrangement of the drive belts:	lateral
Case format adaption:	manual
Transport speed:	20 m / minute
Supply voltage:	230 V
Air pressure (dry air):	-
Connected load (maximum):	0,40 kW
Machine weight (approx.):	130 kg

KPE-SDH500

Modell	KPE-SDH500
Usable tapes:	PP / PVC / Hotmelt
Inner tape reel diameter:	76 mm
Minimum case dimensions (L x W x H):	ca. 90 x 120 mm*
Maximum case dimensions (L x W x H)	ca. 500 x 500 mm*
Machine size (L x W x H):	ca. 1000 x 900 x 1270 mm
Maximum case weight (approx.):	40 kg
Arrangement of the drive belts:	lateral, top + bottom
Case format adaption:	manual
Transport speed:	20 m / minute
Supply voltage:	230 V
Air pressure (dry air):	-
Connected load (maximum):	0,45 kW
Machine weight (approx.):	200 kg

KPE-FC500

Model:	KPE-FC500
Usable tape:	PP / PVC / Hotmelt
Inner tape reel diameter:	76 mm
Minimum case dimensions (L x W x H):	200 x 120 x 120 mm*
Maximum case dimensions (L x W x H):	600 x 500 x 500 mm*
Machine size (L x W x H):	1000 x 900 x 1270 mm
Maximum case weight (approx.):	40 kg
Arrangement of the drive belts:	lateral
Case format adaption:	automatic
Transport speed:	20 m / minute
Supply voltage:	230 V
Air pressure (dry air):	6,0 bar
Connected load (maximum):	0,45 kW
Machine weight (approx.):	200 kg

KPE-FE500

Model:	KPE-FE500
Usable tape:	PP / PVC / Hotmelt
Inner tape reel diameter:	76 mm
Minimum case dimensions (L x W x H):	150 x 120 x 130 mm*
Maximum case dimensions (L x W x H):	∞ x 500 x 500 mm*
Machine size (L x W x H):	1000 x 900 x 1270 mm
Maximum case weight (approx.):	40 kg
Arrangement of drive belts:	lateral
Case format adaption:	automatic
Transport speed:	20 m / minute
Supply voltage:	230 V
Air pressure (dry air):	6,0 bar
Connected load (maximum):	0,45 kW
Machine weight (approx.):	190 kg

KPEX-FE500

Modell	KPEX-FE500
Usable tapes:	PP / PVC / Hotmelt
Inner tape reel diameter:	76 mm
Minimum case dimensions (L x W x H):	ca. 120 x 130 mm*
Maximum case dimensions (L x W x H):	ca. 500 x 500 mm*
Machine size (L x W x H):	ca. 1000 x 900 x 1270 mm
Maximum case weight (approx.):	40 kg
Arrangement of drive belts:	lateral, left + right
Case format adaption:	automatic
Transport speed:	20 m / minute
Supply voltage:	230 V
Air pressure (dry air):	6,0 bar / 80 l / min.
Connected load (maximum):	0,45 kW
Machine weight (approx.):	190 kg

Buy semi-automatic case sealers from the Eco line – Enquire now

Are you interested in our semi-automatic case sealers from the Eco line, or would you like some no-obligation advice from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable packaging material for semi-automatic case sealers from the Eco line

Verpackung von Süßigkeiten mit OPP-Siegelfolie

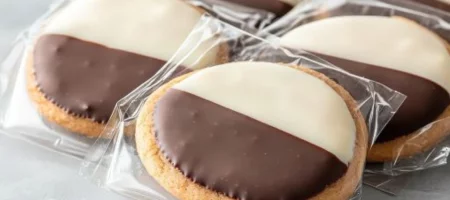

OPP / CPP Sealing Film

Our sealing film is food-safe and environmentally friendly. It is available as OPP film and CPP film and is ideal for hygienic food packaging. Available as flat film, half-tube film, and also as bags.

Eine große Auswahl an verschiedenen Standbodenbeuteln

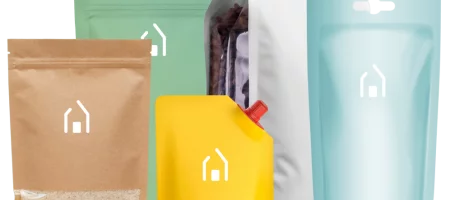

Stand-Up Pouches / Doypack-Bags
