Semi-Automatic Carton Sealers Premium Line

Efficient solutions for the professional packaging process

Flexible Cardboard Processing with Various Drive Systems

The semi-automatic carton sealers of the KPM series seal the top and bottom of shipping cartons with machine-grade adhesive tape. Depending on the model, the cartons are transported via side, top, and bottom conveyor belts, or a combination thereof.

The machines can be adjusted to accommodate various carton sizes and achieve a packing capacity of up to 30 cartons per minute, depending on the application and carton size. They can handle boxes weighing up to 40 kg.

PP, PVC, and hot-melt adhesive tapes can be used for sealing the boxes. The KPM series is therefore suitable for routine packaging and shipping processes where boxes need to be sealed quickly and with a consistent adhesive seam.

👁 👁 👁

Technical Details

  • Easy maintenance, low spare parts costs
  • Adjustable adhesive tape tension
  • 2 adhesive tape dispensers (top/bottom)
  • Quick format change via hand wheel or light barrier technology
  • Includes product infeed and outfeed roller conveyor
  • Self-adhesive tapes with a width of 50 mm (optional 75 mm)
  • Conveyor belt running direction (right/left)
  • Height-adjustable feet on castors
  • Case erector (PM-116) available on enquiry

Our semi-automatic case sealers in use

Case sealing machine for stable and secure packaging

Semi-automatic case sealer for versatile use

Model options:

  • KPM-103SD
    Model: KPM-103SD
    Usable tape: PP / PVC / Hotmelt
    Inner tape reel diameter: 76 mm
    Minimum case dimensions: (W x H): 100 x 120 mm*
    Maximum case dimensions: (W x H): 500 x 500 mm*
    Machine size (L x W x H): 913 x 854 x 1180 mm
    Maximum case weight (approx.): 40 kg
    Arrangement of the drive belts: lateral
    Case format adaption: manual
    Transport speed: 23 m / minute
    Maximum reel height: 820 mm
    Supply voltage: 230 V
    Air pressure (dry air): -
    Connected load (maximum): 0.40 kW
    Machine weight (approx.): 108 kg
    Packing capacity: up to 30 pieces / minute**
  • KPM-103TB
    Model: KPM-103TB
    Maximum tape diameter: 410 mm
    Inner tape reel diameter: 76 mm
    Minimum case dimensions (W x H): 140 x 120 mm*
    Maximum case dimensions (W x H): 500 x 500 mm*
    Machine size (L x W x H): 837 x 754 x 1375 mm
    Maximum case weight (approx.): 40 kg
    Arrangement of the drive belts: at the top and at the bottom
    Case format adaption: manual:
    Transport speed: 23 m / minute
    Maximum reel height: 800 mm
    Supply voltage: 230 V
    Air pressure (dry air): -
    Connected load (maximum): 0.40 kW
    Machine weight (approx.): 115 kg
    Packing capacity: up to 30 pieces / minute**
  • KPM-103SDH
    Model: KPM-103SDH
    Usable tape: PP / PVC / Hotmelt
    Inner tape reel diameter: 76 mm
    Minimum case dimensions (W x H): 90 x 120 mm*
    Maximum case dimensions (W x H): 500 x 500 mm*
    Machine size (L x W x H): 913 x 854 x 1180 mm
    Maximum case weight (approx.): 40 kg
    Arrangement of the drive belts: lateral, below and above
    Case format adaption: manual
    Transport speed: 23 m / minute
    Maximum reel height: 820 mm
    Supply voltage: 230 V
    Air pressure (dry air): -
    Connected load (maximum): 0.45 kW
    Machine weight (approx.): 108 kg
    Packing capacity: up to 30 pieces / minute**
  • KPM-103SDN
    Modell KPM-103SDN
    Anwendbares Klebeband: PP / PVC / Hotmelt
    Klebebandkernaufnahme: 76 mm
    Minimale Kartonabmessung (B x H): 100 x 120 mm*
    Maximale Kartonabmessung (B x H): 500 x 500 mm*
    Maschinengröße (L x B x H): 913 x 854 x 1180 mm
    Maximales Kartongewicht (ca.): 40 kg
    Anordnung der Antriebsbänder: seitlich
    Kartonformatanpassung: manuell + Schwertarm für leichte Kartonfürung
    Transportgeschwindigkeit: 23 m / Minute
    Maximale Rollenbahnhöhe: 820 mm
    Anschlussspannung: 230 V
    Luftdruck (trockene Luft): -
    Maximale Anschlussleistung: 0.40 kW
    Maschinengewicht (ca.): 108 kg
    Packleistung: bis 30 Stück / Minute**

Buy semi-automatic case sealers from the Premium line – Enquire now

Are you interested in our semi-automatic case sealers from the Premium line or would you like some no-obligation advice from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable accessories for semi-automatic case sealers from the Premium line
Optimise your packaging process

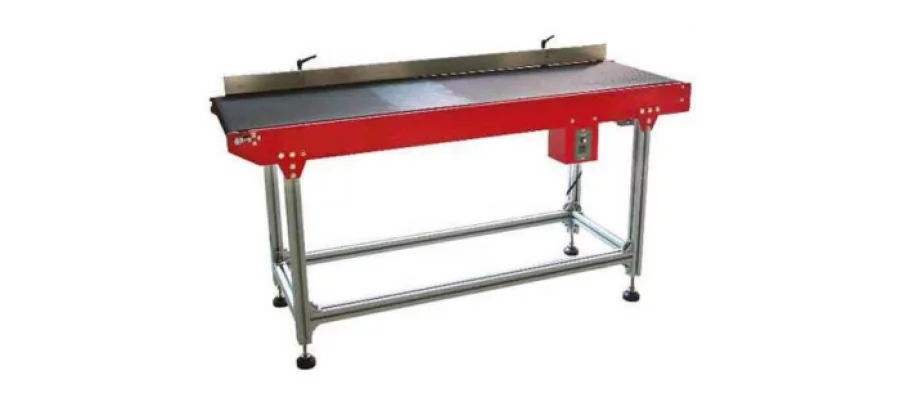

Elektrische Förderbänder von alpha pack GmbH

Electric Conveyor Belts

With our belt conveyors, you can quickly and efficiently expand your packaging machines.

»

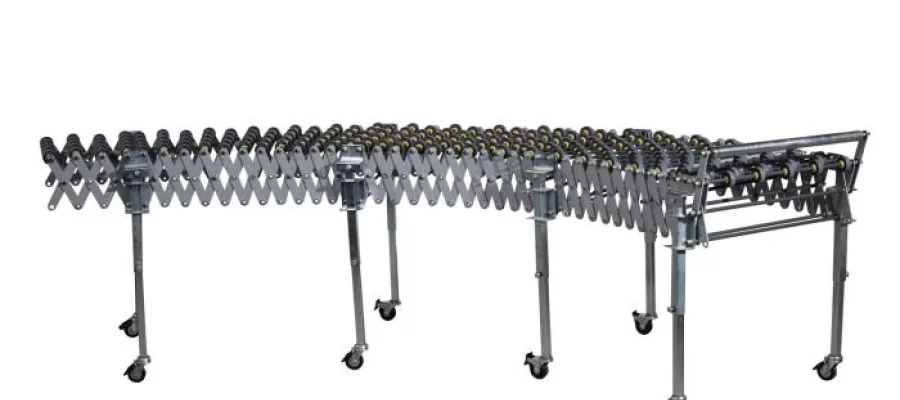

Rollenbahnen von alpha pack GmbH

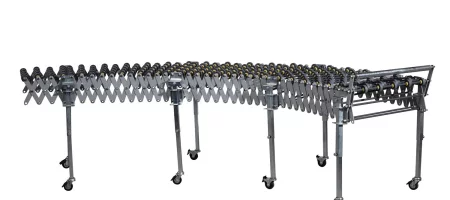

Roller Conveyors

Heavy-duty roller conveyors and extendable roller conveyors are indispensable in conveyor technology.

»

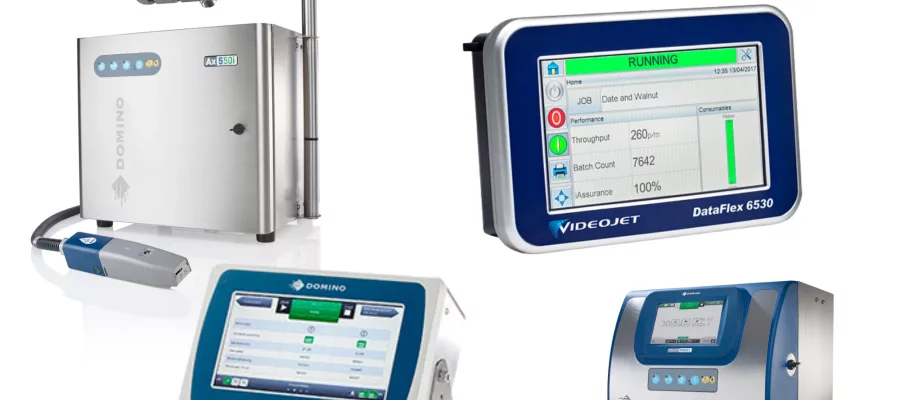

Drucksysteme von alpha pack GmbH

Printing Systems Thermal Transfer and Inkjet

Precise marking technologies for durable and high-quality product markings.

»

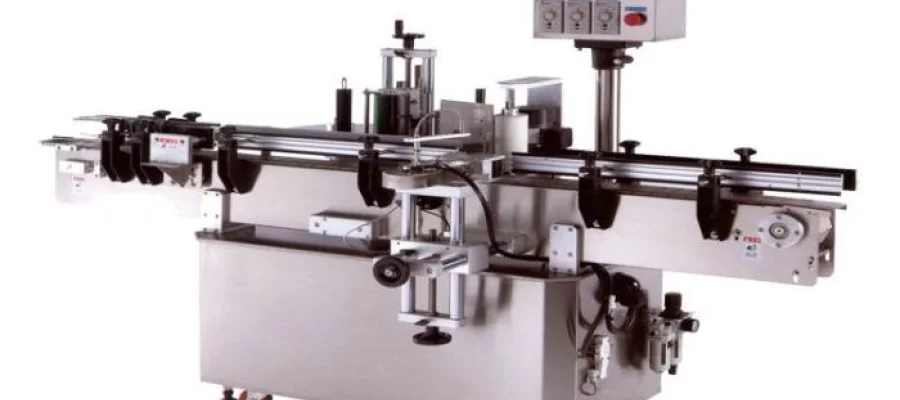

Etikettiermaschine (seitlich) von alpha pack GmbH

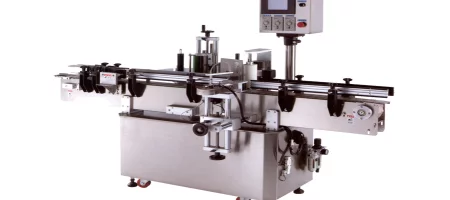

Labelling Machines

Flexible labeling solutions for a wide range of packaging formats and industries.

»

Frequently asked questions about our semi-automatic case sealer Premium line

These machines seal cartons quickly and precisely with adhesive tape or hot melt – ideal for packaging lines with medium throughput. The Premium line offers particularly robust workmanship, powerful drive units, and ease of use.

  • Stable frame for continuous operation
  • Higher sealing speed
  • Lower maintenance requirements
  • Precise tape guidance for clean seals
  • Compatibility with various carton formats

The box is inserted manually, the machine recognizes the format and automatically seals the top and bottom with adhesive tape. Height and width adjustment is manual or optional automatic, depending on the model.

Universally applicable, e.g., in:

  • Food industry
  • Cosmetics & pharmaceuticals
  • E-commerce & logistics
  • Mechanical engineering & component manufacturing

Yes – ideal in combination with case erection, conveyor technology, labelers, or pick-and-place systems. This creates a continuous and efficient packaging process.
