Efficient packaging solution with upper film guide

Our horizontal pillow bag machines with film feed from above offer numerous advantages over conventional packaging systems. They impress with their low space requirements in the production hall and high flexibility thanks to quick changeover. The guides can be manually adjusted to the product width using a crank mechanism, so that even impact-sensitive products can be securely packaged with a tray.

The horizontal packaging process is particularly gentle, as the product does not fall into the bag but is fed horizontally on a conveyor belt. With film feeding from above, the product is pushed into the forming tube and transported to the sealing unit for the longitudinal seam while resting on the tube.

👁

Technical details and advantages

Robust construction: Steel frame with optional stainless steel design
Precise product handling: Products are transported by gripper feed
High-quality welding technology: Teflon-coated, continuously heated welding punches
Intuitive operation: Simple touchscreen control via colour symbols
Automated product recognition: Continuous feed via photo cell control
Safe production: protective covers and alarm signal light
Versatile packaging options: 3-sided weld seam packaging (fin seam)
Optimal sealing: longitudinal welding on the underside of the bag
High efficiency: rotating cross-sealing system for faster cycle times
Flexible expansion: can be combined with a shrink tunnel

👁

Areas of application

Our horizontal pillow bag machines with upper film guide are suitable for a wide range of applications:

Food industry

Baked goods: bread, pastries, biscuits, pita bread
Meat products: sausages, stacked sausage products weighing several kilograms
Fruit and vegetables: pre-cut fruit, salad mixes
Frozen products: ready meals, frozen baked goods

Medical and pharmaceutical industry

Face masks: counting, stacking and packaging
Hygiene articles: cotton swabs, compresses
Disposable medical products: gloves, swabs

Technical products

Small parts: screws, nuts, dowels
Electronic components: circuit boards, plugs, connecting elements
Tools: bits, drill bits, small tools

Our horizontal pillow bag machines in action

Efficient filling and capping of pillow bags

Horizontal pillow bag machine for pet products

Flexible solutions for cereal bar packaging

Flexible solutions for packaging wraps

Hygienic packaging for face masks

Fresh and hygienic packaging for fruit

Pack sandwiches securely and keep them fresh

Secure sealing and product protection for biscuits

Model options for our horizontal pillow bag machines

Horizontal Pillow Bag DEAHP-390

Model	DEAHP-390
Usable films (center folded):	PP / POF / composite films
Sealing process:	up to 100 pieces / min*
Sealing mechanism 1:	Longitudinal sealing
Sealing mechanism 2:	Spin sealing
Max. product height:	180 mm**
Max. product width:	50 mm**
Max. reel size (W x Ø):	390 x Ø 350 mm
Max. connected load:	2,5 kW
Air pressure (dry air):	6,0 bar
Supply voltage:	400 V / 3-phases

Horizontal Pillow Bag Machine DEAHP-450-3S

Model	DEAHP-450-3S
Usable films (center folded):	PP / POF / composite films
Sealing process	up to 90 pieces / minute*
Sealing mechanism 1:	longitudinal sealing
Sealing mechanism 2:	spin sealing - 3 servomotors
Maximum reel size:	450 mm x 300 mm (Ø)
Product length:	up to 600 mm**
Machine weight:	approx. 720 kg
Connected load (maximum):	3 kW
Air pressure (dry air):	6,0 bar
Supply voltage:	400 V / 3-phases

Horizontal Pillow Bag Machine DEAHP-450-3Smini

Model	DEAHP-450-3Smini
Usable films (center folded):	PP / POF / composite films
Sealing process	up to 90 pieces / minute*
Sealing mechanism 1:	longitudinal sealing
Sealing mechanism 2:	spin sealing - 3 servomotors
Maximum reel size:	450 mm x 300 mm (Ø)
Product length:	up to 400 mm**
Machine weight:	approx. 720 kg
Connected load (maximum):	3 kW
Air pressure (dry air):	6,0 bar
Supply voltage:	400 V / 3-phases

Horizontal Pillow Bag Machine DEAHP-500-3S

Model	DEAHP-500-3S
Usable films (center folded):	PP / POF / composite films
Sealing process:	up to 200 pieces / minute*
Sealing mechanism 1:	longitundinal sealing
Sealing mechanism 2:	spin sealing- servomotors
Maximum product height:	120 mm**
Maximum product width:	250 mm**
Product length:	60 - 550 mm**
Maximum reel size (W x Ø):	500 x Ø 350 mm
Connected load (maximum):	3,0 kW
Air pressure (dry air):	6,0 bar
Supply voltage:	400 V / 3-phases

Horizontal Pillow Bag Machine DEAHP-600-3S

Model	DEAHP-600-3S
Usable films (center folded):	PP / POF / composite films
Sealing process:	up to 150 pieces / minute*
Sealing mechanism 1:	longitudinal sealing
Sealing mechanism 2:	spin sealing - servomotors
Maximum product height:	140 mm**
Maximum product width:	300 mm**
Product length:	70 - 550 mm**
Maximum reel size (W x Ø):	600 x Ø 350 mm
Connected load (maximum):	3,5 kW
Air pressure (dry air):	6,0 bar
Supply voltage:	400 V / 3-phases

Buy horizontal pillow bag machine – Enquire now

Are you interested in our horizontal pillow bag machine or would you like a no-obligation consultation from our packaging experts? Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

Suitable packaging material for horizontal pillow bag machines

Verpackung von Süßigkeiten mit OPP-Siegelfolie

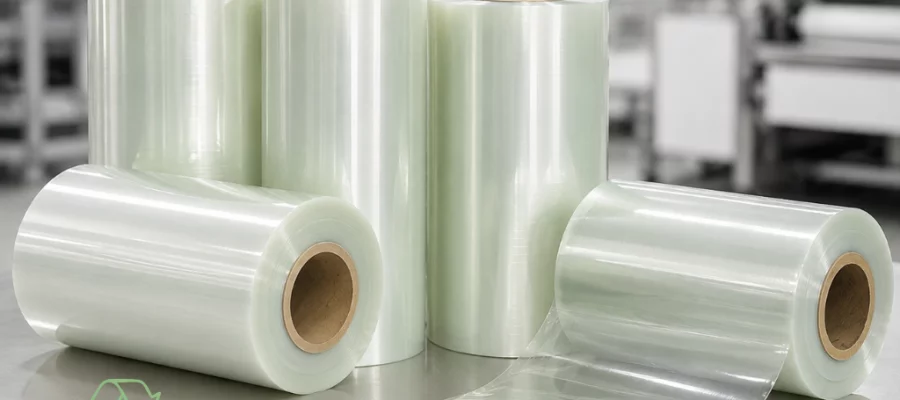

OPP / CPP Sealing Film

Our sealing film is food-safe and environmentally friendly. It is available as OPP film and CPP film and is ideal for hygienic food packaging. Available as flat film, half-tube film, and also as bags.

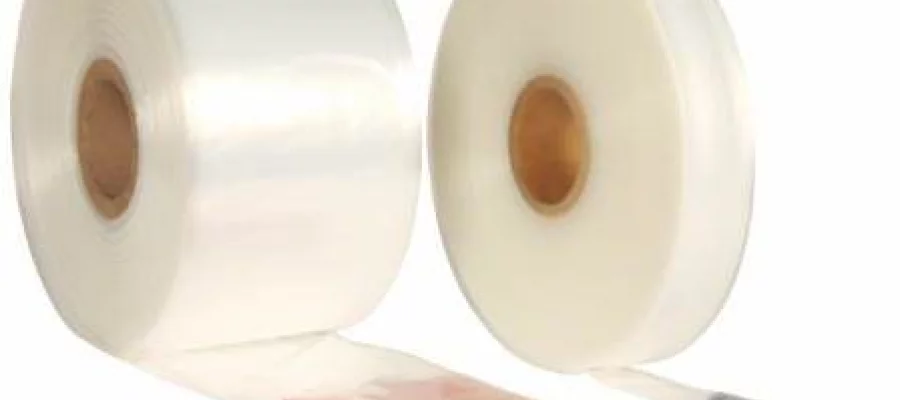

Castelli Film PE-Schlauchfolie mit hoher Reißfestigkeit

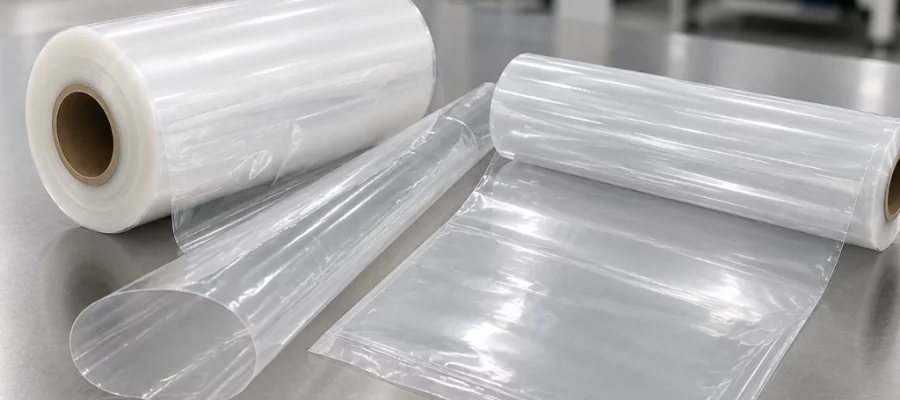

PE Tubular and Flat Film

Our PE films are transparent, food-safe and impress with their high tear resistance and excellent weldability. This makes them ideal for manufacturing flat bags and therefore the perfect protective packaging.

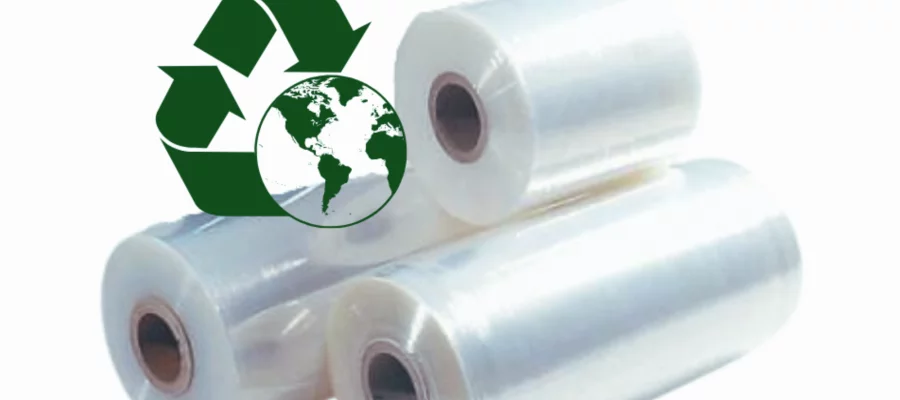

PCR Recycling Films

Our environmentally friendly PCR films are made from recycled plastic from discarded materials. They are versatile, suitable for almost any application, and available as flat film and half-tube film.
