Bundling Machines

Our all-automatic bundling machines offer both, flexible and durable solutions for the bundling of Trays or beverage packs. Due to sensor-controlled workflow and permanently heated sealing, particularly long products such as panels can be packed in shrink film in fast cycles. The user-friendly control panel additionally facilitates an effective and easy handling. Our bundling machines are also compatible with all shrink tunnels.

Technical Details

Teflon-coated sealing blades, permanently heated
safety protection cover / emergency signal lamp
can be connected with a shrink tunnel
bundlings of one or more products possible (no restriction on product lengths)
simple touchscreen operation via color symbols
adjustable temperature control of the sealing knife
separately adjustable conveyor belt speeds for infeed and outfeed belt
solid and durable design due to steel frame construction

👁

Requests

Data Sheet

BP-6040D: Shrinking of paint buckets

BP-8040D: Shrinking of tins (with pusher)

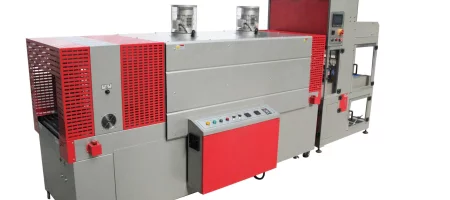

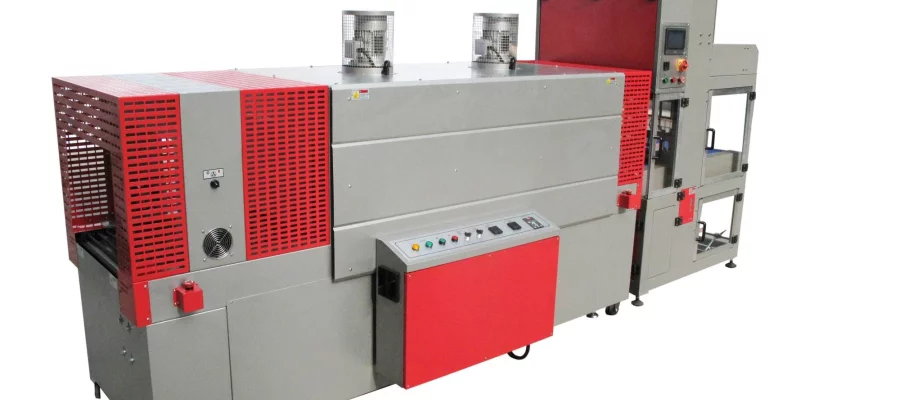

BP-10040 with shrink tunnel: Shrinking of boilers

BP-12540 with shrink tunnel: Shrinking of furniture

Different Models:

BP-6040D

Model	BP-6040D
Usable films:	POF / PE
Maximum film thickness:	120 my
Maximum sealing widths:	600 mm
Maximum product height:	350 mm
Maximum reel lengths (L x Ø):	600 x Ø 300 mm
Machine size (L x W x H):	1339 x 1070 x 2137 mm
Connected load (maximum):	1,5 kW
Supply voltage:	400 V / 3-phases
Machine weight (approx.):	460 kg
Conveyor belt speed:	12 m / minute
Air pressure (dry air):	optional / 5,5 bar
Sealing process:	up to 20 pieces / minute*

BP-8040D

Model	BP-8040D
Usable films:	POF / PE
Maximum film thickness:	120 my
Maximum sealing width:	800 mm
Maximum product height:	400 mm
Maximum reel length (L x Ø):	800 x Ø 300 mm
Machine size (L x W x H):	1339 x 1270 x 2137 mm
Connected load (maximum):	2,0 kW
Supply voltage:	400 V / 3-phases
Machine weight (approx.):	530 kg
Conveyor belt speed:	12 m / minute
Air pressure (dry air):	optional / 5,5 bar
Sealing process:	up to 20 pieces / minute*

BP-10040D

Model	BP-10040D
Usable films:	POF / PE
Maximum film thickness:	120 my
Maximum sealing width:	1000 mm
Maximum product height:	400 mm
Maximum reel length (L x Ø):	1000 x Ø 300 mm
Machine size (L x W x H):	1936 x 1470 x 2137 mm
Connected load (maximum):	2,5 kW
Supply voltage:	400 V / 3-phases
Machine weight (approx.):	750 kg
Conveyor belt speed:	12 m / minute
Air pressure (dry air):	optional / 5,5 bar
Sealing process:	up to 18 pieces / minute *

BP-12540D

Model	BP-12540D
Usable films:	POF / PE
Maximum film thickness:	120 my
Maximum sealing width:	1250 mm
Maximum product height:	400 mm
Maximum reel length (L x Ø):	1250 x Ø 300 mm
Machine size (L x W x H):	1936 x 1709 x 2137 mm
Connected load (maximum):	3,0 kW
Supply voltage:	400 V / 3-phases
Machine weight (approx.):	950 kg
Conveyor belt speed:	12 m / minute
Air pressure (dry air):	optional / 6,0 bar
Sealing process:	up to 16 pieces / minute*

*The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling.

Additional Options

Further technical data:

easiest operation through digital program selection
solid and durable design due to steel frame construction
sensor-controlled workflow
permanently heated sealing
no restrictions regarding product length
compatible to all shrink tunnels
CE-identification

Further options:

adjustable conveyor belt for feeding
control panel with touch screen
kissing belt function (particularly for small products)

Convince yourself of our Bundling Machines and make an appointment today with our showroom or with one of our reference customers at +492235 - 47048 - 0 or at info_at_tbs-pack.de.

Optional Accessories

Castelli® Polyolefin-Feinschrumpffolie (POF) für Produktverpackungen

Polyolefin Fine Shrink Film

Castelli® Polyolefin Fine Shrink Film (POF) from the manufacturer for food, cosmetics, industrial and consumer goods packaging. Highly transparent, food-safe, recyclable and individually tailored to your packaging requirements.

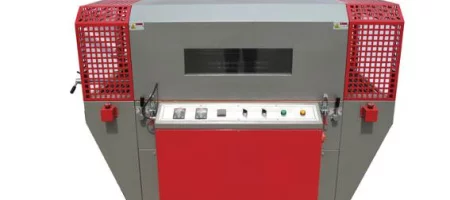

STPE-Line (PE Shrink Tunnel)
