Shrink Tunnel (STPE-Line)
The specialist for PE shrink films

With tbs-pack's STPE-line, challenging shrink packs can be flexibly produced with all shrink films (POF, PE). Our PE shrink tunnels are equipped, as standard, with heat-resistant transport rods and a cooling fan at the tunnel exit. Thanks to the continuously adjustable conveyor belt, the STPE-line is designed for high processing cycles with semi- or all-automatic film sealing machines. Modern thermal insulation and energy recovery lead to efficient energy conservation.

Requests

Data Sheet

Technical Details

continuous adjustment of temperature and conveyor belt speed
energy-saving solid-state-relais-control (SSR)
safety covers for the ongoing operation
integrated film cooling fan (standard)
separately adjustable heating chambers
cabinet with integrated control panel
isolated infeed- and outfeed curtains for lower heat loss

Additional Options

pressure roller for light products
pressure brushes at the tunnel exit
Teflon conveyor belt as grid
stainless steel conveyor belt as grid
special measurements on request

👁

STPE-100040H with BP-150040:Shrinking of boilers

STPE-100040H with WSG-100120: Shrinking of pneumatic parts

STPE-6040 with BP-6040D2: Shrinking of preserves

STPE-6040H with BP-6040: Shrinking of wooden plates

Different Models:

STPE-6040

Model	STPE-6040
Tunnel bonnet (L x W x H):	1200 x 600 x 400 mm
Maximum product dimensions (W x H):	550 x 380 mm
Machine size (L x W x H):	2800 x 970 x 1600 mm
Conveyor belt speed:	15m / minute
Connected load (maximum):	12,0 kW
Supply voltage:	400 V / 3-phases
Machine weight (approx.):	420 kg

STPE-6040H

Model	STPE-6040H
Tunnel bonnet (L x W x H):	1200 x 600 x 400 mm
Maximum product dimensions (W x H):	550 x 380 mm
Machine size (L x W x H):	2800 x 970 x 1600 mm
Conveyor belt speed:	20m / minute
Connected load (maximum):	18,0 kW
Supply voltage:	400 V / 3-phases
Machine weight (approx.):	600 kg

STPE-8040

Model	STPE-8040
Tunnel bonnet (L x W x H):	1800 x 800 x 400 mm
Maximum product dimensions (W x H):	750 x 380 mm
Machine size (L x W x H):	2800 x 1170 x 1600 mm
Conveyor belt speed:	20m / minute
Connected load (maximum)	21,0 kW
Supply voltage:	400 V / 3-phases
Machine weight (approx.):	850 kg

STPE-10040

Model	STPE-10040
Tunnel bonnet (L x W x H):	1800 x 1000 x 400 mm
Maximum product dimensions (W x H):	950 x 350 mm
Machine size (L x W x H):	2800 x 1370 x 1600 mm
Conveyor belt speed:	20m / minute
Connected load (maximum):	30,0 kW
Supply voltage:	400 V / 3-phases
Machine weight (approx.):	1000 kg

STPE-12540

Model	STPE-12540
Tunnel bonnet (L x W x H):	1800 x 1250 x 400 mm
Maximum product dimensions (W x H):	1250 x 350 mm
Machine size (L x W x H):	2800 x 1620 x 1600 mm
Conveyor belt speed:	20m / minute
Connected load (maximum):	30,0 kW
Supply voltage:	400 V / 3-phases
Machine weight (approx.):	1200 kg

* It is not possible to combine all maximum dimensions

** The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling.

Convince yourself of our Shrink Tunnels and make an appointment today with our showroom or with one of our reference customers at +492235 - 47048 - 0 or at info_at_tbs-pack.de.

Optional Accessories

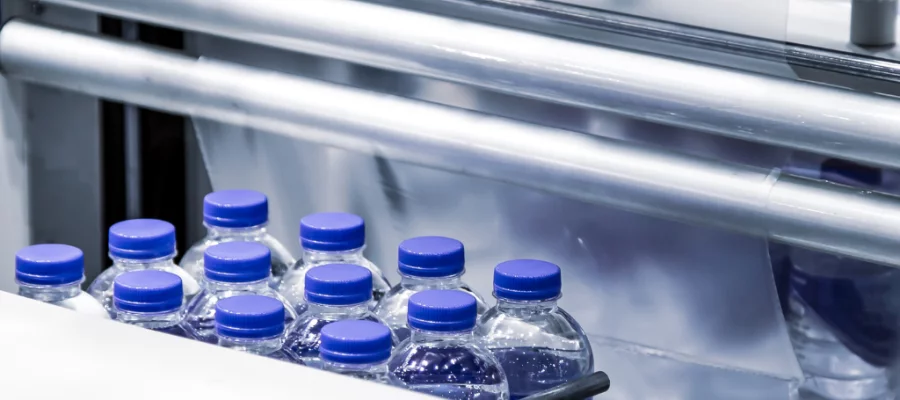

Getränke im Tray verpackt mit Polyolefin Feinschrumpffolie
