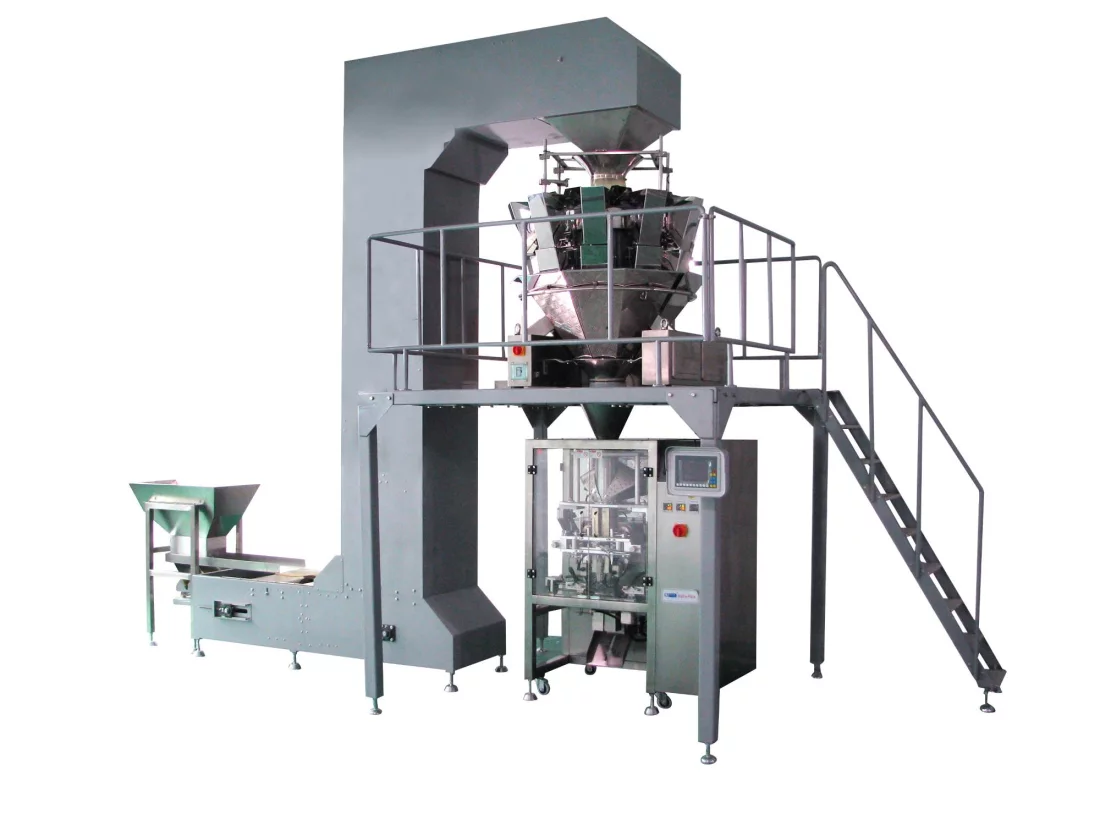

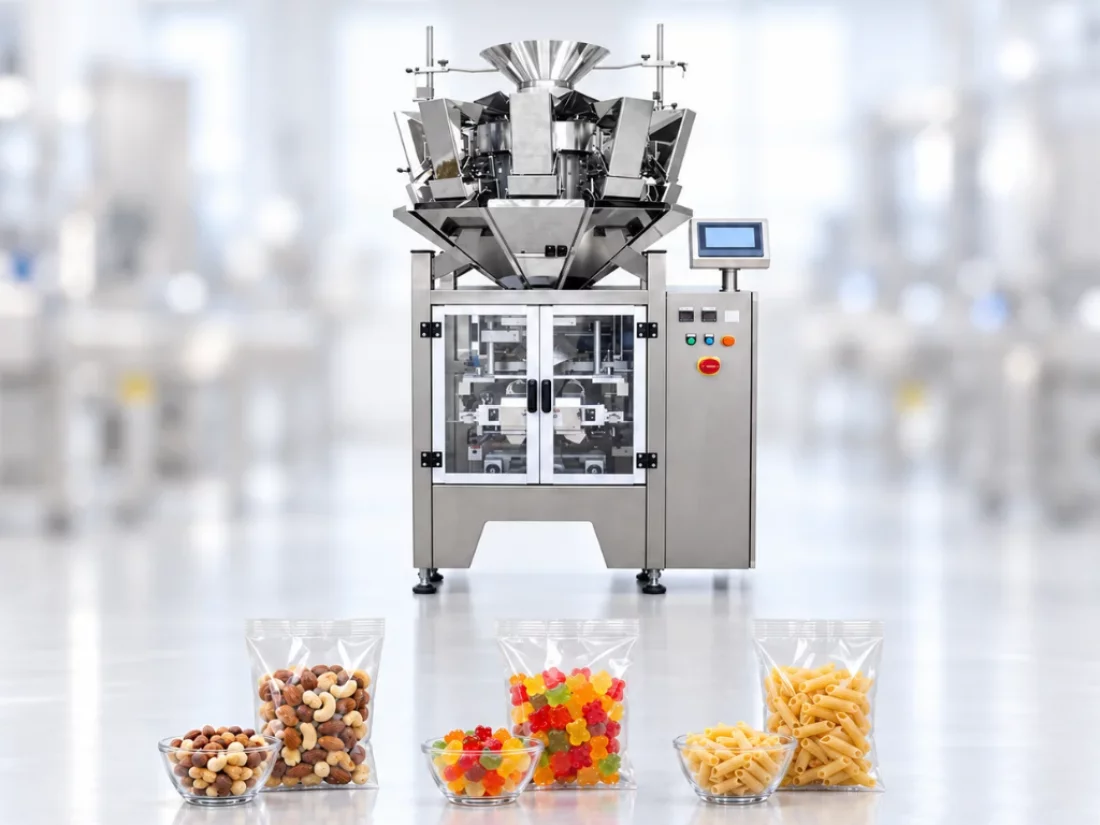

Our multihead weigher enables automatic and precise dosing of defined product quantities for downstream packaging processes. Multiple weighing hoppers measure individual portions and combine them to achieve the required target weight as accurately as possible.
The multihead weigher is suitable for a wide range of free-flowing and piece goods, including confectionery, snacks, dried fruit, nuts, cereals, frozen products and vegetables, as well as selected non-food products such as screws and other small parts.

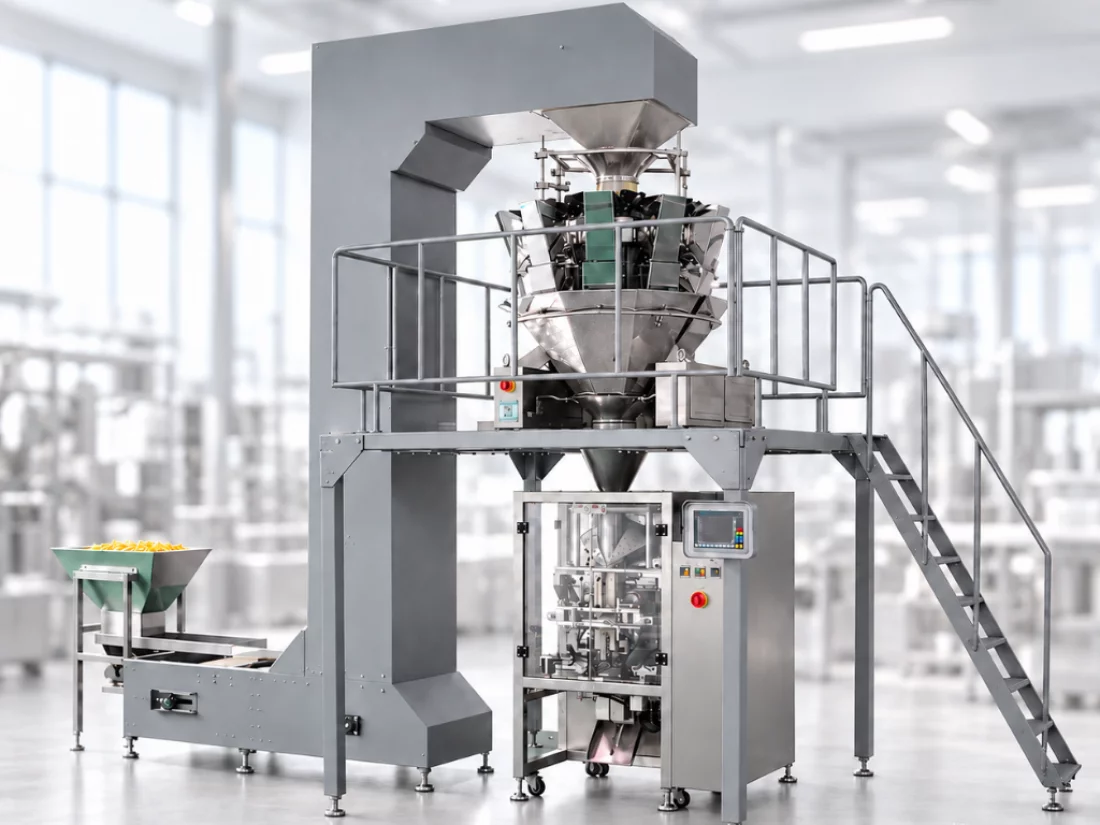

Combined with vertical form fill seal machines, premade pouch packaging machines and other filling and packaging systems, the multihead weigher can be integrated into an automated process from dosing to the finished package.
A multihead weigher distributes the product across multiple weighing hoppers. Each hopper measures an individual portion of the product. The control system then calculates the combination of partial weights that comes closest to the predefined target weight.
The selected weighing hoppers open and discharge the combined product quantity to the downstream packaging machine. The next weighing cycle then begins.
This combination weighing principle enables different products to be dosed quickly and precisely before being transferred to an automated packaging process.
Looking for a multihead weigher or planning to add an automatic dosing system to your existing packaging line?
We help you select the appropriate solution based on your product, target weight, required throughput and downstream packaging machine.
Contact us on +49 - 2235-79479-0 or by email at info_at_alphapack.de. We look forward to optimising your packaging line.

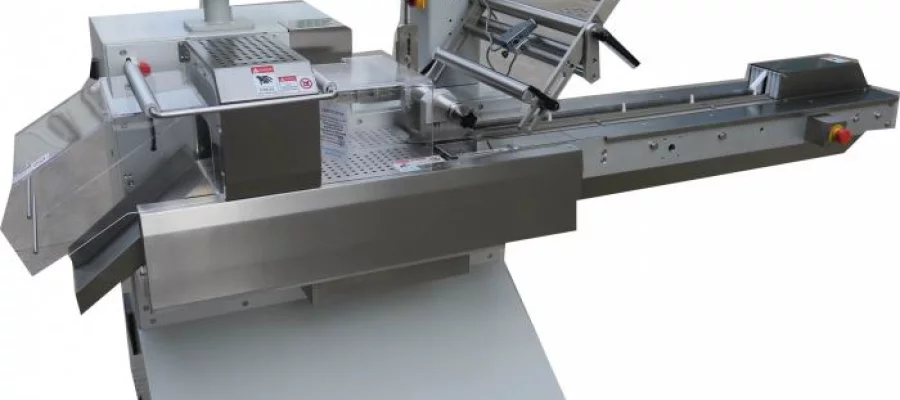

Flowpack & Pillow Bag Machines
Packaging machines for a fast and fully automatic solution for packaging with polypropylene, polyolefin, cellophane and laminated films.

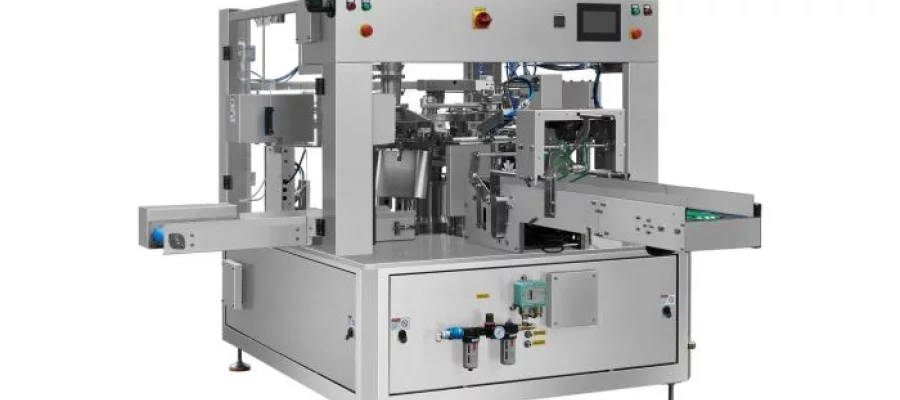

Filling and Sealing Machines for Bags and Bottles
Our filling and capping machines efficiently fill liquid or paste-like products into bottles, bags or containers. Ideal for food, cosmetics and non-food products – can be flexibly combined with other packaging technology.
A multihead weigher is a high-precision weighing system that weighs products on several weighing cells simultaneously. The ideal combination is calculated automatically so that the target weight is achieved with minimal deviation—quickly and efficiently.
Multihead weighers are particularly suitable for bulk products such as:
In combination with vertical or Doypack filling machines, they ensure a continuous, automated packaging process.
Multihead weighers are significantly faster and more accurate. They reduce product loss through precise weight combinations and enable higher cycle rates, especially for sensitive or expensive products.
Our models are made of stainless steel, are easy to clean, and feature a hygienic design with IP protection classes—ideal for use in the food industry. Versions for wet or dusty environments are also available.
Yes – multihead weighers can be flexibly combined with packaging machines, conveyor technology, checkweighers, and labeling systems. Seamless integration into fully automated lines is possible without any problems.
The achievable dosing accuracy of a multihead weigher depends on factors such as the product, target weight, flow characteristics and machine configuration. For the MHW-A9, an accuracy of 1–3 g is currently specified. Actual performance should therefore always be considered in relation to the specific application.
Yes. Multihead weighers can be combined with different packaging machines. Typical applications include automatic dosing of snacks, nuts, confectionery or dry products before packaging in premade pouches or bags produced on a vertical form fill seal machine.
Feeding equipment, multihead weigher and packaging machine can be integrated into a continuous automated packaging process.
